DJI Agras T50 Spraying & Spreading System Parts

Exploded Diagram

Spraying & Spreading SystemDiagram coming soon

Agras T50 Diagrams

Parts List

Nozzles & Sprinklers

Ref#PhotoPart NumberDescriptionPriceQtyAction

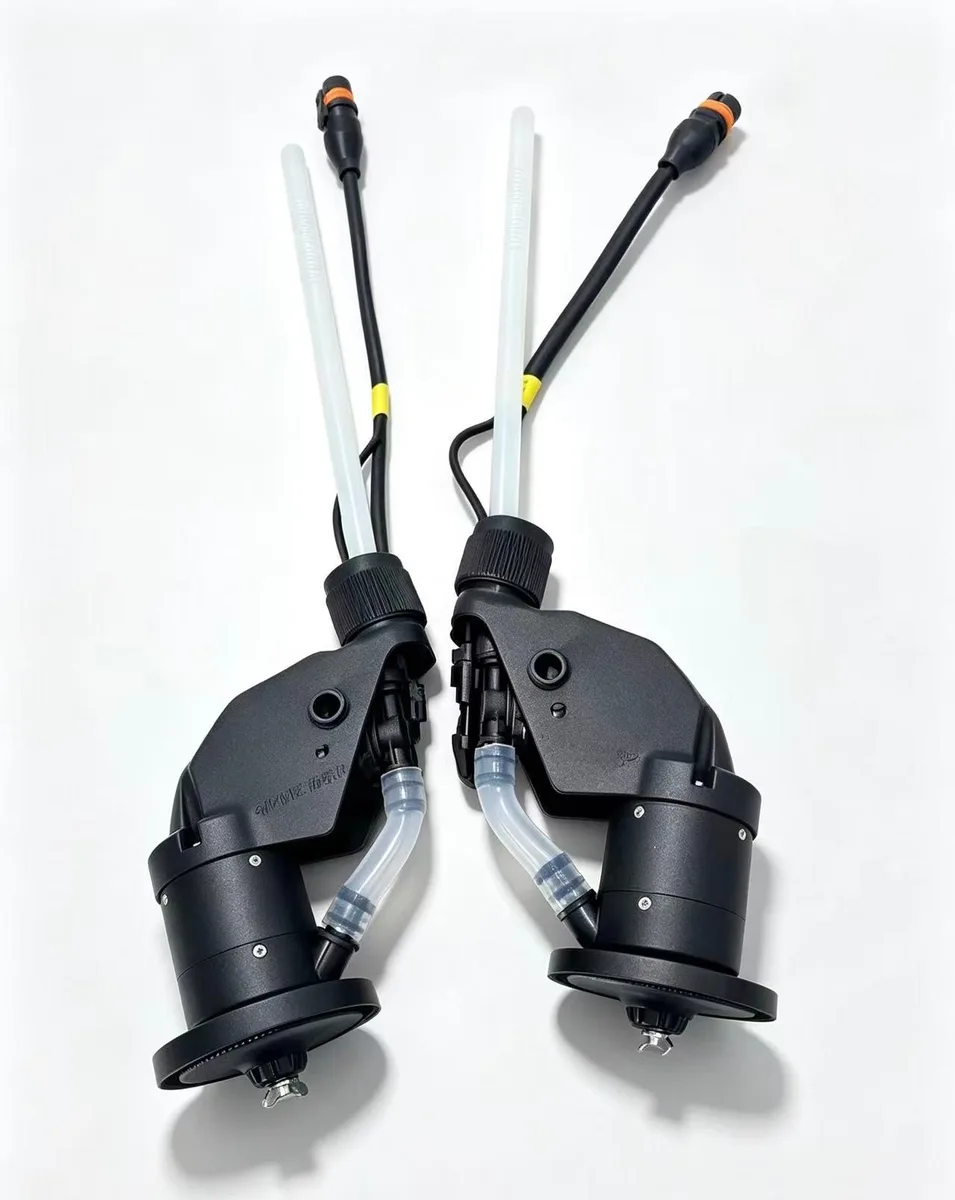

[1]DJI-T50-PMP-02 Front Centrifugal Sprinkler Kit Assembly with Motor for DJI Agras T50DJI-T50-PMP-02Front Centrifugal Sprinkler Kit Assembly with Motor for DJI Agras T50$179.00

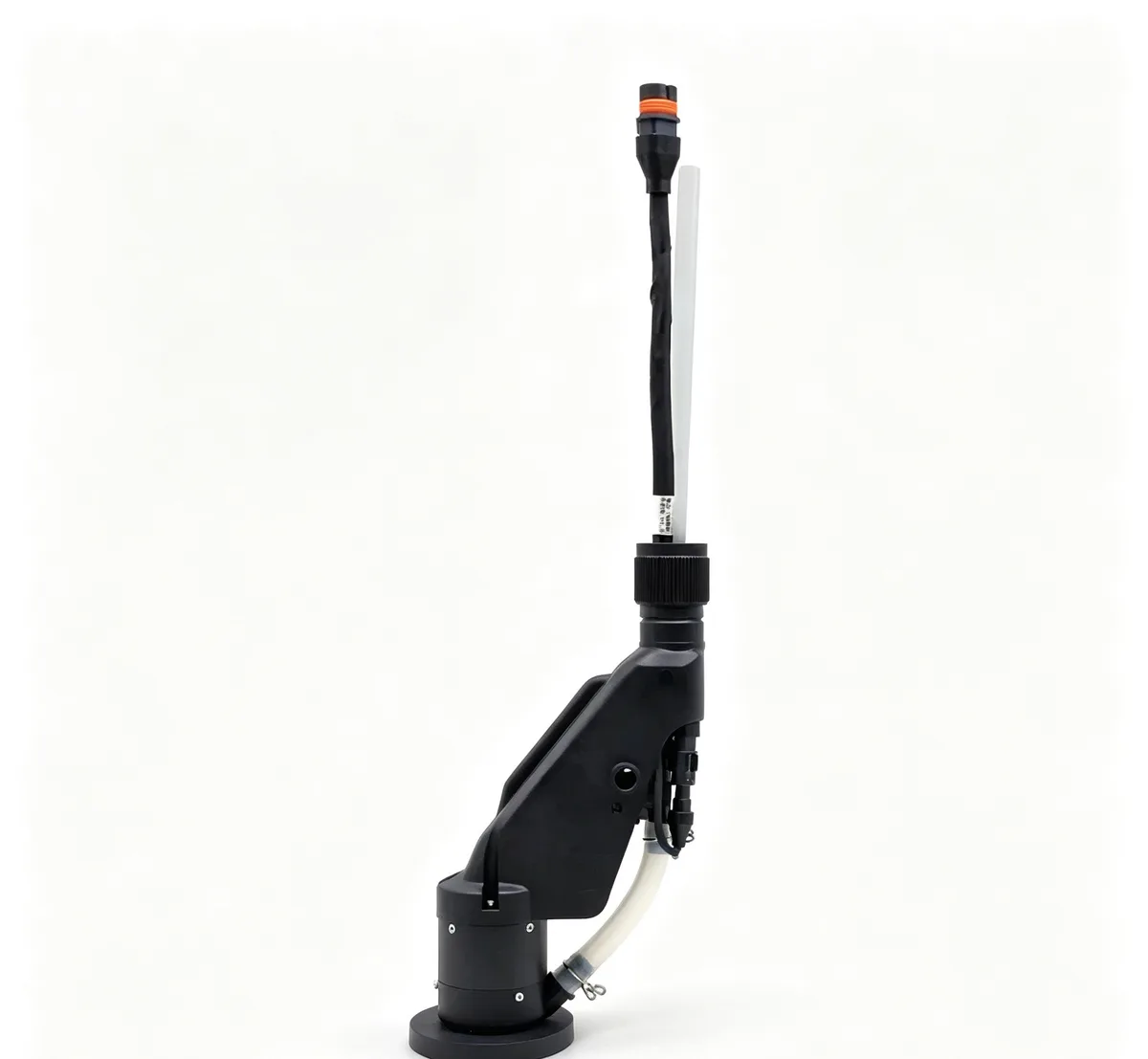

[11]TBD-T50-SPRINKLER-001 Rear Centrifugal Sprinkler Kit Assembly with Motor for DJI Agras T50—Rear Centrifugal Sprinkler Kit Assembly with Motor for DJI Agras T50$179.00

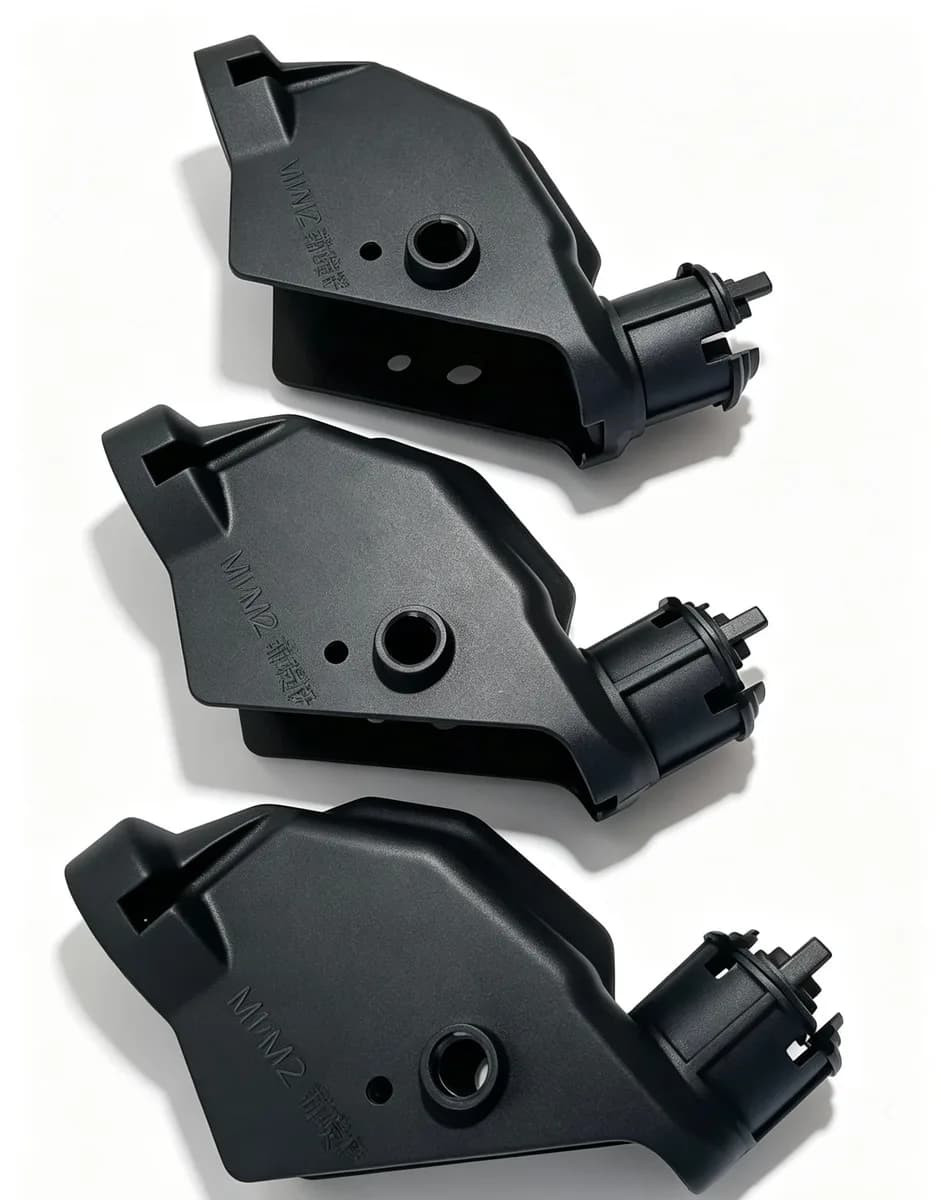

[3]TBD-T50-BOOM-001 Front Centrifugal Sprinkler Shell for DJI Agras T50—Front Centrifugal Sprinkler Shell for DJI Agras T50$7.90

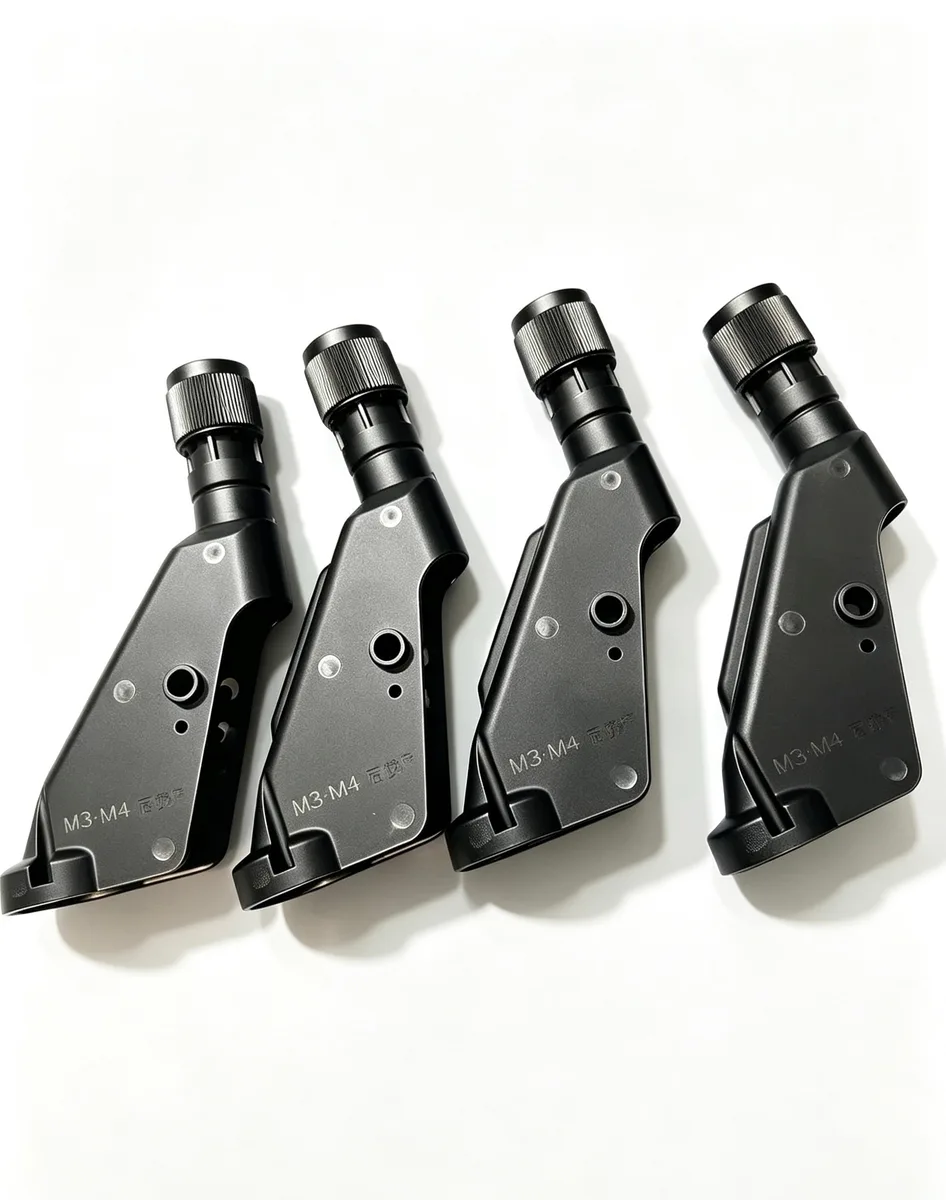

[10]TBD-T50-BOOM-002 Rear Centrifugal Sprinkler Shell for DJI Agras T50—Rear Centrifugal Sprinkler Shell for DJI Agras T50$7.90

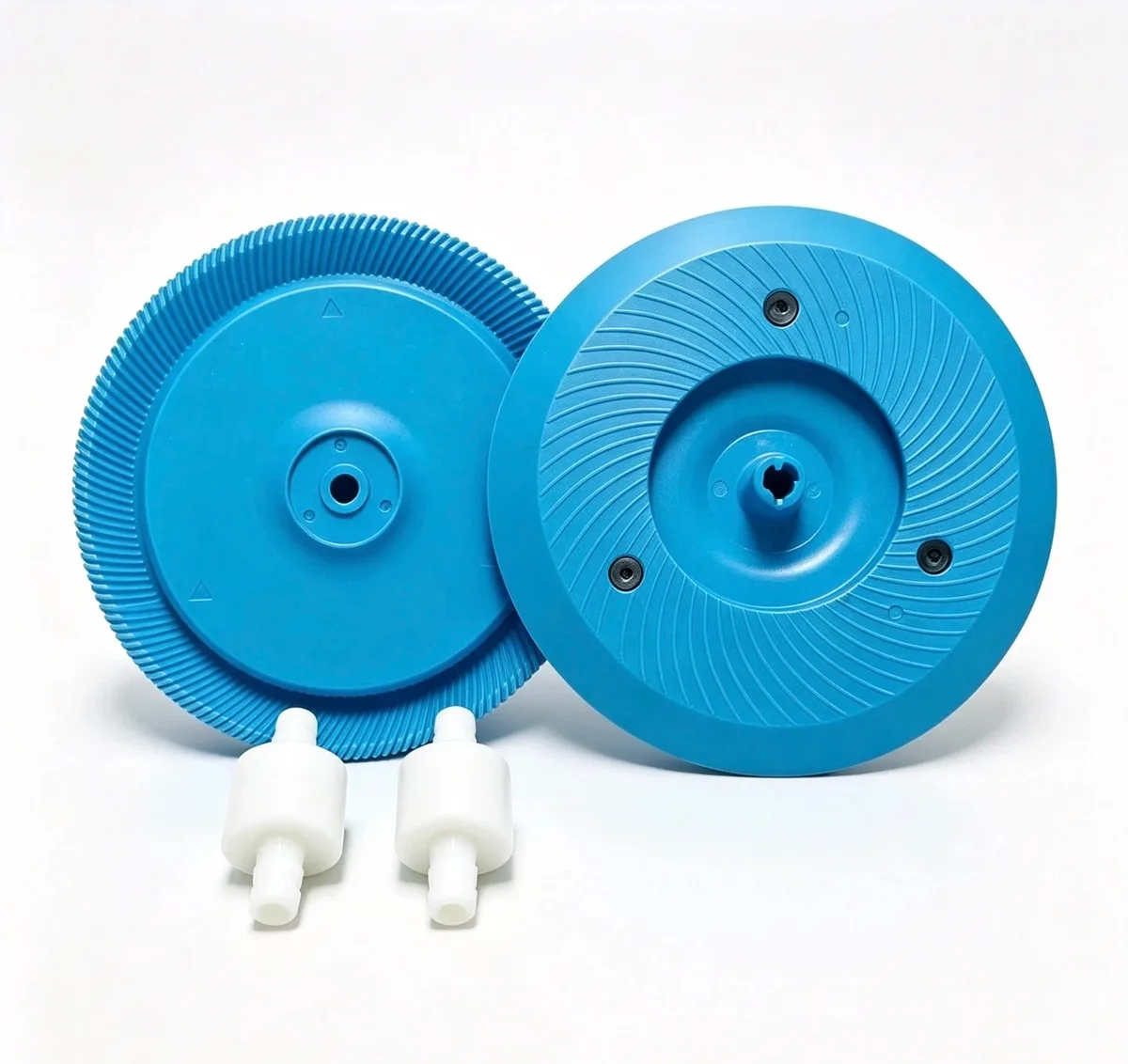

[4]TBD-T50-DISC-001 Enlarged Tornado Centrifugal Spray Disc for DJI Agras T50—Enlarged Tornado Centrifugal Spray Disc for DJI Agras T50Available in blue or black.$12.90

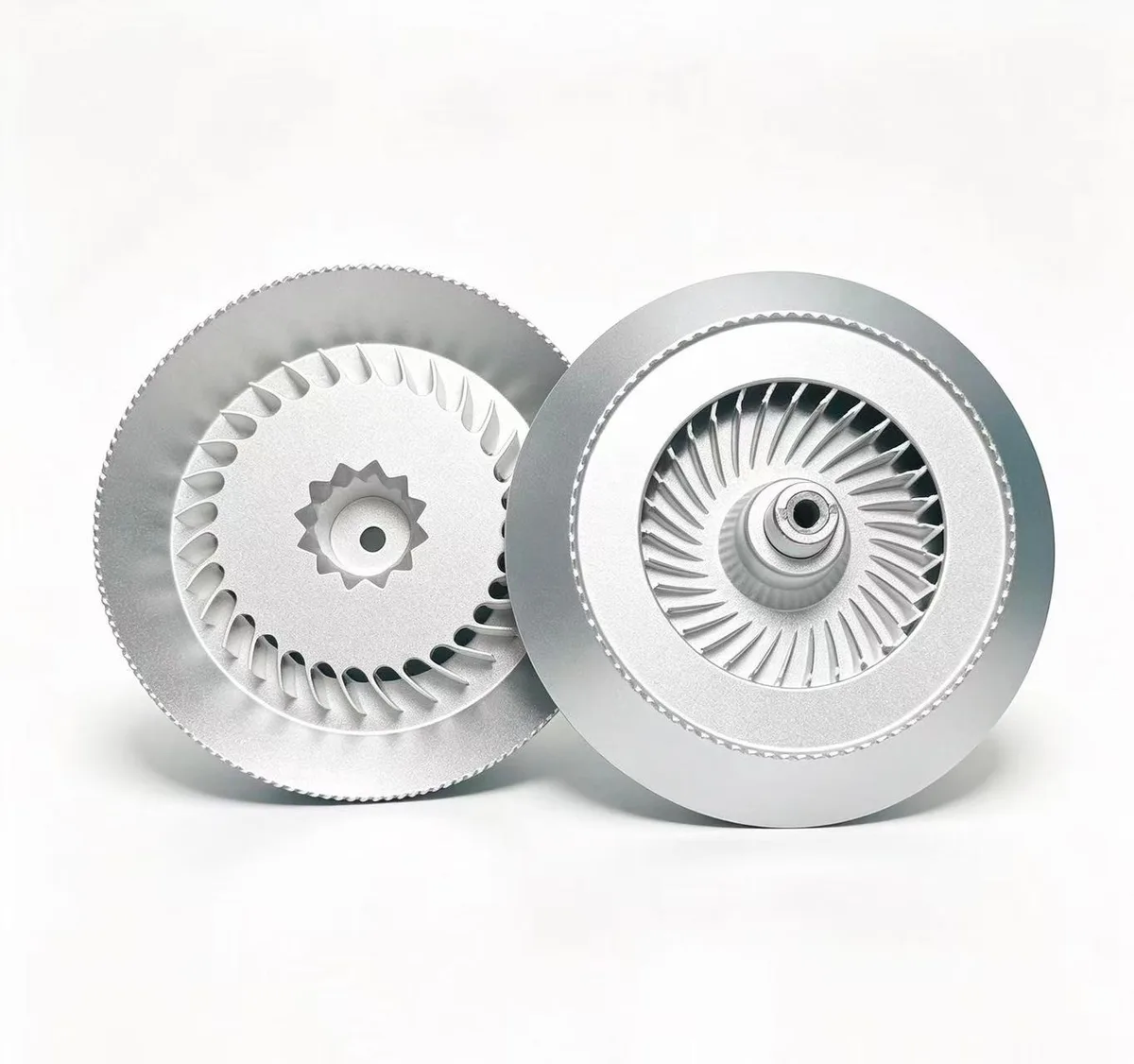

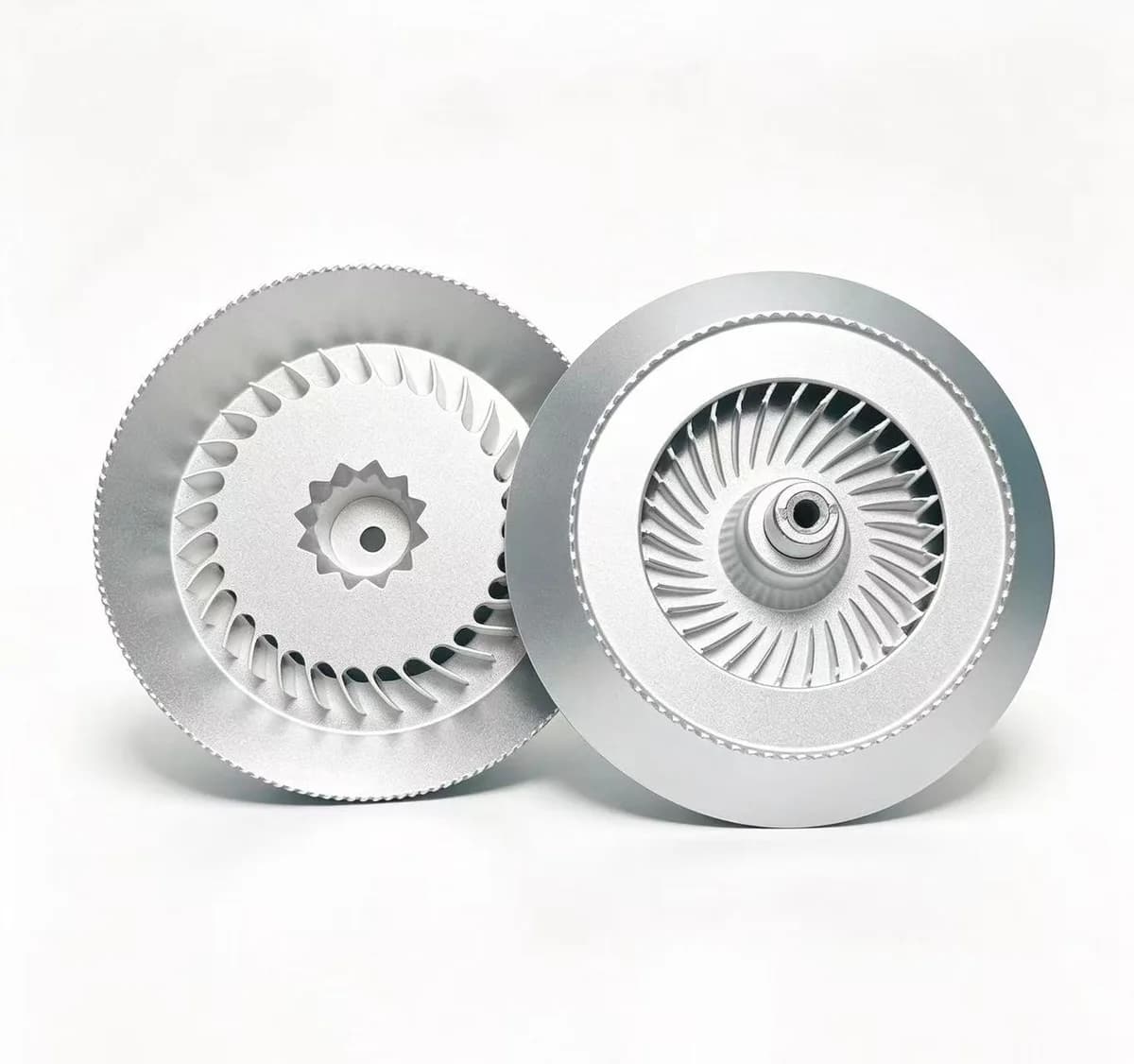

[9]TBD-T50-DISC-002 Aluminum Alloy Centrifugal Spray Disc for DJI Agras T50—Aluminum Alloy Centrifugal Spray Disc for DJI Agras T50Color options available.$25.90

Centrifugal Motors

Ref#PhotoPart NumberDescriptionPriceQtyAction

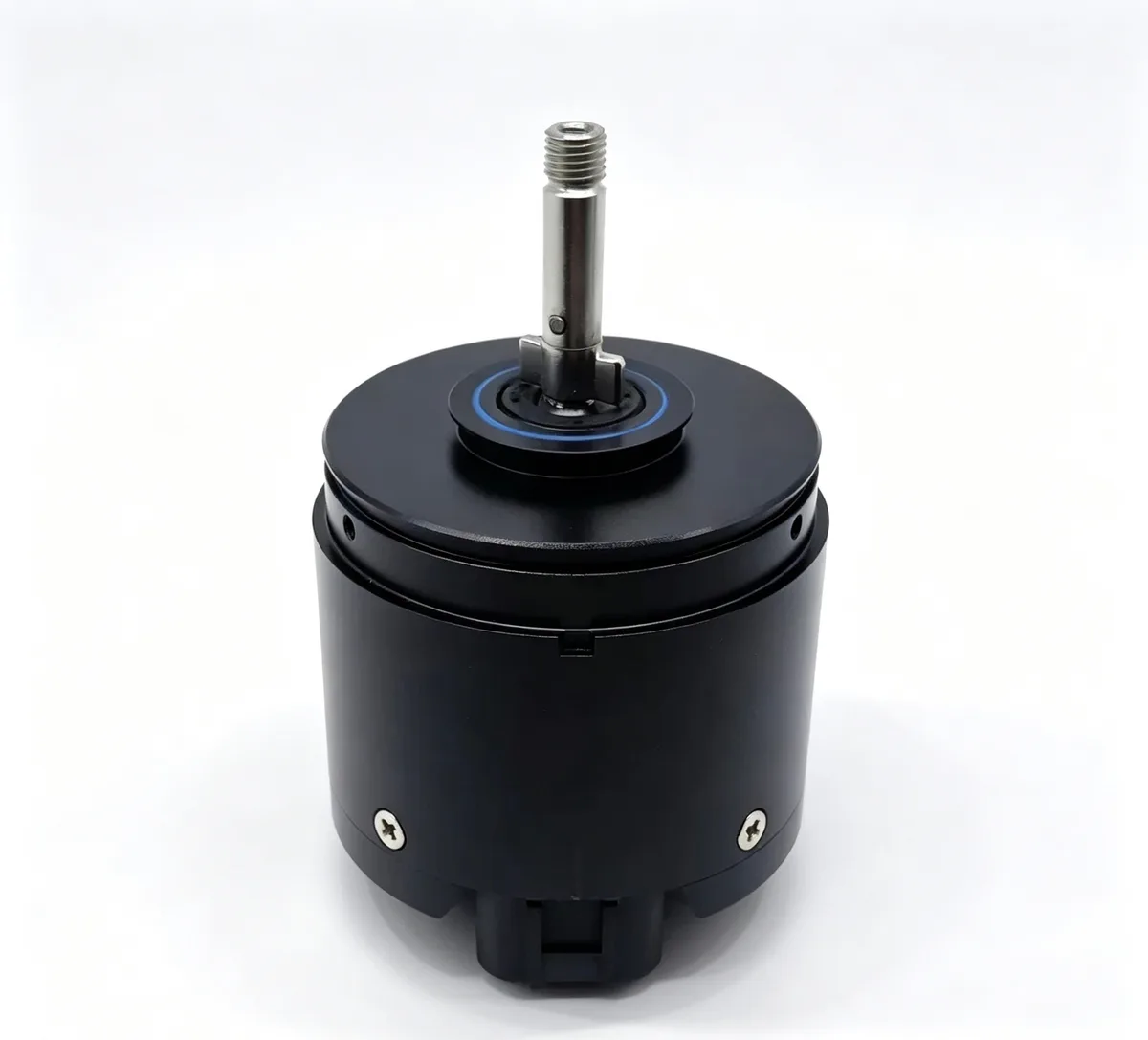

[5]TBD-T50-CMOTOR-001 Centrifugal Motor for DJI Agras T50—Centrifugal Motor for DJI Agras T50$95.00

Filters

Ref#PhotoPart NumberDescriptionPriceQtyAction

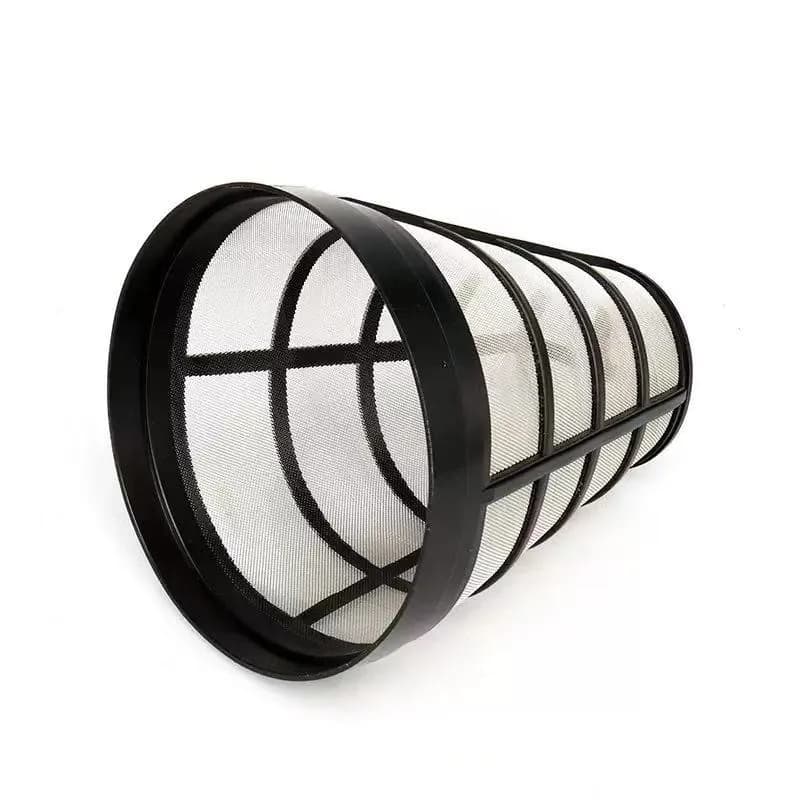

[6]TBD-T50-INFILTER-001 Tank Inlet Filter for DJI Agras T50—Tank Inlet Filter for DJI Agras T50$7.90

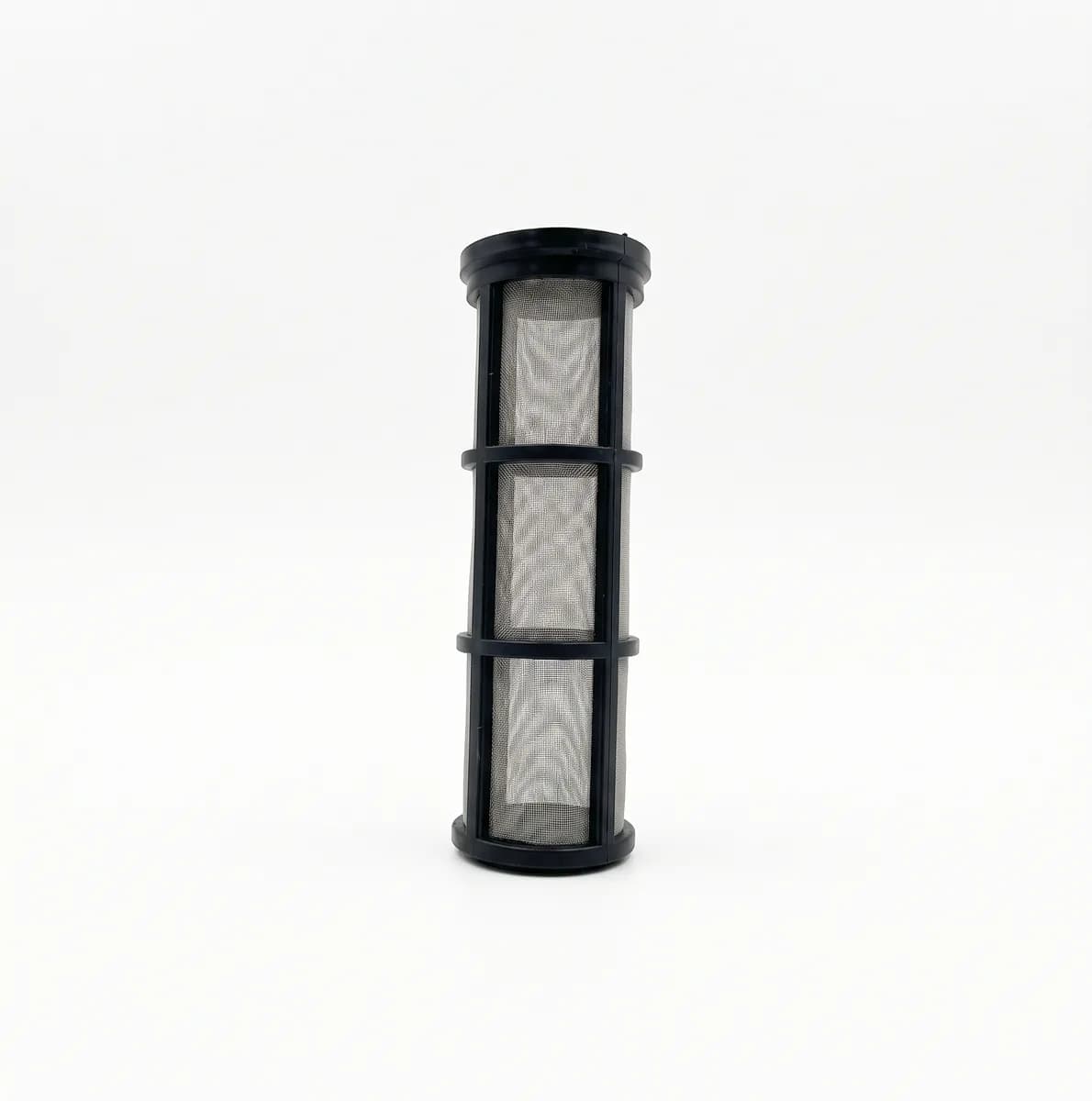

[7]TBD-T50-OUTFILTER-001 Tank Outlet Filter for DJI Agras T50—Tank Outlet Filter for DJI Agras T50$10.90

Spreader Parts

Ref#PhotoPart NumberDescriptionPriceQtyAction

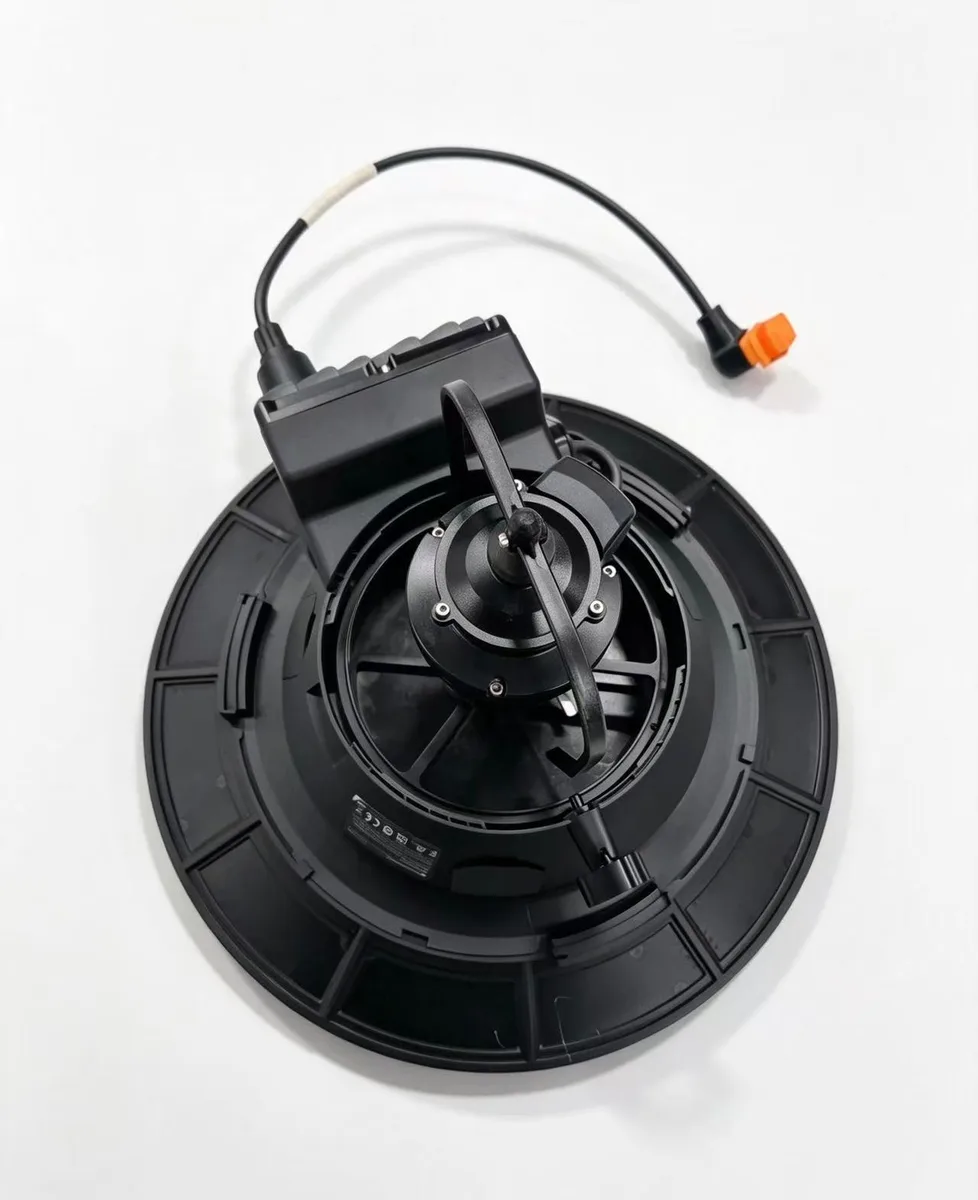

[8]TBD-T50-SPREADER-001 Spreader for DJI Agras T50—Spreader for DJI Agras T50$995.00

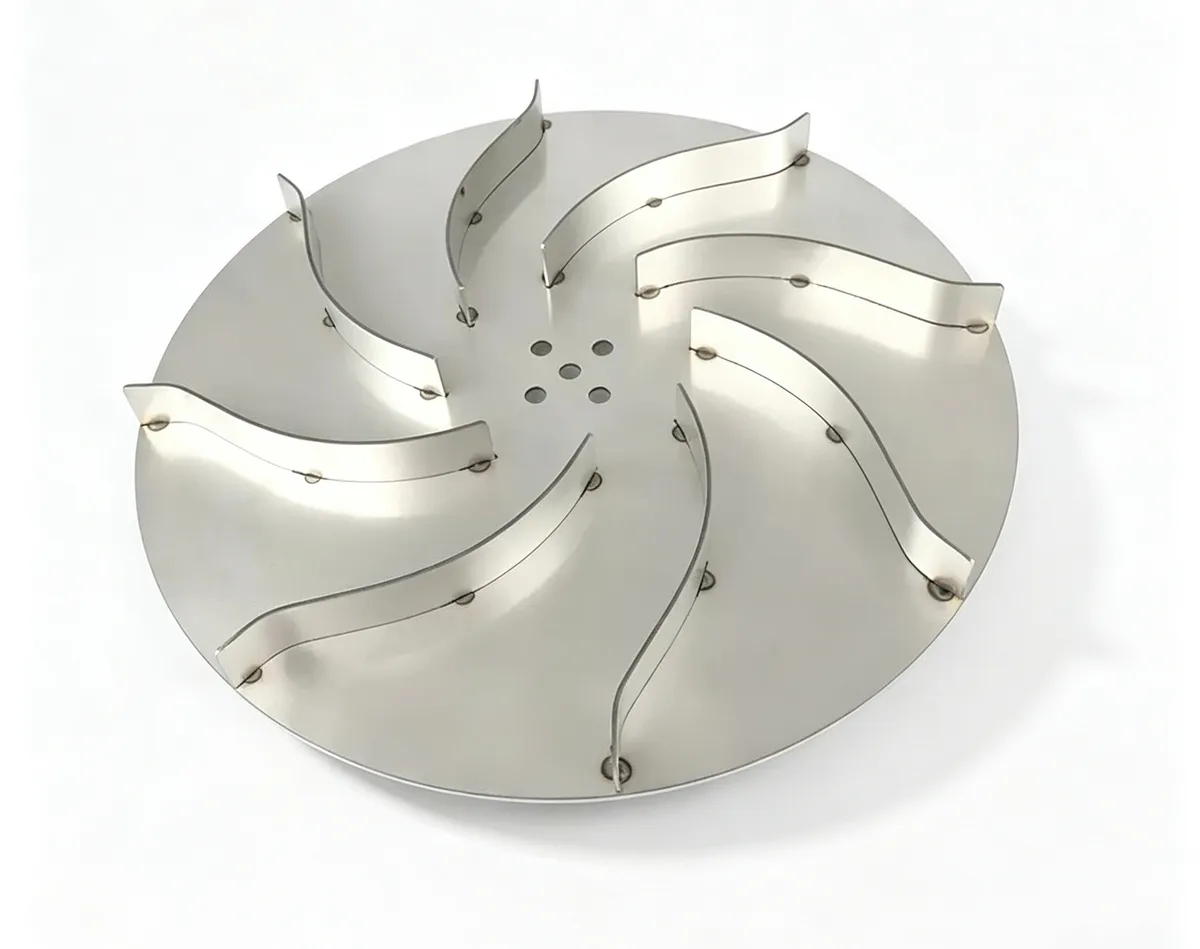

[12]TBD-T50-SDISK-001 Stainless Steel Spinner Disc for DJI Agras T50—Stainless Steel Spinner Disc for DJI Agras T50$29.90
