DJI Agras T40 Spraying & Spreading System Parts

Exploded Diagram

Spraying & Spreading SystemDiagram coming soon

Agras T40 Diagrams

Parts List

Nozzles & Sprinklers

Ref#PhotoPart NumberDescriptionPriceQtyAction

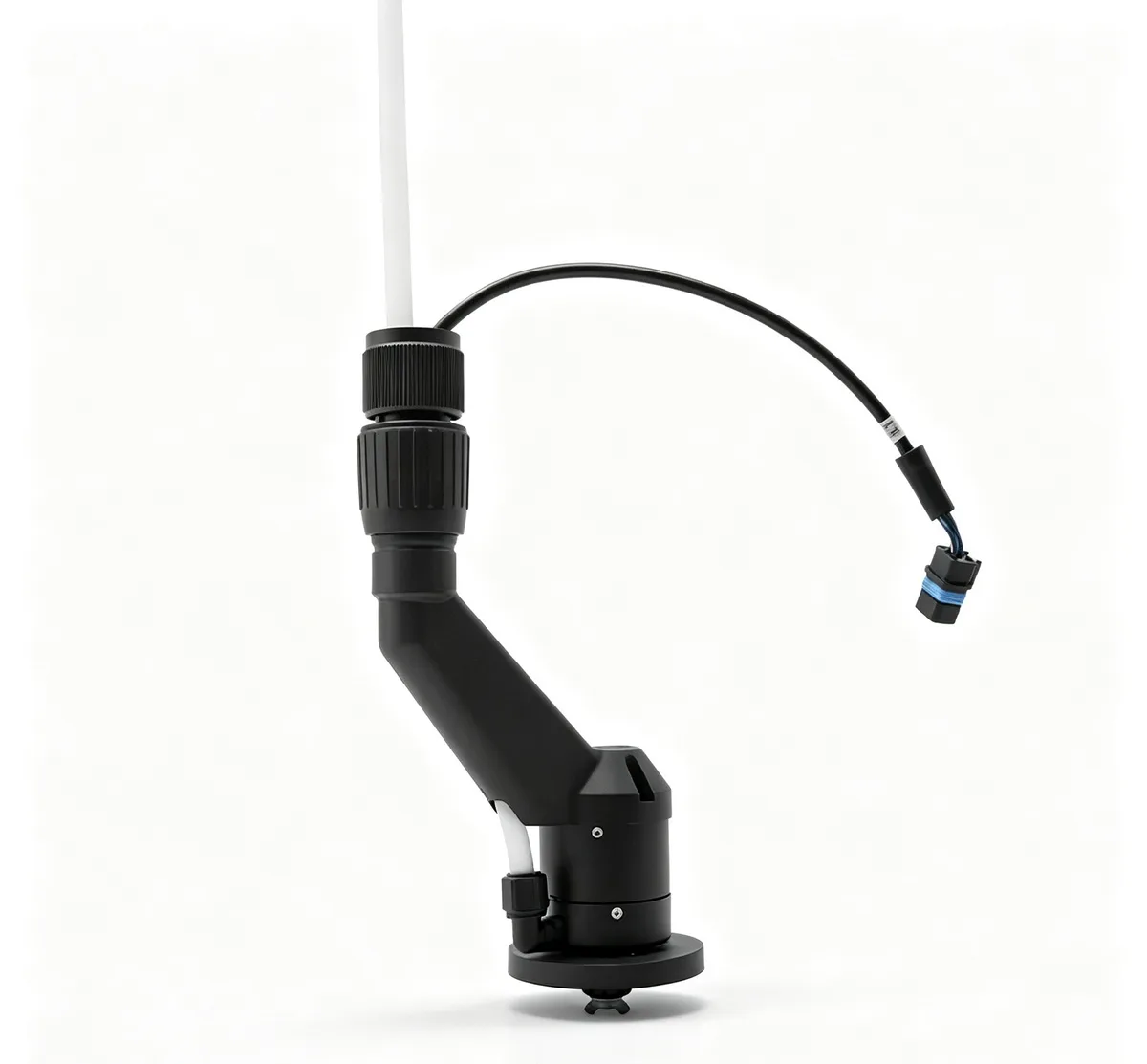

[1]TBD-T40-SPRINKLER-001 Centrifugal Sprinkler Kit Assembly with Motor for DJI Agras T40—Centrifugal Sprinkler Kit Assembly with Motor for DJI Agras T40$169.00

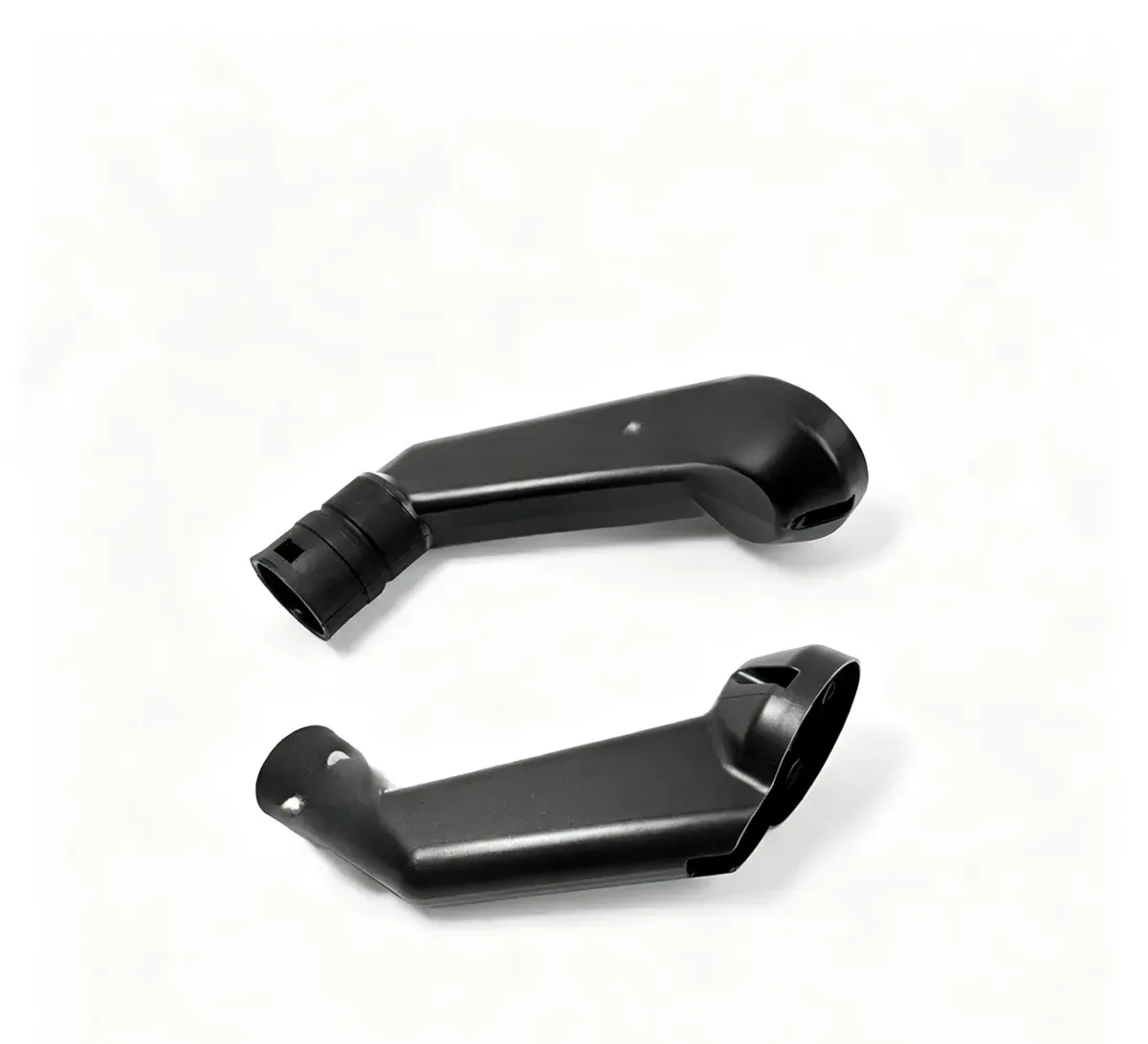

[2]TBD-T40-BOOM-001 Centrifugal Sprinkler Shell for DJI Agras T40—Centrifugal Sprinkler Shell for DJI Agras T40$7.90

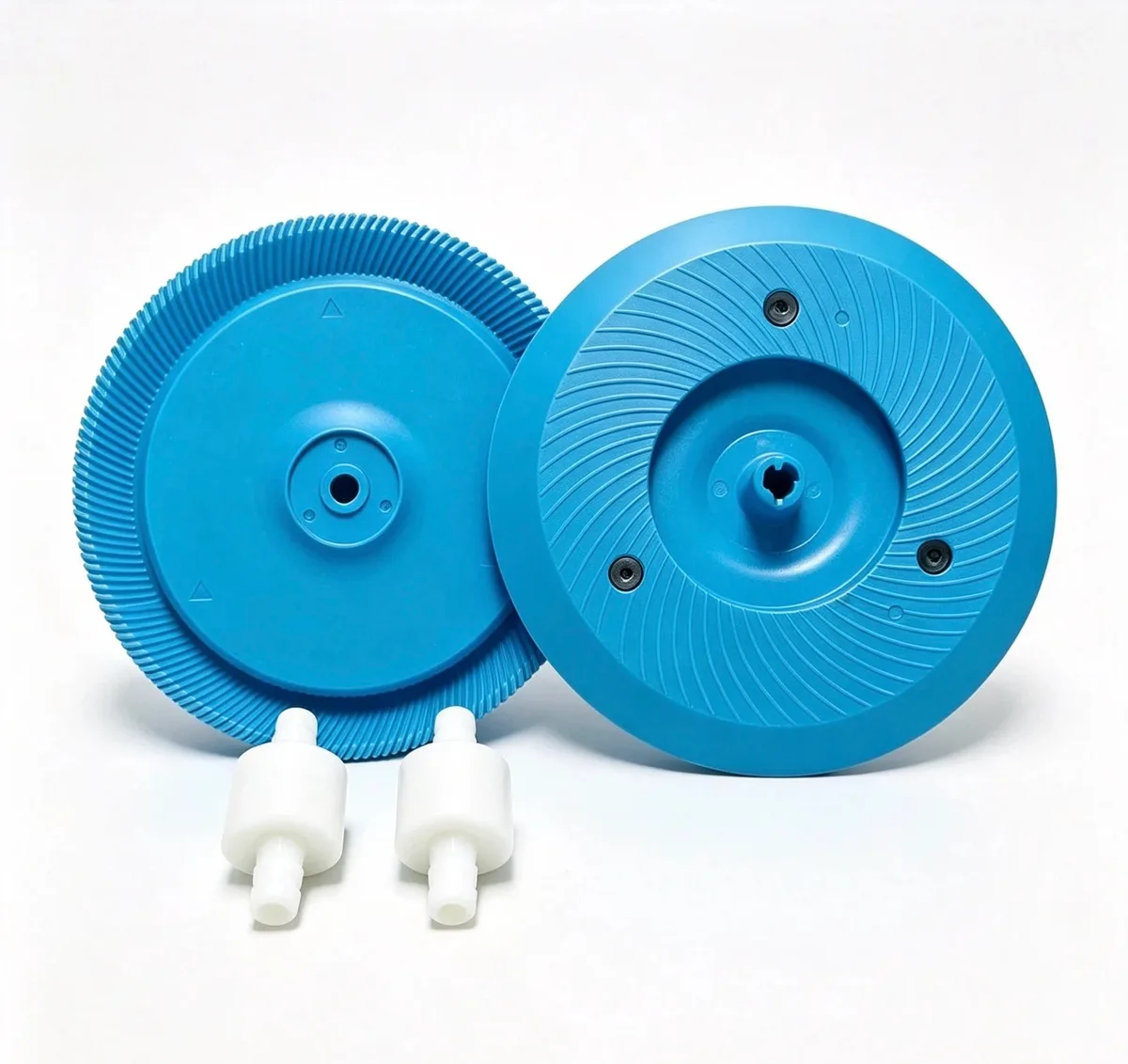

[3]TBD-T40-DISC-001 Enlarged Tornado Centrifugal Spray Disc for DJI Agras T40—Enlarged Tornado Centrifugal Spray Disc for DJI Agras T40Available in blue or black.$12.90

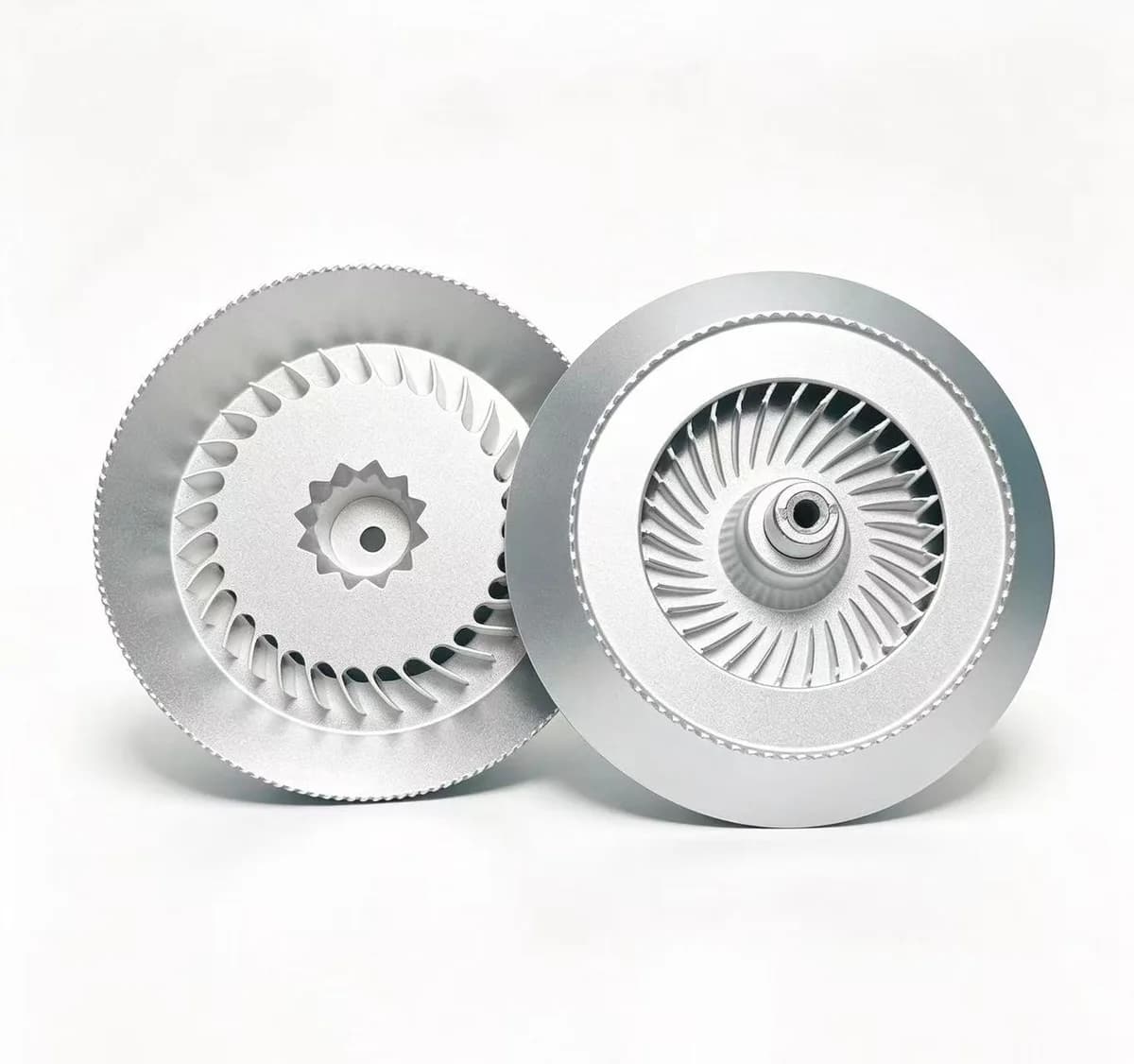

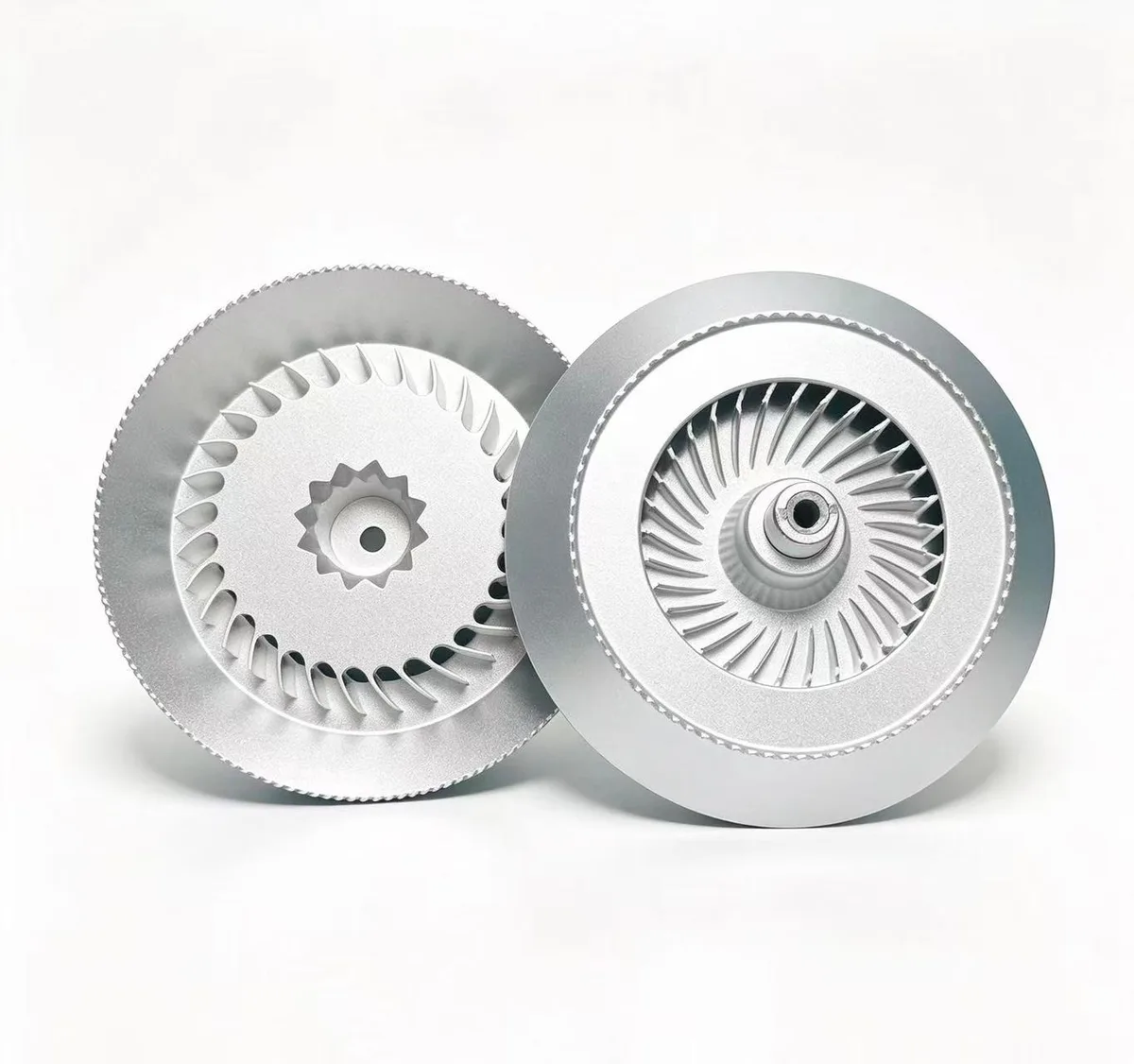

[8]TBD-T40-DISC-002 Aluminum Alloy Centrifugal Spray Disc for DJI Agras T40—Aluminum Alloy Centrifugal Spray Disc for DJI Agras T40Color options available.$25.90

Centrifugal Motors

Ref#PhotoPart NumberDescriptionPriceQtyAction

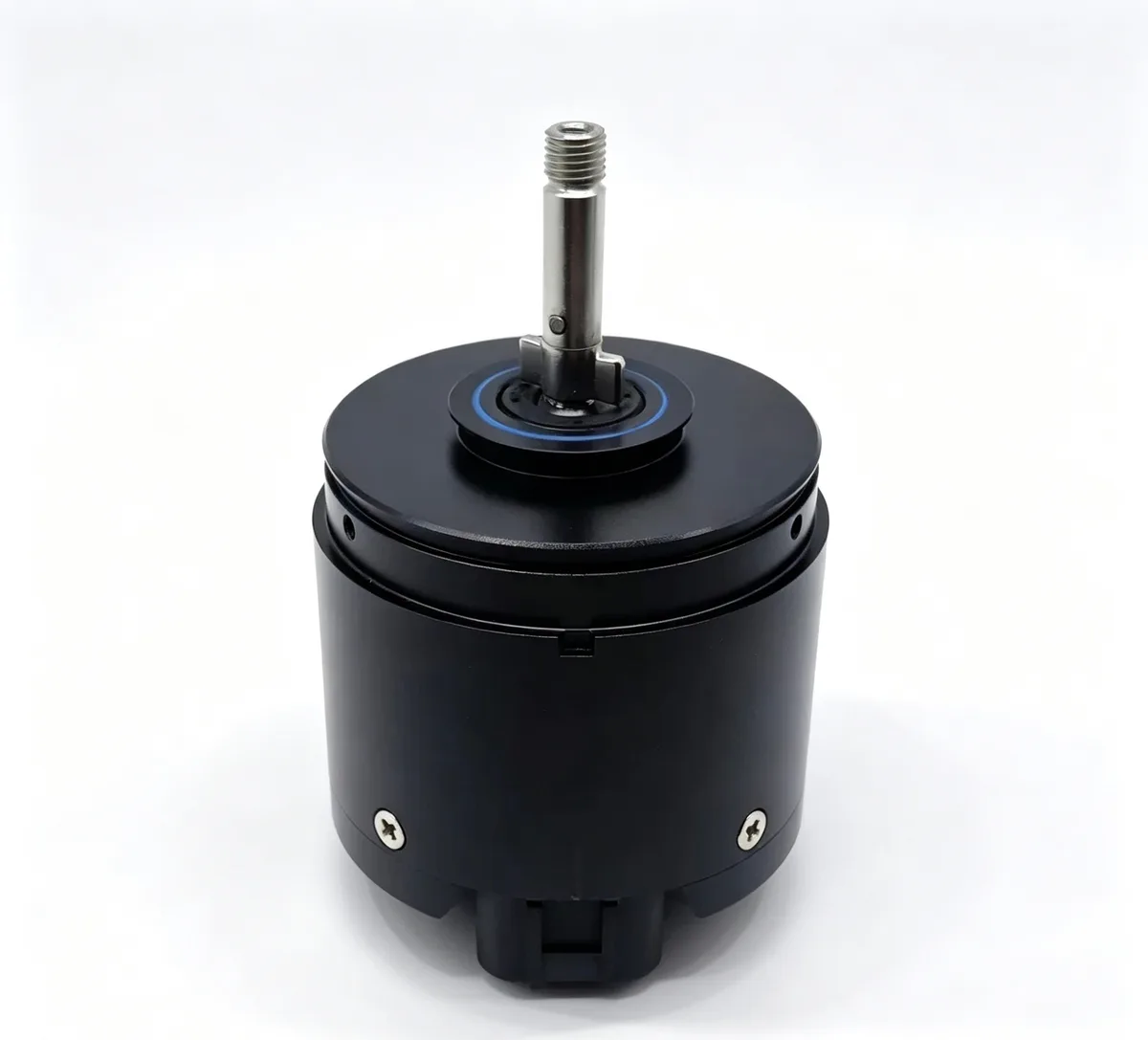

[4]TBD-T40-CMOTOR-001 Centrifugal Motor for DJI Agras T40—Centrifugal Motor for DJI Agras T40$85.00

Filters

Ref#PhotoPart NumberDescriptionPriceQtyAction

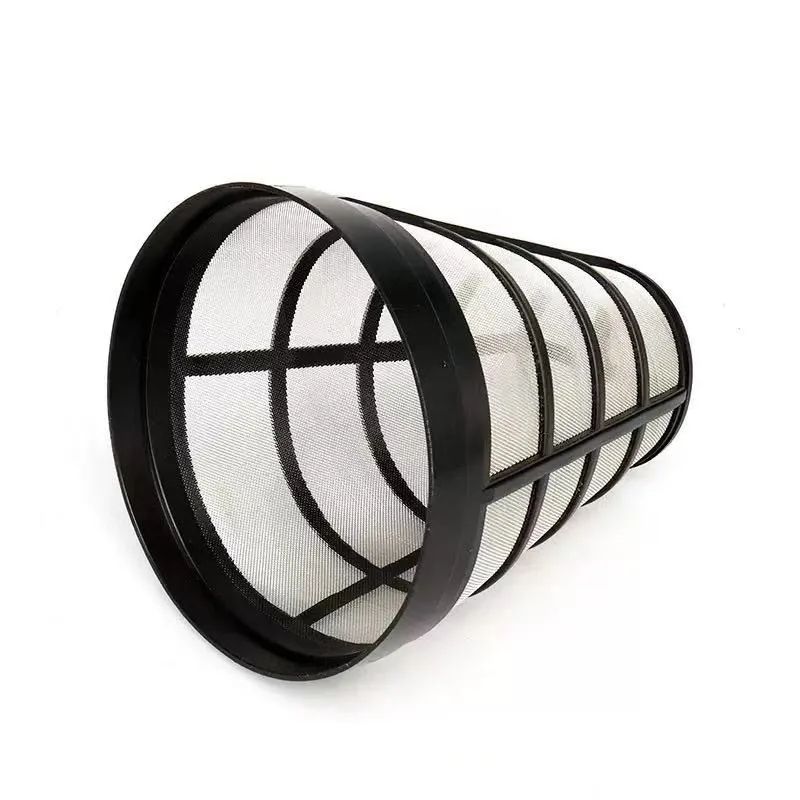

[5]TBD-T40-INFILTER-001 Tank Inlet Filter for DJI Agras T40—Tank Inlet Filter for DJI Agras T40$7.90

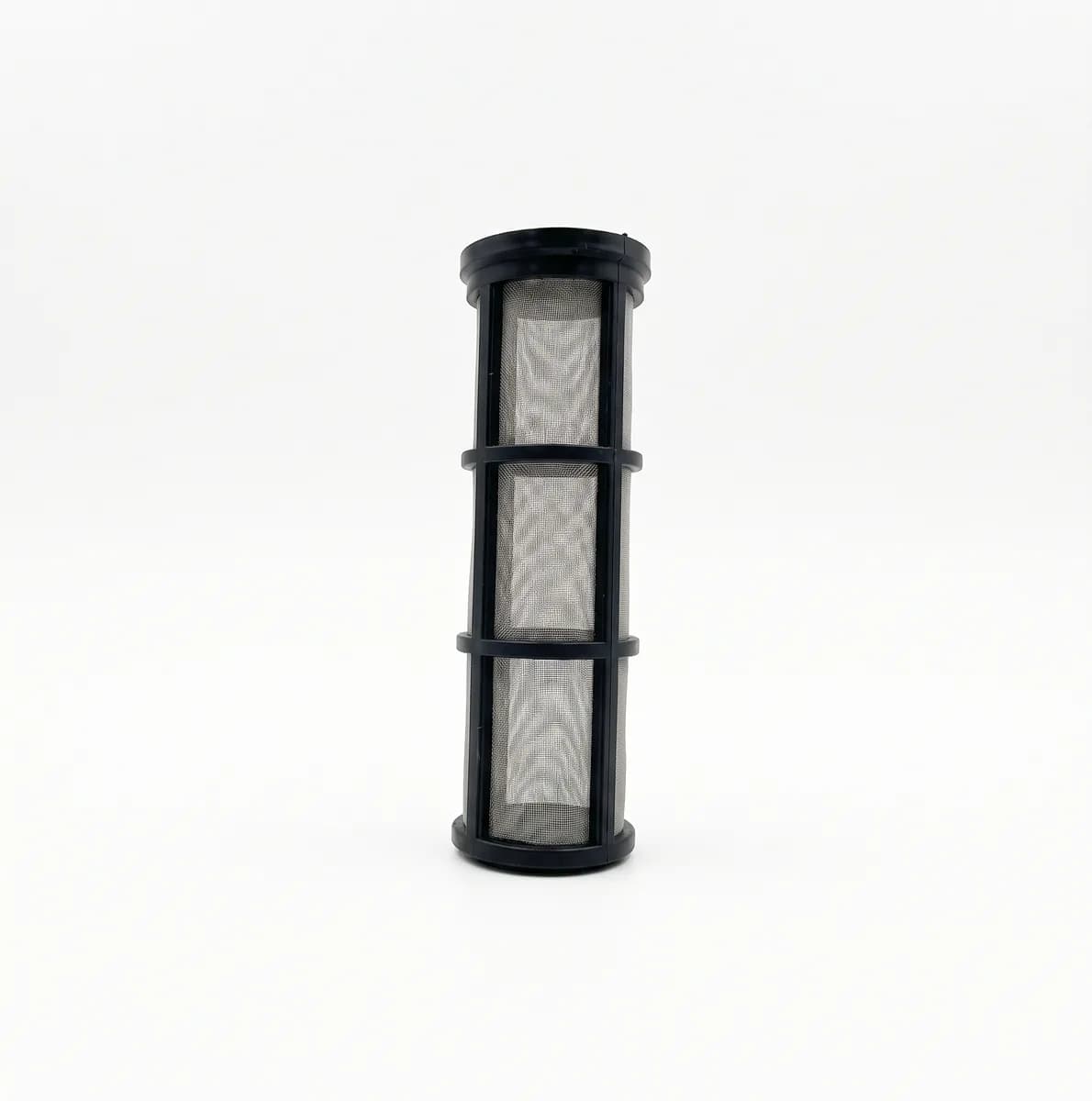

[6]TBD-T40-OUTFILTER-001 Tank Outlet Filter for DJI Agras T40—Tank Outlet Filter for DJI Agras T40$10.90

Spreader Parts

Ref#PhotoPart NumberDescriptionPriceQtyAction

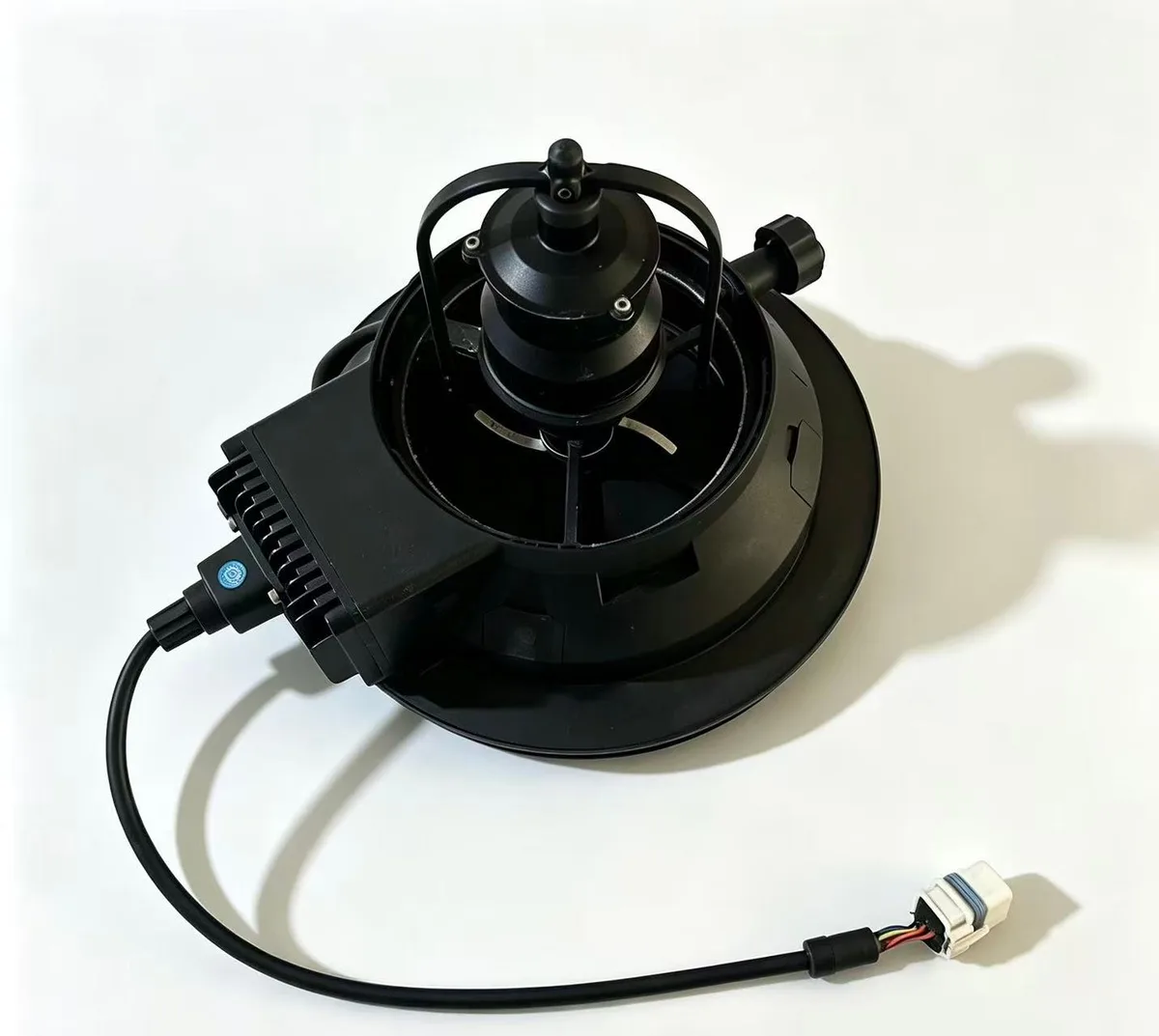

[7]TBD-T40-SPREADER-001 Spreader for DJI Agras T40—Spreader for DJI Agras T40$829.00

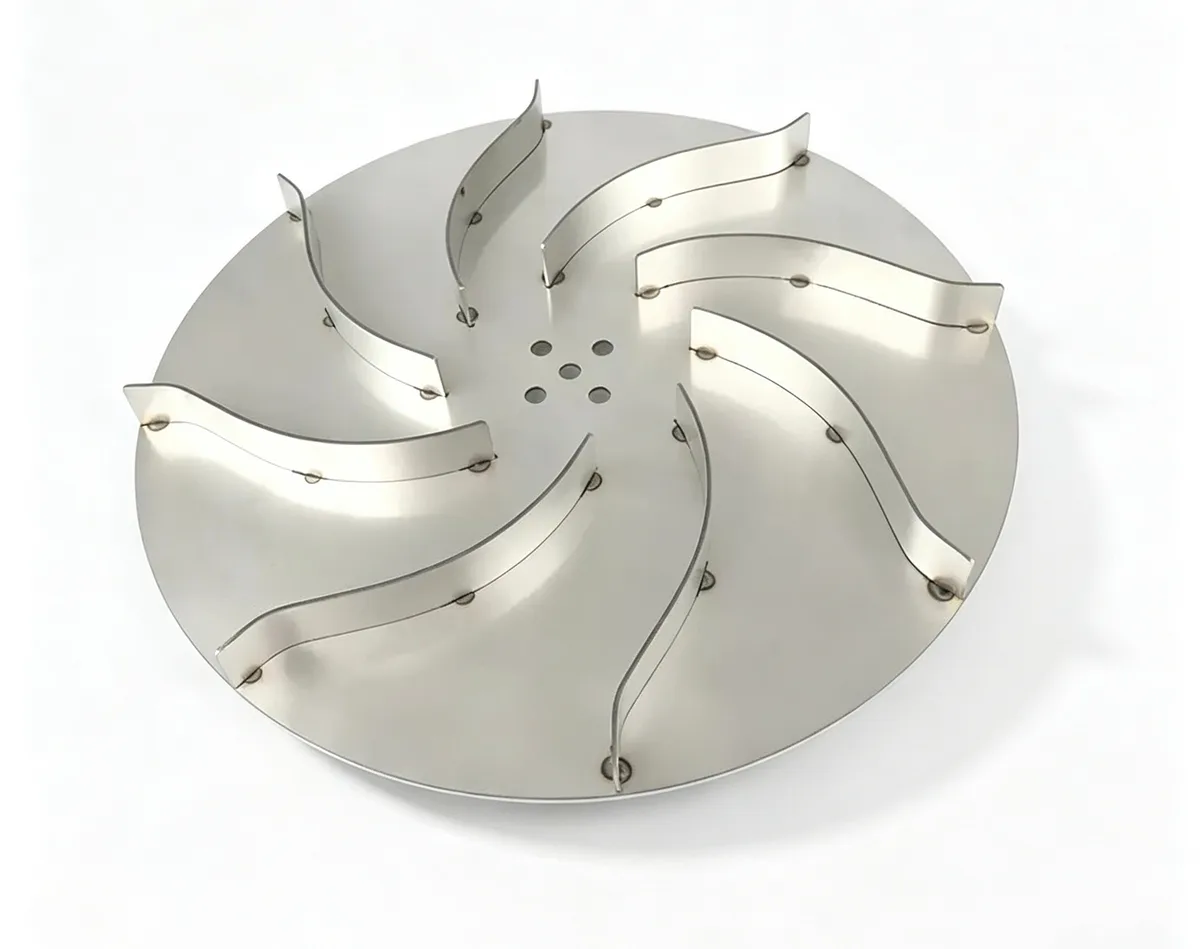

[9]TBD-T40-SDISK-001 Stainless Steel Spinner Disc for DJI Agras T40—Stainless Steel Spinner Disc for DJI Agras T40$25.90
