DJI Agras T40 Propulsion System Parts

Exploded Diagram

Propulsion SystemDiagram coming soon

Agras T40 Diagrams

Parts List

Propellers

Ref#PhotoPart NumberDescriptionPriceQtyAction

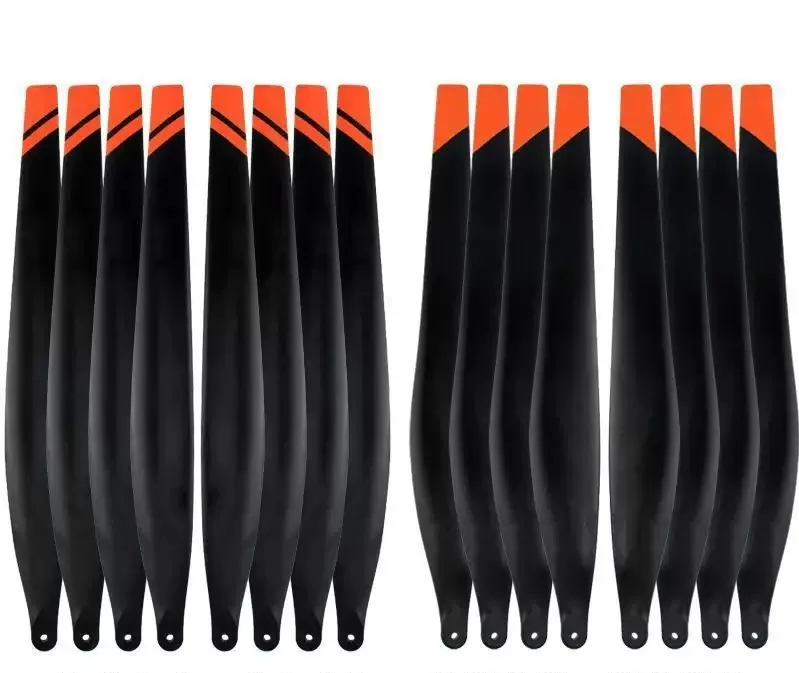

[3]TBD-T40-PROPELLER-001-CWU High Carbon Propeller 5413/5415 CW Upper Pair for DJI Agras T40DJI-T20PT40T50-PRP-01High Carbon Propeller 5413/5415 CW Upper Pair for DJI Agras T402 blades.$29.90
[3]TBD-T40-PROPELLER-001-CWL High Carbon Propeller 5413/5415 CW Lower Pair for DJI Agras T40DJI-T20PT40T50-PRP-01High Carbon Propeller 5413/5415 CW Lower Pair for DJI Agras T402 blades.$29.90
[3]TBD-T40-PROPELLER-001-CCWU High Carbon Propeller 5413/5415 CCW Upper Pair for DJI Agras T40DJI-T20PT40T50-PRP-01High Carbon Propeller 5413/5415 CCW Upper Pair for DJI Agras T402 blades.$29.90
[3]TBD-T40-PROPELLER-001-CCWL High Carbon Propeller 5413/5415 CCW Lower Pair for DJI Agras T40DJI-T20PT40T50-PRP-01High Carbon Propeller 5413/5415 CCW Lower Pair for DJI Agras T402 blades.$29.90

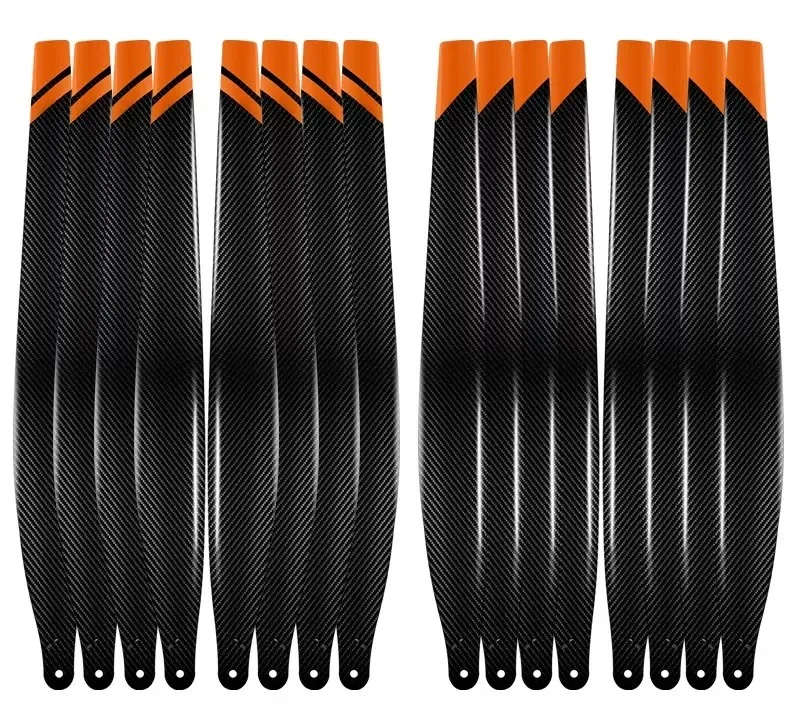

[6]TBD-T40-PROPELLER-002-CWU Carbon Fiber Propeller 5413/5415 CW Upper Pair for DJI Agras T40—Carbon Fiber Propeller 5413/5415 CW Upper Pair for DJI Agras T402 blades.$64.90
[6]TBD-T40-PROPELLER-002-CWL Carbon Fiber Propeller 5413/5415 CW Lower Pair for DJI Agras T40—Carbon Fiber Propeller 5413/5415 CW Lower Pair for DJI Agras T402 blades.$64.90
[6]TBD-T40-PROPELLER-002-CCWU Carbon Fiber Propeller 5413/5415 CCW Upper Pair for DJI Agras T40—Carbon Fiber Propeller 5413/5415 CCW Upper Pair for DJI Agras T402 blades.$64.90
[6]TBD-T40-PROPELLER-002-CCWL Carbon Fiber Propeller 5413/5415 CCW Lower Pair for DJI Agras T40—Carbon Fiber Propeller 5413/5415 CCW Lower Pair for DJI Agras T402 blades.$64.90

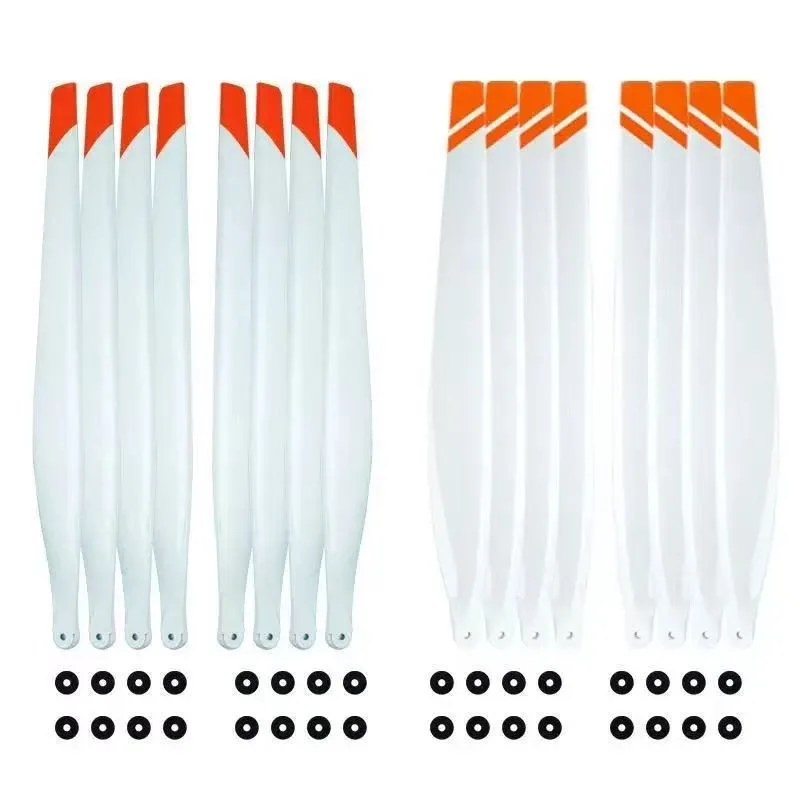

[7]TBD-T40-PROPELLER-003-CWU White Heat-Resistant Reinforced Propeller 5413/5415 CW Upper Pair for DJI Agras T40—White Heat-Resistant Reinforced Propeller 5413/5415 CW Upper Pair for DJI Agras T402 blades.$34.90
[7]TBD-T40-PROPELLER-003-CWL White Heat-Resistant Reinforced Propeller 5413/5415 CW Lower Pair for DJI Agras T40—White Heat-Resistant Reinforced Propeller 5413/5415 CW Lower Pair for DJI Agras T402 blades.$34.90
[7]TBD-T40-PROPELLER-003-CCWU White Heat-Resistant Reinforced Propeller 5413/5415 CCW Upper Pair for DJI Agras T40—White Heat-Resistant Reinforced Propeller 5413/5415 CCW Upper Pair for DJI Agras T402 blades.$34.90
[7]TBD-T40-PROPELLER-003-CCWL White Heat-Resistant Reinforced Propeller 5413/5415 CCW Lower Pair for DJI Agras T40—White Heat-Resistant Reinforced Propeller 5413/5415 CCW Lower Pair for DJI Agras T402 blades.$34.90

Propulsion Motors

Ref#PhotoPart NumberDescriptionPriceQtyAction

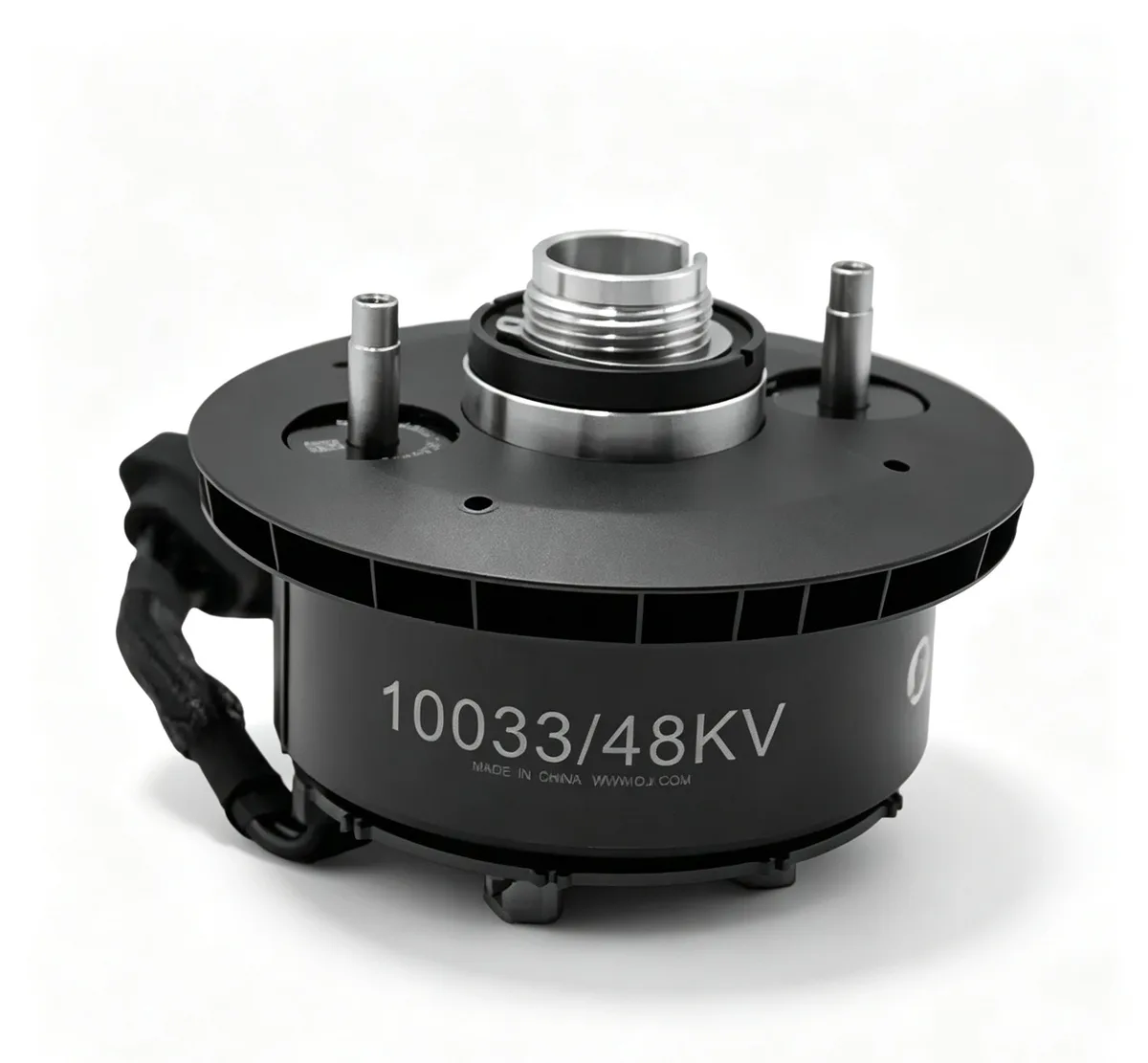

[4]TBD-T40-MOTOR-001 Brushless Propulsion Motor 10033 48KV for DJI Agras T40—Brushless Propulsion Motor 10033 48KV for DJI Agras T40$179.00

ESCs

Ref#PhotoPart NumberDescriptionPriceQtyAction

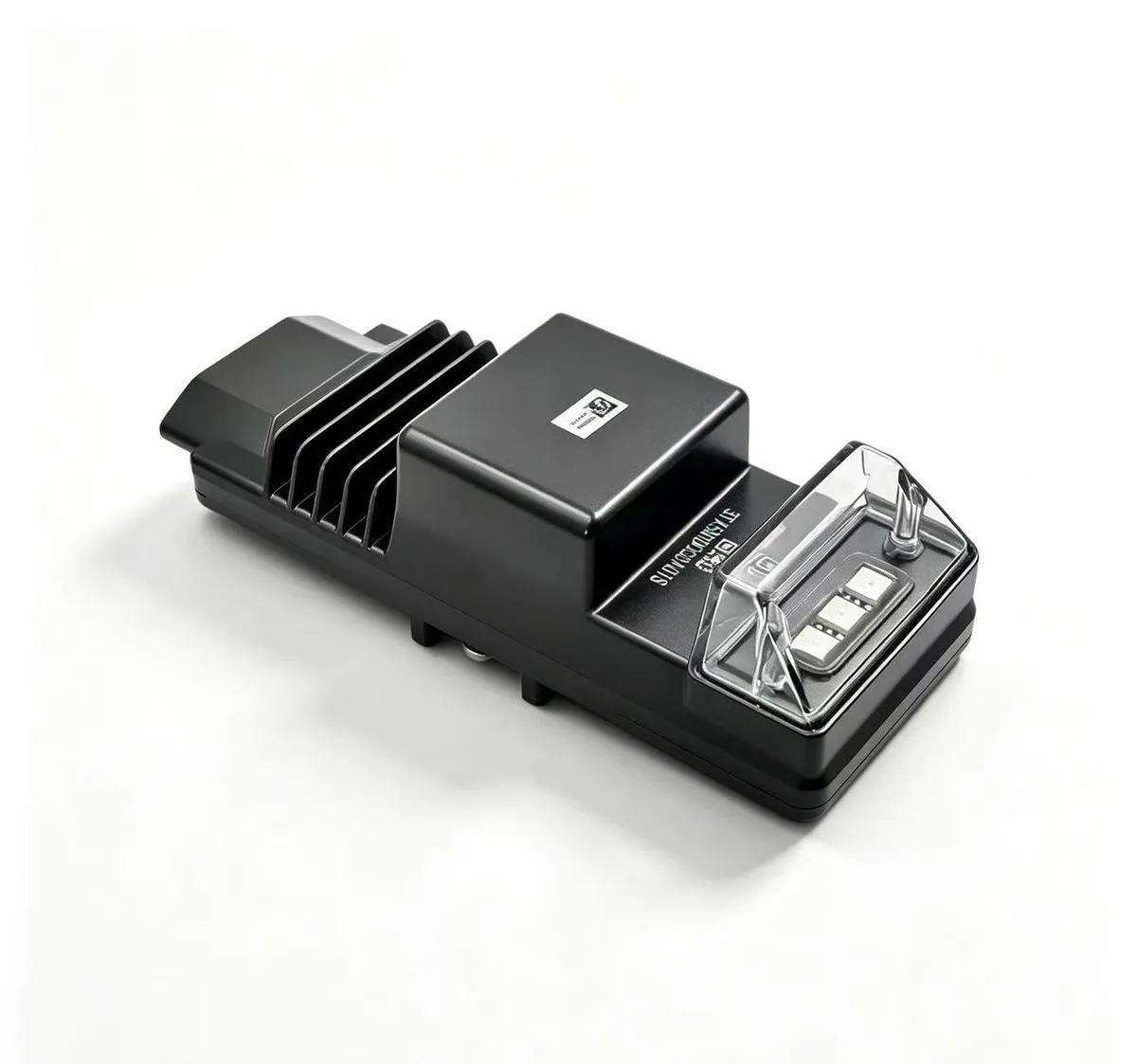

[5]TBD-T40-ESC-001 Propulsion ESC for DJI Agras T40—Propulsion ESC for DJI Agras T40$145.00

Propeller Adapters & Spacers

Ref#PhotoPart NumberDescriptionPriceQtyAction

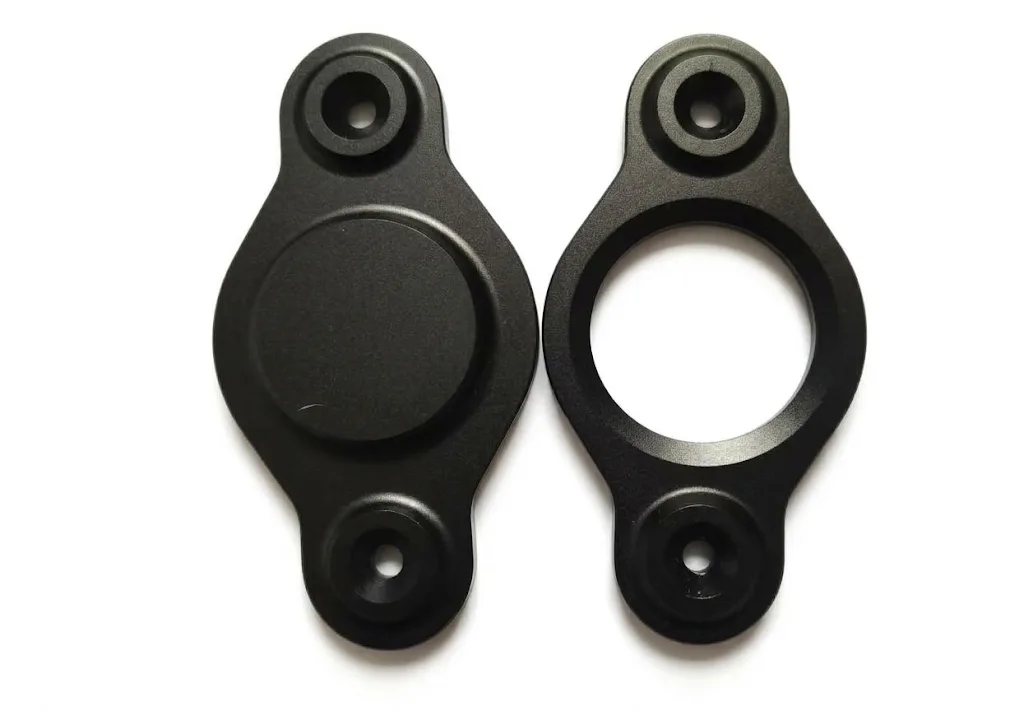

[8]TBD-T40-CLAMP-001 Lower Anti-Loosening Propeller Clamp for DJI Agras T40—Lower Anti-Loosening Propeller Clamp for DJI Agras T40$13.90

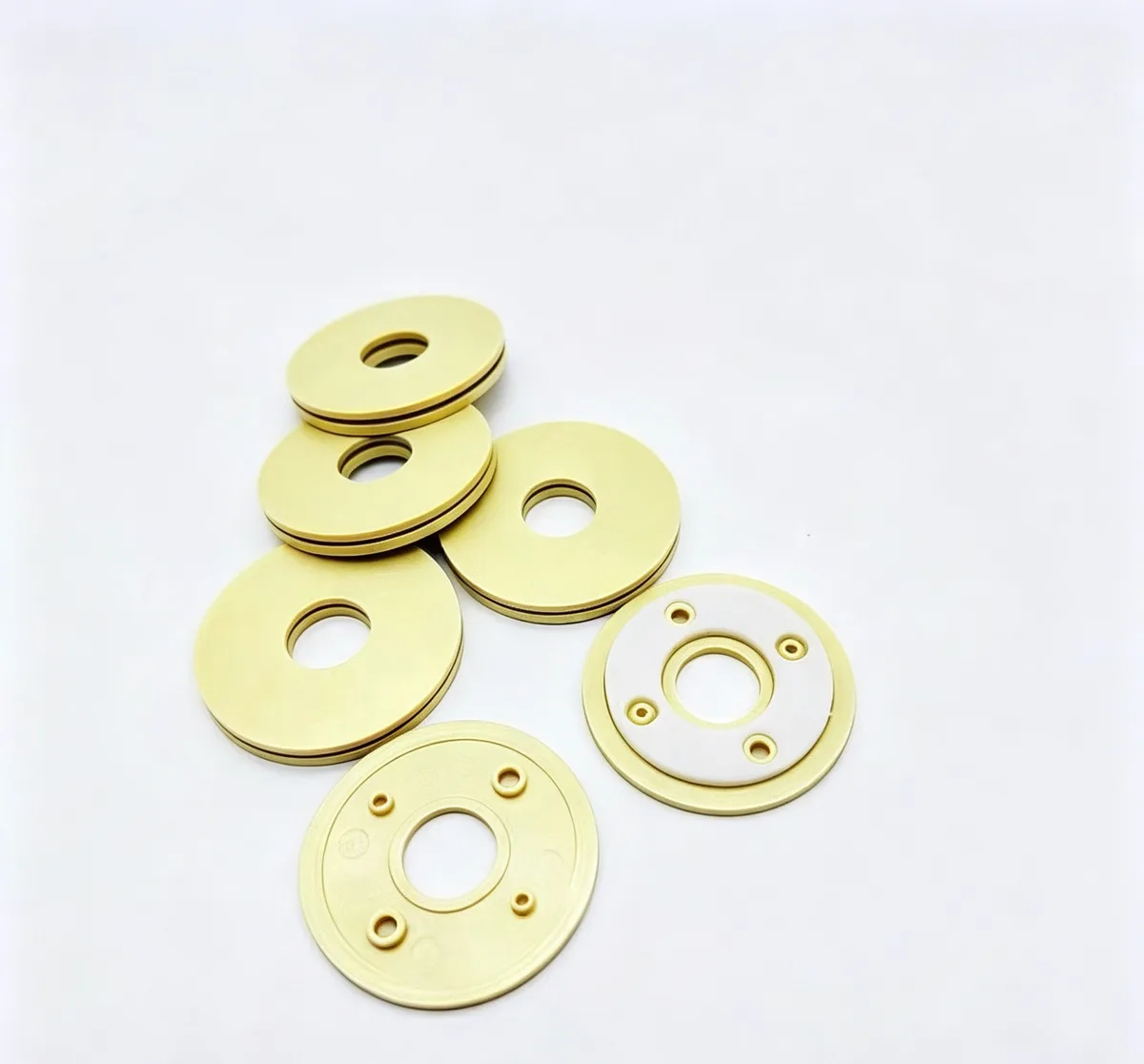

[9]TBD-T40-WASHER-001 Propeller Clamp Sandwich Washer for DJI Agras T40—Propeller Clamp Sandwich Washer for DJI Agras T4016 pieces per pack.$8.90
[10]TBD-T40-CLAMP-002 Upper Anti-Loosening Propeller Clamp for DJI Agras T40—Upper Anti-Loosening Propeller Clamp for DJI Agras T40$13.90
