DJI Agras T30 Spraying & Spreading System Parts

Exploded Diagram

Spraying & Spreading SystemDiagram coming soon

Agras T30 Diagrams

Parts List

Nozzles & Sprinklers

Ref#PhotoPart NumberDescriptionPriceQtyAction

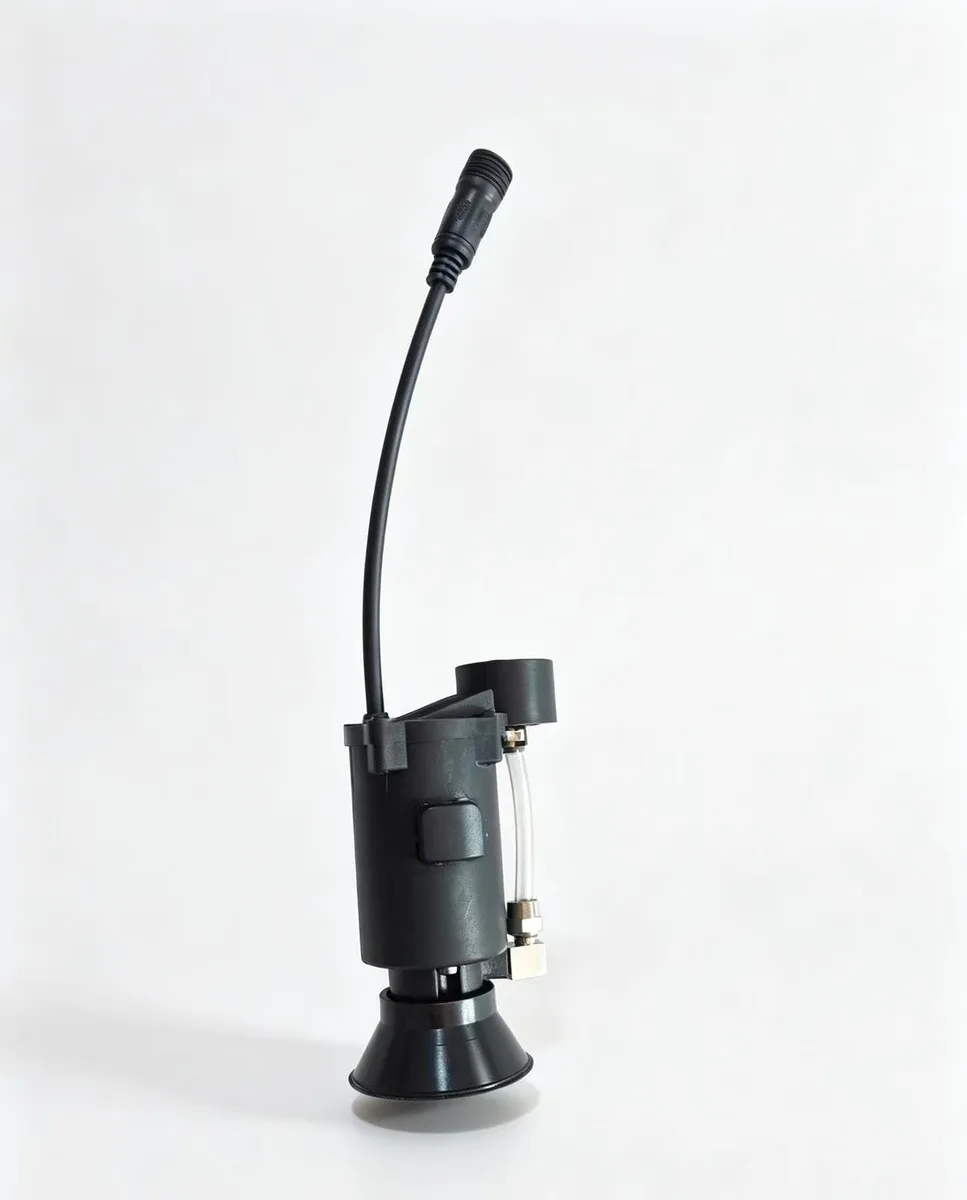

[2]TBD-T30-SPRINKLER-001 Centrifugal Sprinkler Kit Assembly with Motor for DJI Agras T30—Centrifugal Sprinkler Kit Assembly with Motor for DJI Agras T30$159.00
[3]TBD-T30-BOOM-001 Centrifugal Sprinkler Shell for DJI Agras T30—Centrifugal Sprinkler Shell for DJI Agras T30$9.90

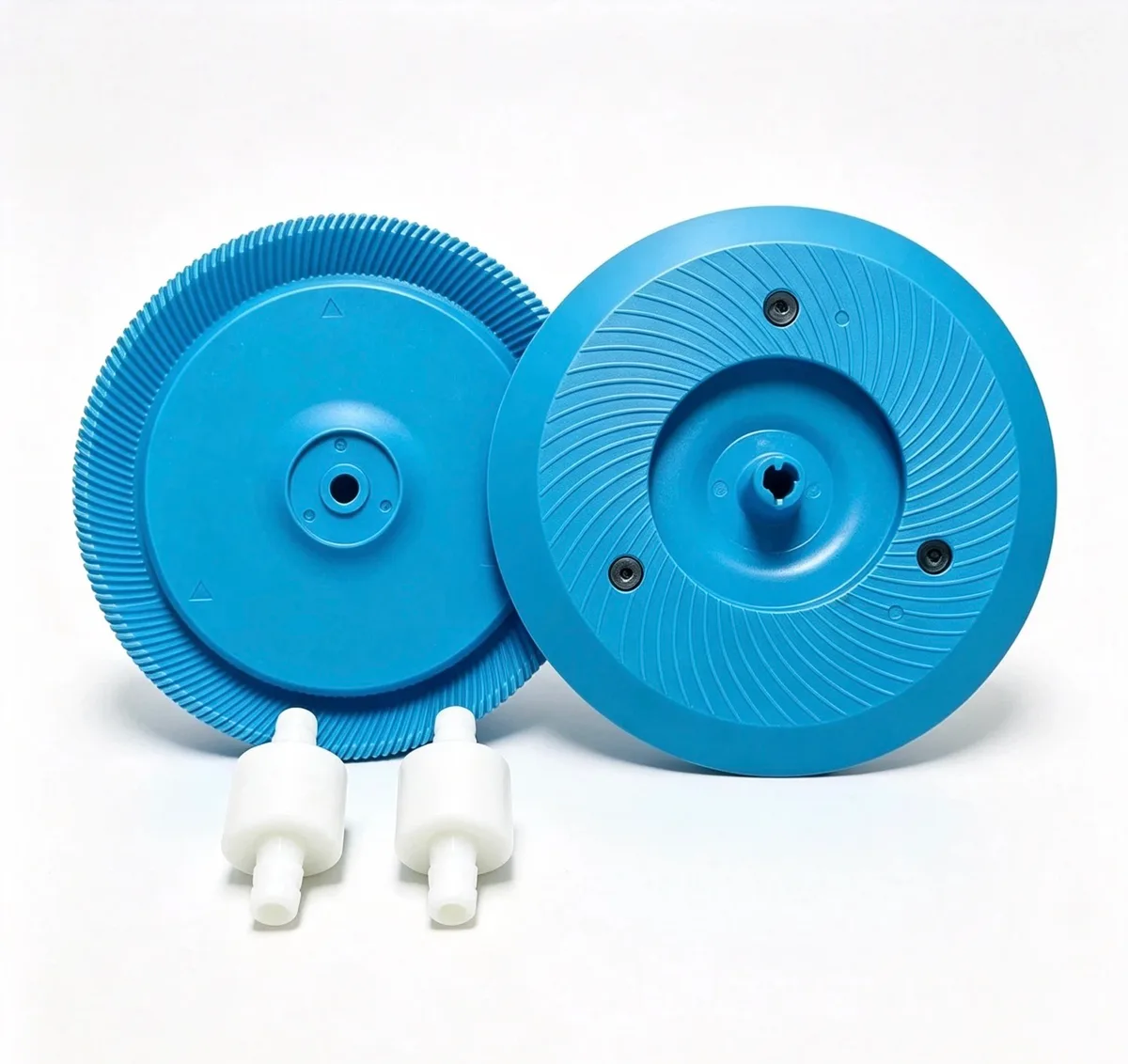

[4]TBD-T30-DISC-001 Enlarged Tornado Centrifugal Spray Disc for DJI Agras T30—Enlarged Tornado Centrifugal Spray Disc for DJI Agras T30Available in blue or black.$12.90

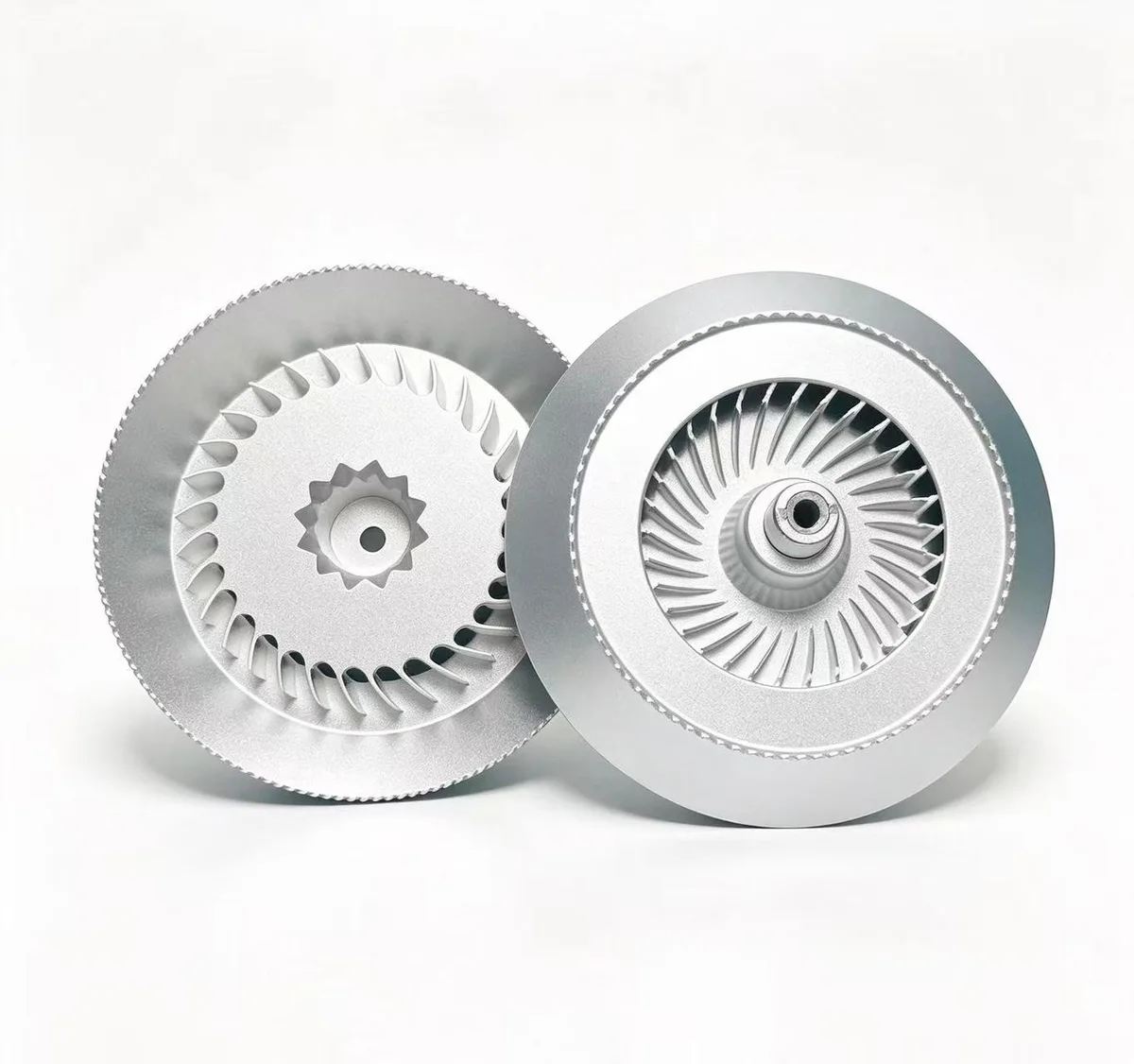

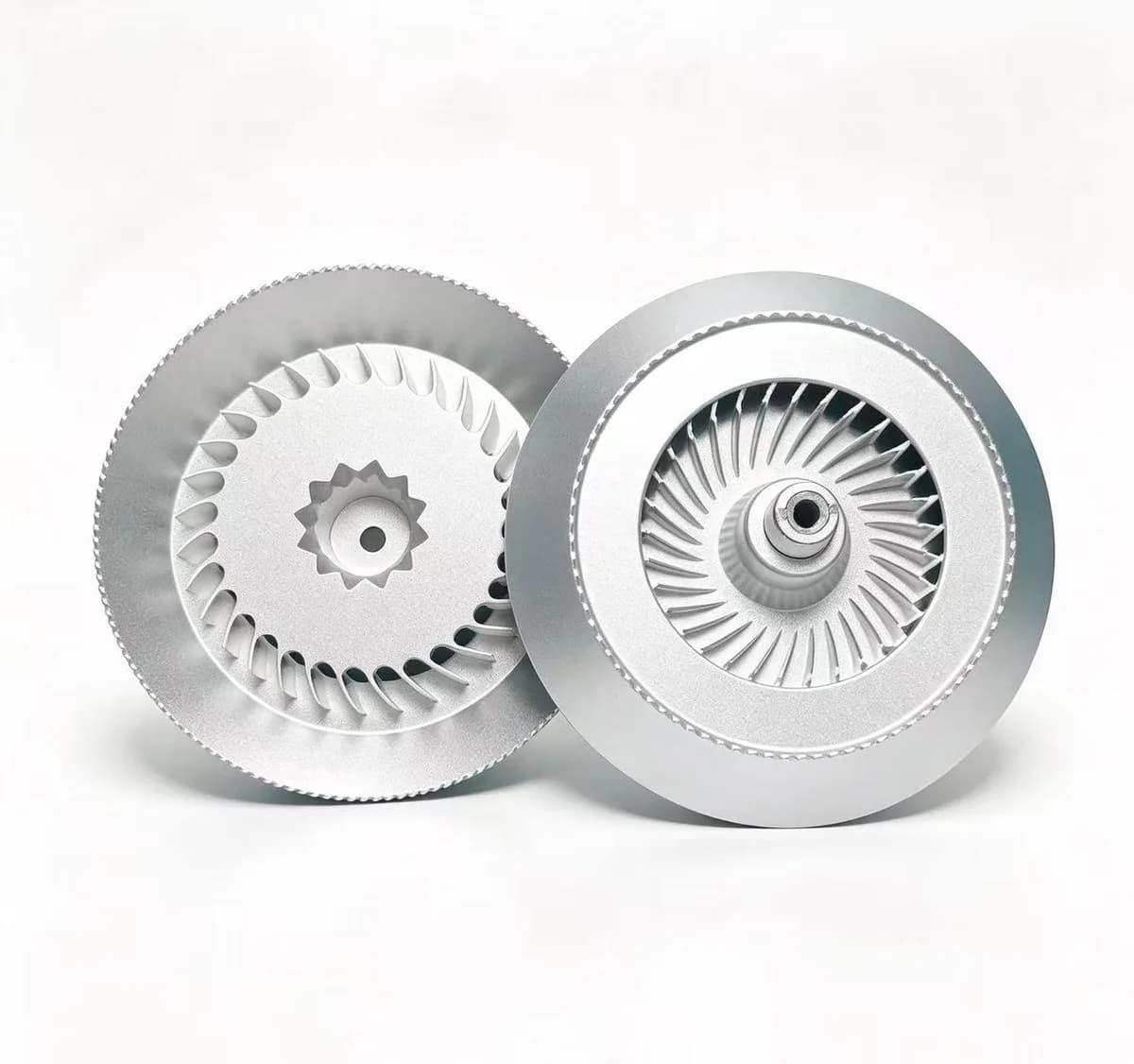

[9]TBD-T30-DISC-002 Aluminum Alloy Centrifugal Spray Disc for DJI Agras T30—Aluminum Alloy Centrifugal Spray Disc for DJI Agras T30Color options available.$25.90

Centrifugal Motors

Ref#PhotoPart NumberDescriptionPriceQtyAction
[5]—Centrifugal Motor for DJI Agras T30$79.00

Filters

Ref#PhotoPart NumberDescriptionPriceQtyAction

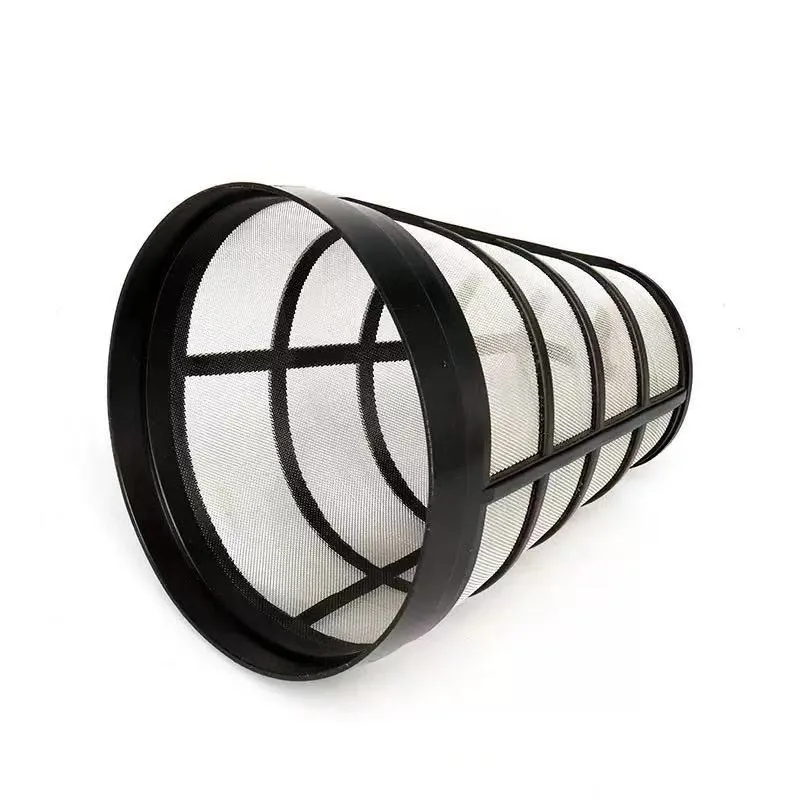

[6]TBD-T30-INFILTER-001 Tank Inlet Filter for DJI Agras T30—Tank Inlet Filter for DJI Agras T30$7.90

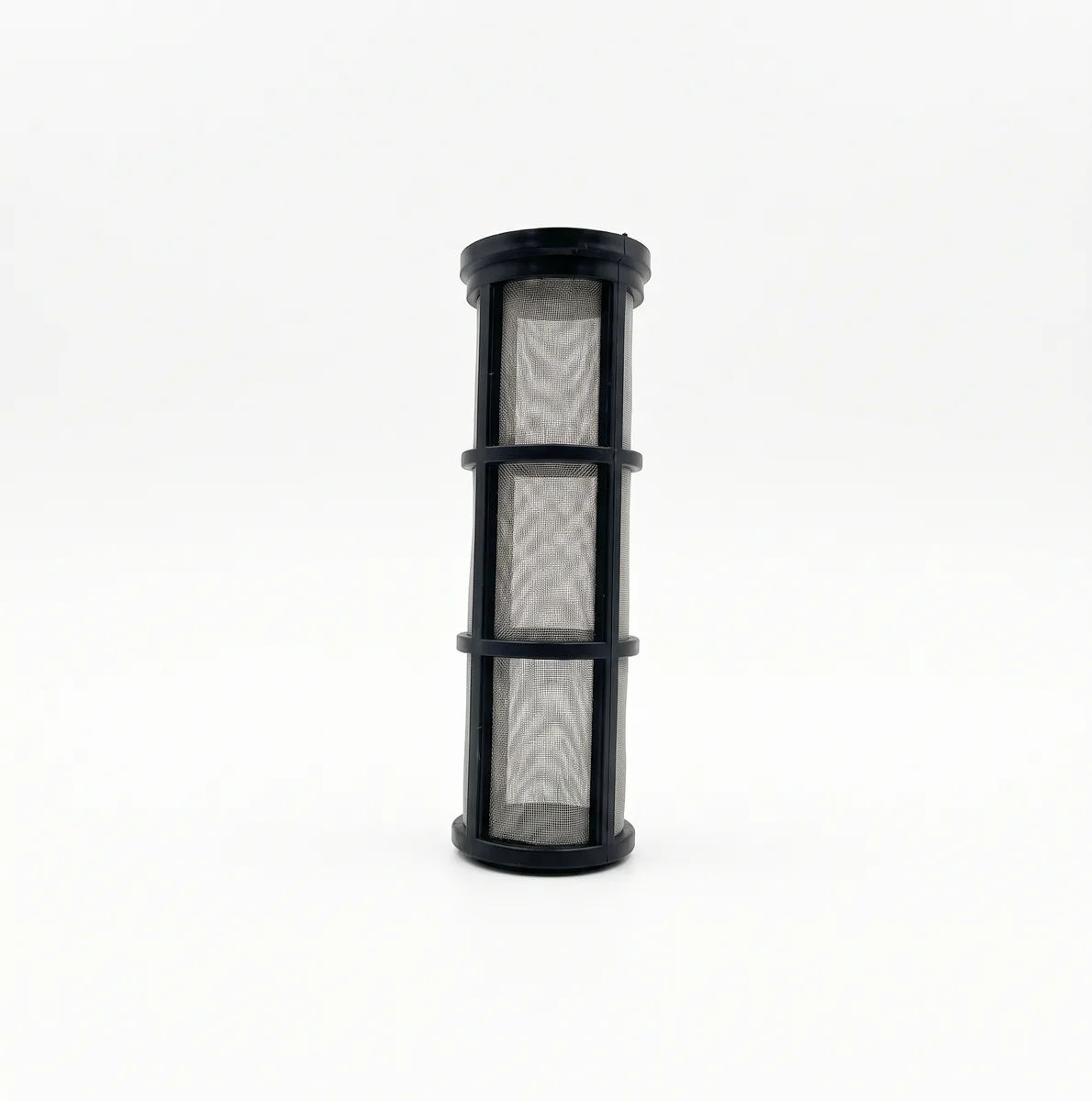

[7]TBD-T30-OUTFILTER-001 Tank Outlet Filter for DJI Agras T30—Tank Outlet Filter for DJI Agras T30$10.90

Spreader Parts

Ref#PhotoPart NumberDescriptionPriceQtyAction

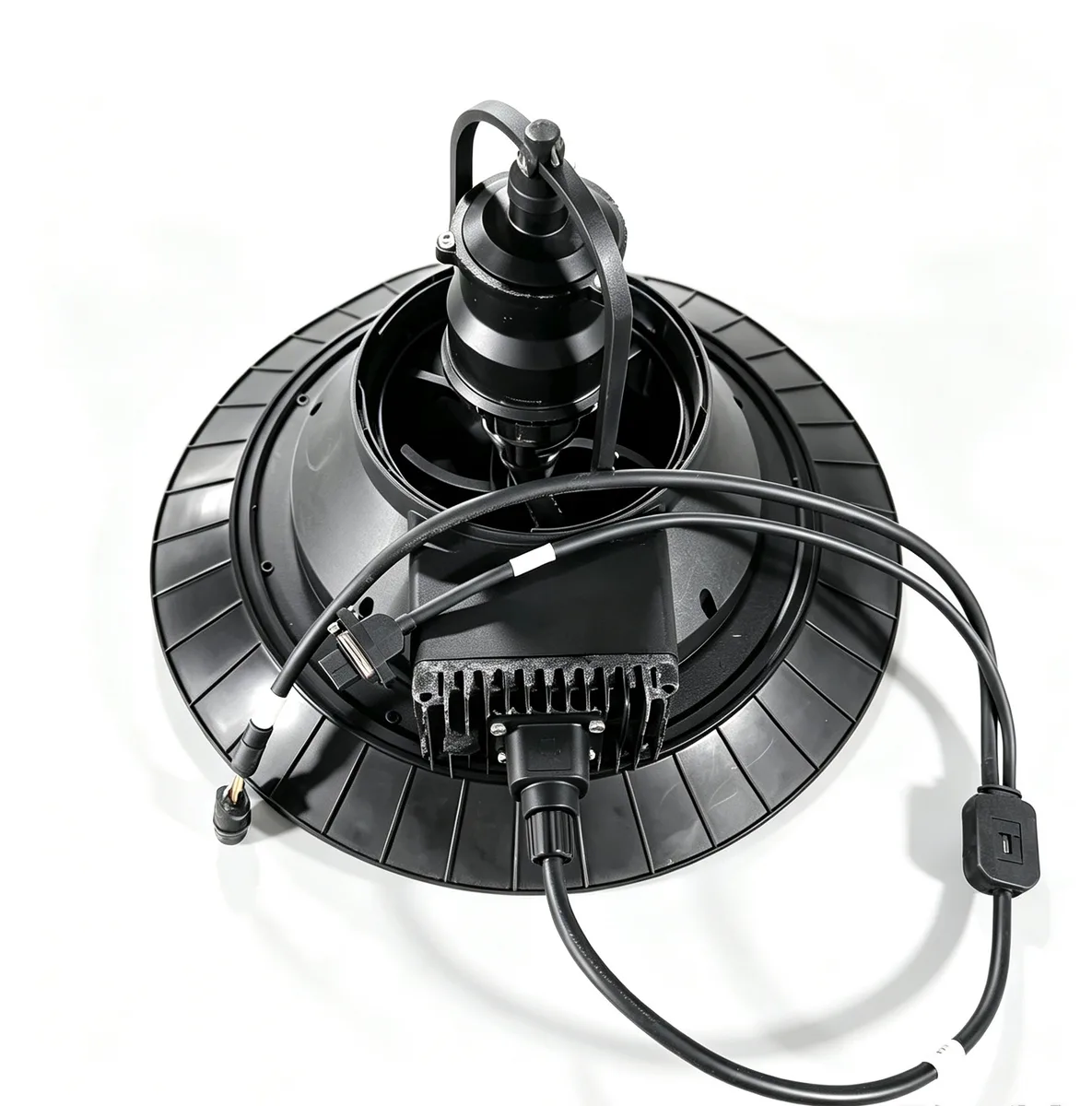

[8]TBD-T30-SPREADER-001 Spreader for DJI Agras T30—Spreader for DJI Agras T30$429.00

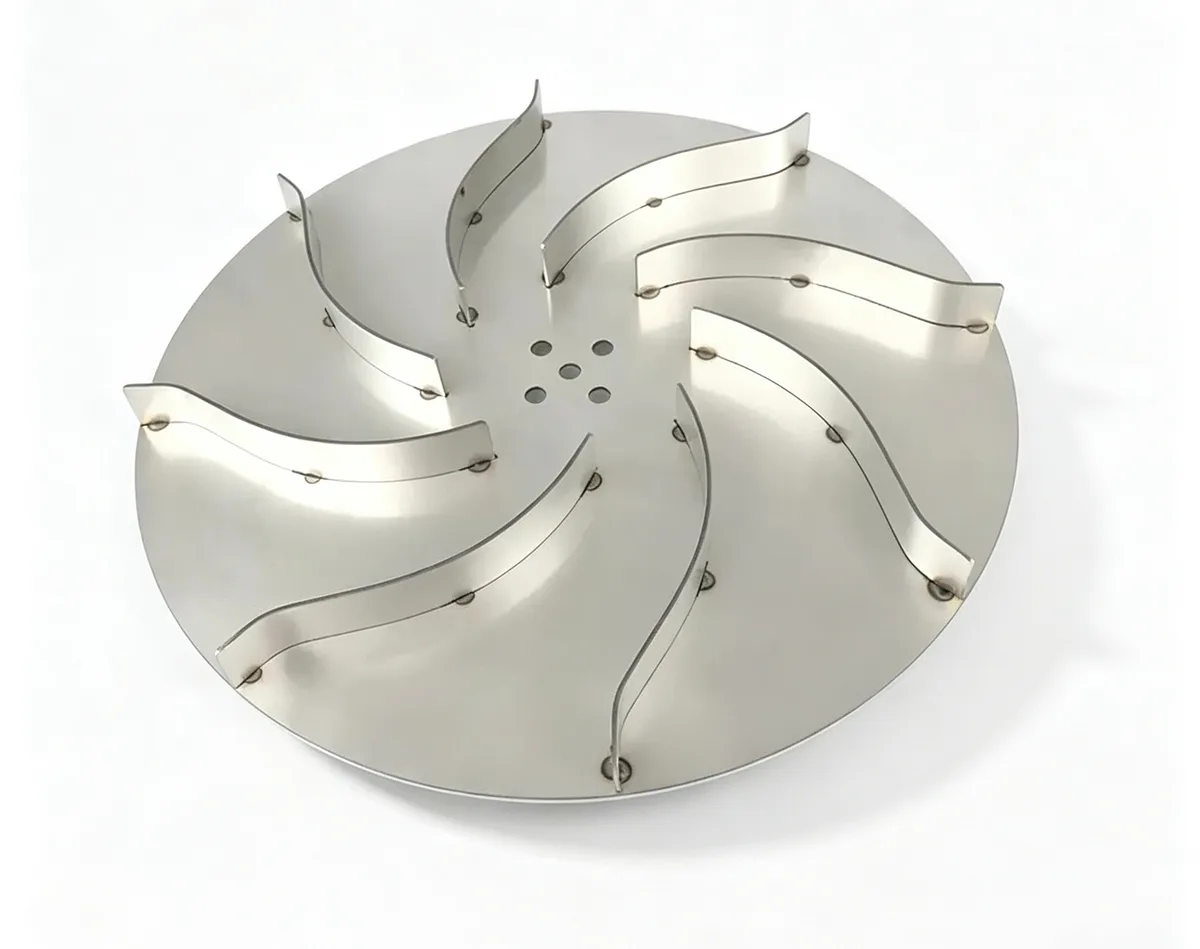

[10]TBD-T30-SDISK-001 Stainless Steel Spinner Disc for DJI Agras T30—Stainless Steel Spinner Disc for DJI Agras T30$25.90
