DJI Agras T30 Propulsion System Parts

Exploded Diagram

Propulsion SystemDiagram coming soon

Agras T30 Diagrams

Parts List

Propellers

Ref#PhotoPart NumberDescriptionPriceQtyAction
[3]TBD-T30-PART-001-CWU High Carbon Propeller 3820 CW Upper Pair for DJI Agras T30—High Carbon Propeller 3820 CW Upper Pair for DJI Agras T302 blades.$22.90
[3]TBD-T30-PART-001-CWL High Carbon Propeller 3820 CW Lower Pair for DJI Agras T30—High Carbon Propeller 3820 CW Lower Pair for DJI Agras T302 blades.$22.90
[3]TBD-T30-PART-001-CCWU High Carbon Propeller 3820 CCW Upper Pair for DJI Agras T30—High Carbon Propeller 3820 CCW Upper Pair for DJI Agras T302 blades.$22.90

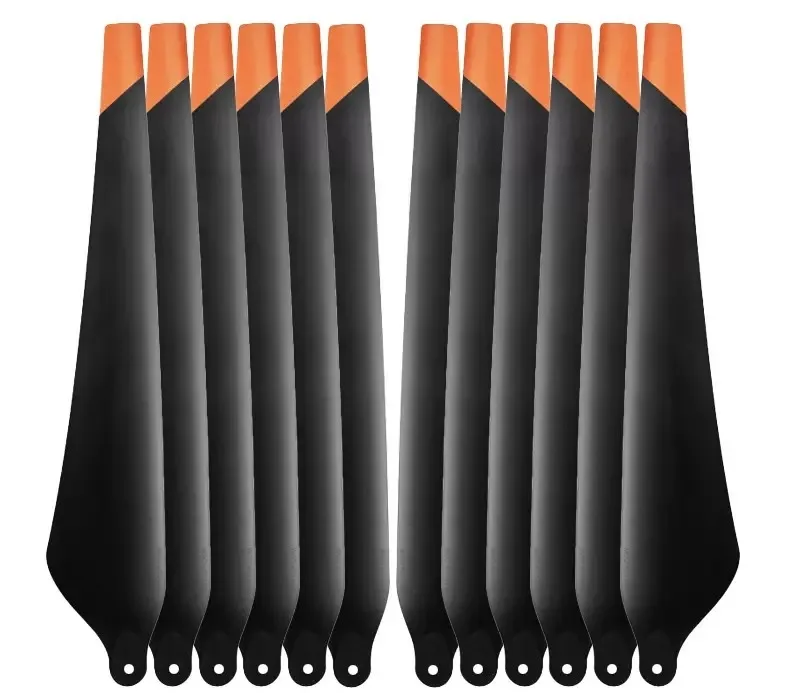

[3]TBD-T30-PART-001-CCWL High Carbon Propeller 3820 CCW Lower Pair for DJI Agras T30—High Carbon Propeller 3820 CCW Lower Pair for DJI Agras T302 blades.$22.90
[4]TBD-T30-PROPELLER-001-CWU Carbon Fiber Propeller 3820 CW Upper Pair for DJI Agras T30—Carbon Fiber Propeller 3820 CW Upper Pair for DJI Agras T302 blades.$46.90
[4]TBD-T30-PROPELLER-001-CWL Carbon Fiber Propeller 3820 CW Lower Pair for DJI Agras T30—Carbon Fiber Propeller 3820 CW Lower Pair for DJI Agras T302 blades.$46.90

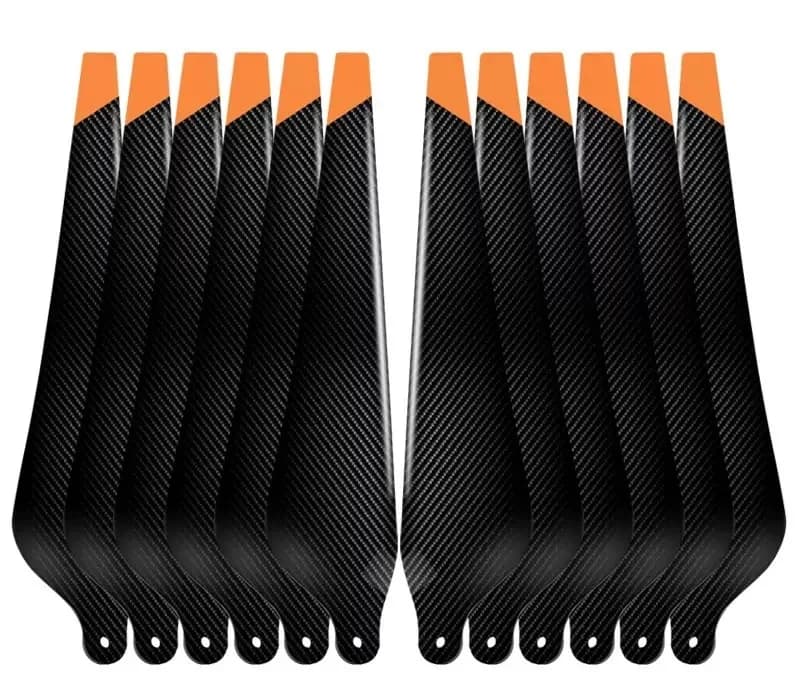

[4]TBD-T30-PROPELLER-001-CCWU Carbon Fiber Propeller 3820 CCW Upper Pair for DJI Agras T30—Carbon Fiber Propeller 3820 CCW Upper Pair for DJI Agras T302 blades.$46.90
[4]TBD-T30-PROPELLER-001-CCWL Carbon Fiber Propeller 3820 CCW Lower Pair for DJI Agras T30—Carbon Fiber Propeller 3820 CCW Lower Pair for DJI Agras T302 blades.$46.90
[5]TBD-T30-PROPELLER-002-CWU White High Carbon Propeller 3820 CW Upper Pair for DJI Agras T30—White High Carbon Propeller 3820 CW Upper Pair for DJI Agras T302 blades.$25.90
[5]TBD-T30-PROPELLER-002-CWL White High Carbon Propeller 3820 CW Lower Pair for DJI Agras T30—White High Carbon Propeller 3820 CW Lower Pair for DJI Agras T302 blades.$25.90

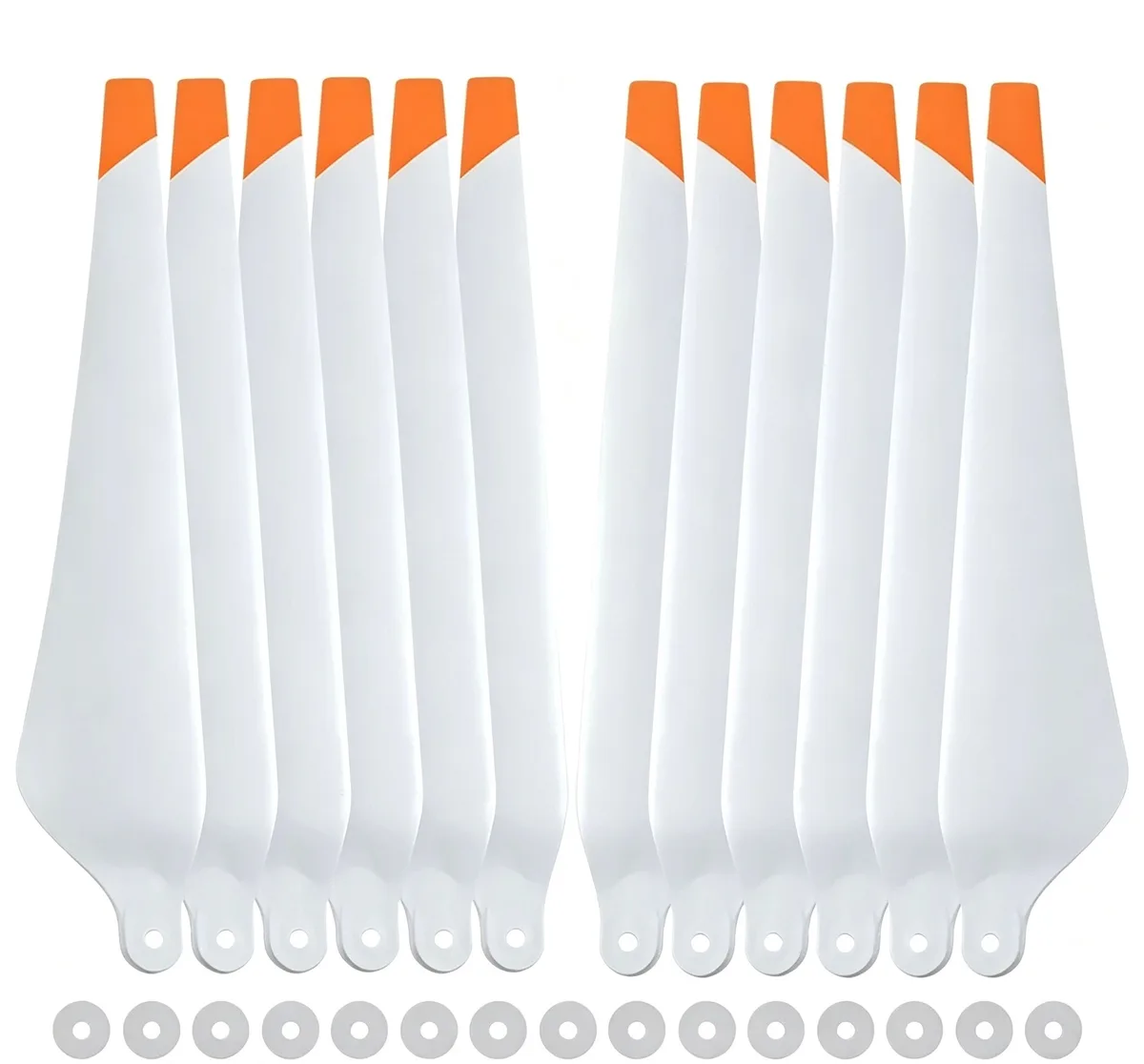

[5]TBD-T30-PROPELLER-002-CCWU White High Carbon Propeller 3820 CCW Upper Pair for DJI Agras T30—White High Carbon Propeller 3820 CCW Upper Pair for DJI Agras T302 blades.$25.90
[5]TBD-T30-PROPELLER-002-CCWL White High Carbon Propeller 3820 CCW Lower Pair for DJI Agras T30—White High Carbon Propeller 3820 CCW Lower Pair for DJI Agras T302 blades.$25.90

Propulsion Motors

Ref#PhotoPart NumberDescriptionPriceQtyAction

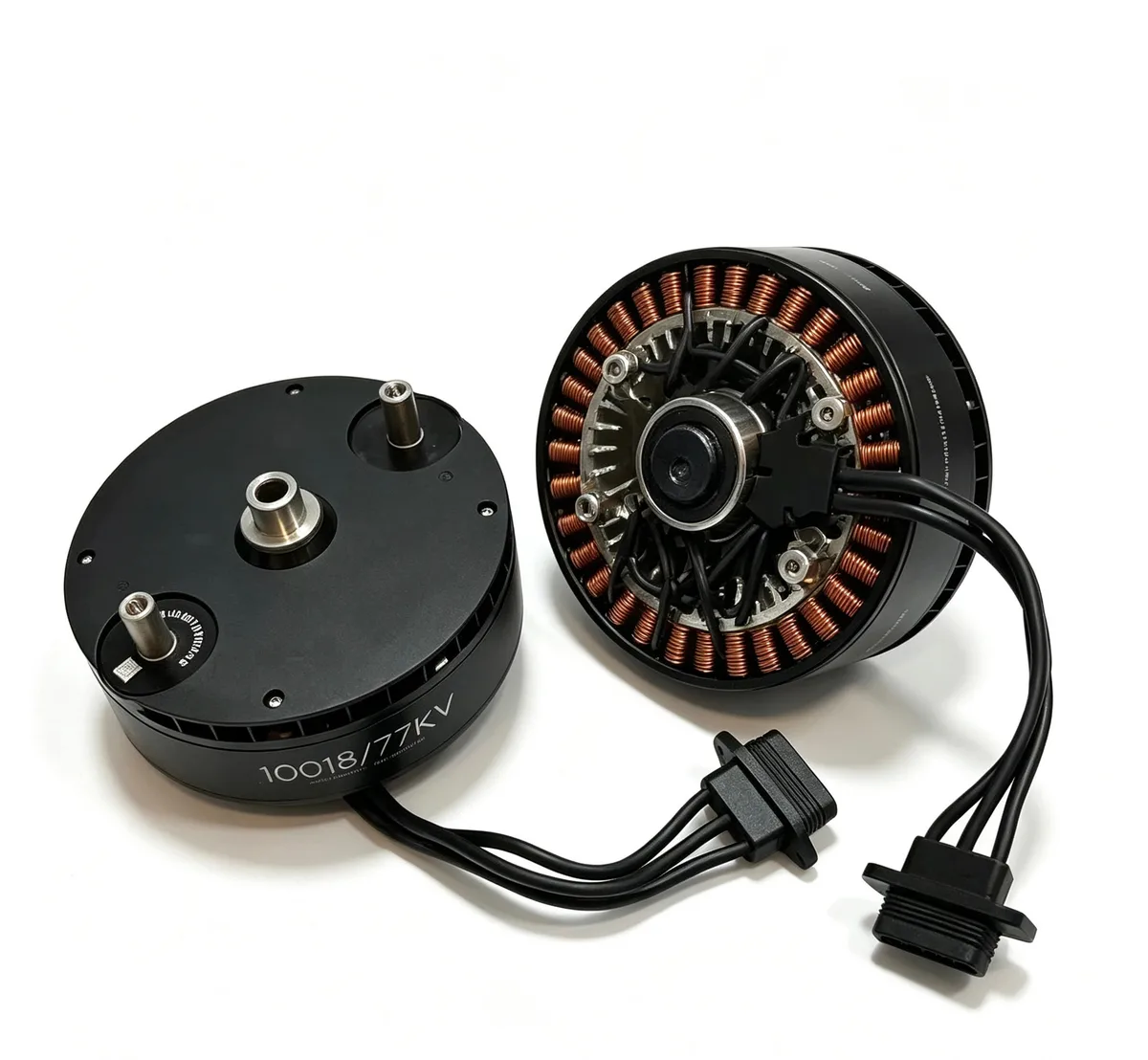

[6]TBD-T30-MOTOR-001 Brushless Propulsion Motor 10018 77KV for DJI Agras T30—Brushless Propulsion Motor 10018 77KV for DJI Agras T30$149.00

ESCs

Ref#PhotoPart NumberDescriptionPriceQtyAction

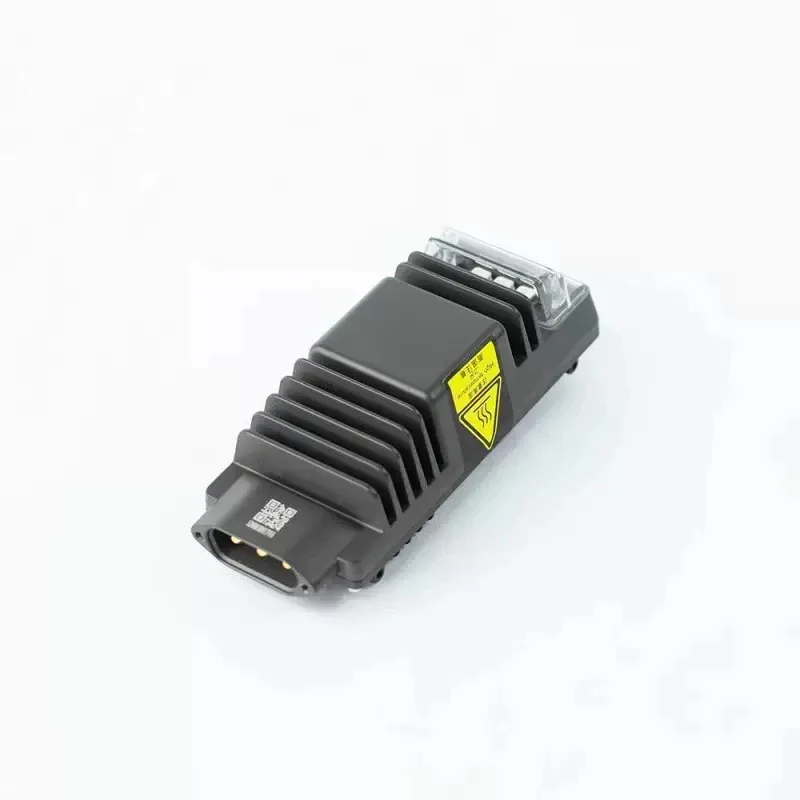

[7]TBD-T30-ESC-001 Propulsion ESC for DJI Agras T30—Propulsion ESC for DJI Agras T30$145.00

Propeller Adapters & Spacers

Ref#PhotoPart NumberDescriptionPriceQtyAction

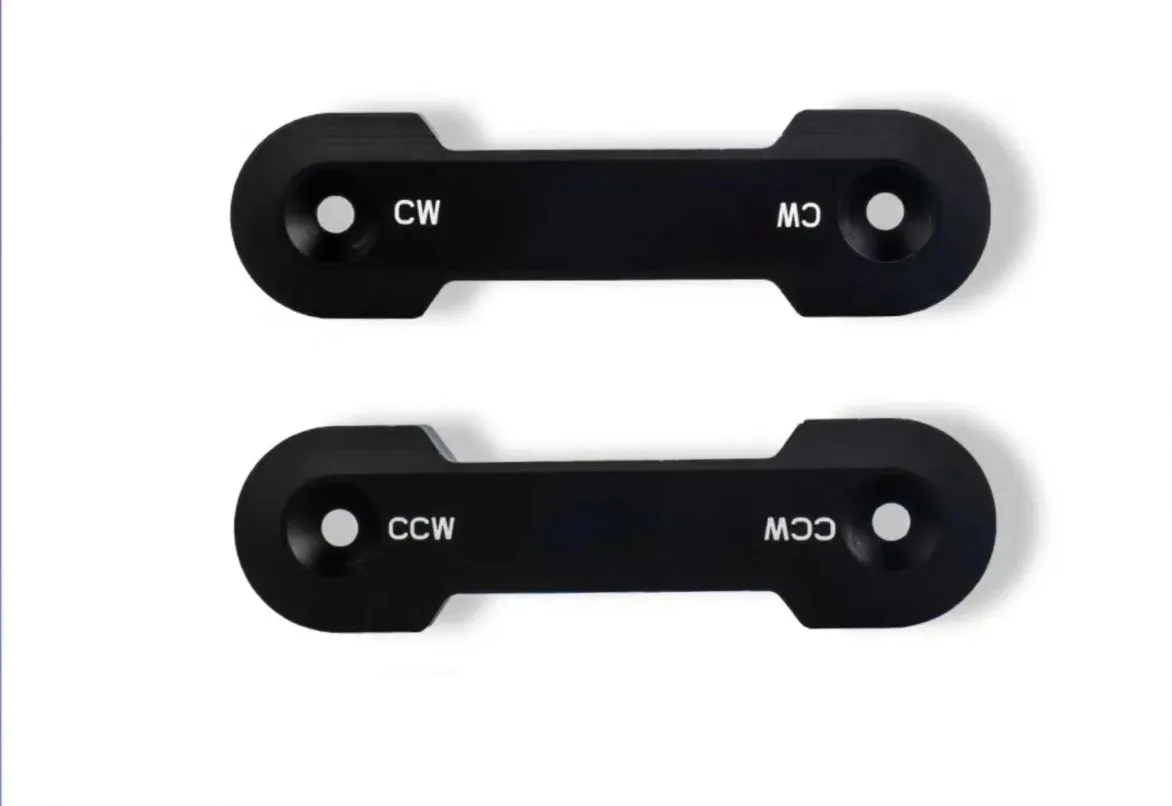

[8]TBD-T30-CLAMP-001 CW Propeller Clamp for DJI Agras T30—CW Propeller Clamp for DJI Agras T30$11.50

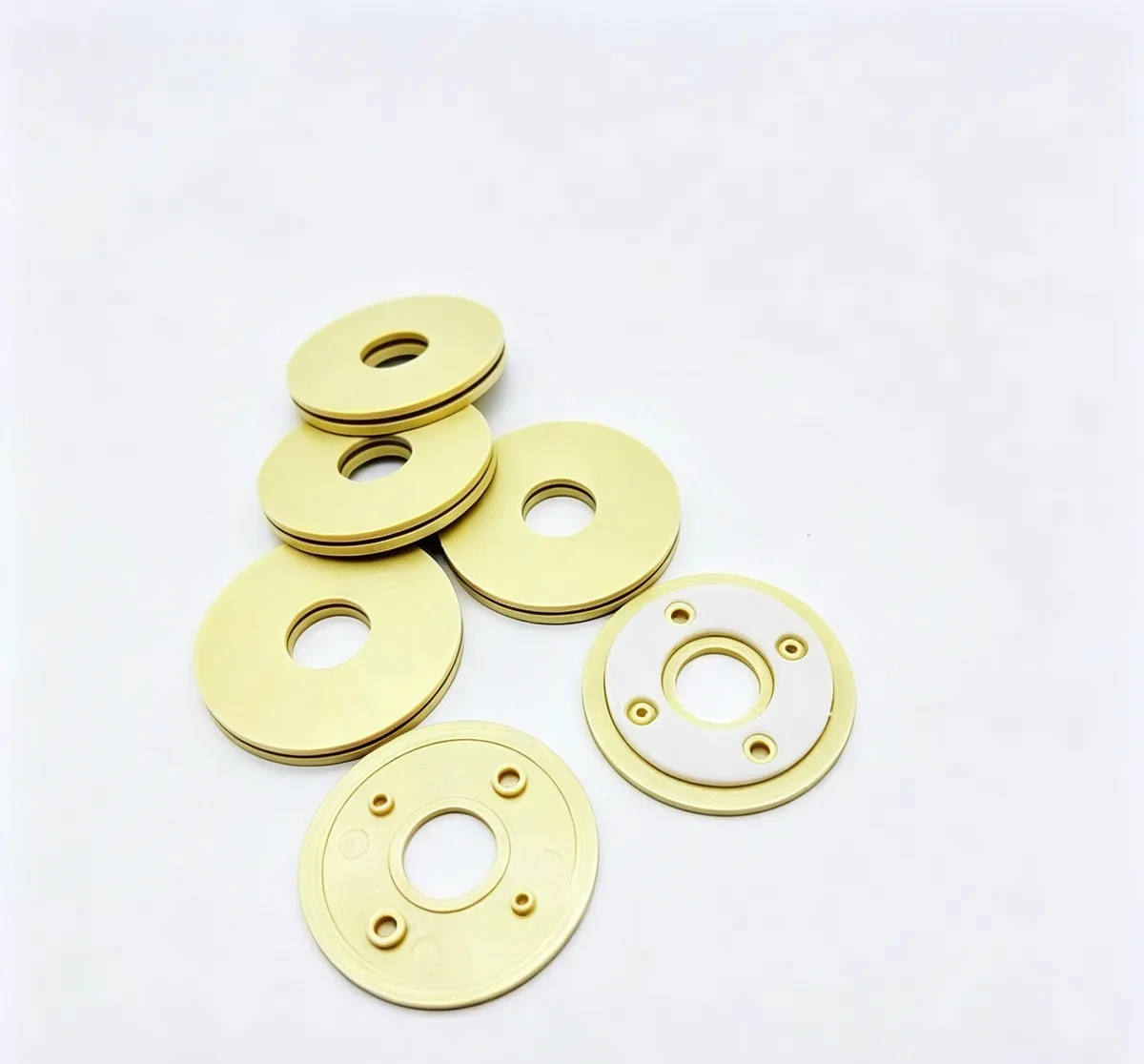

[9]TBD-T30-WASHER-001 Propeller Clamp Sandwich Washer for DJI Agras T30—Propeller Clamp Sandwich Washer for DJI Agras T3016 pieces per pack.$8.90
[10]TBD-T30-CLAMP-002 CCW Propeller Clamp for DJI Agras T30—CCW Propeller Clamp for DJI Agras T30$11.50
