DJI Agras T25P Spraying & Spreading System Parts

Exploded Diagram

Spraying & Spreading SystemDiagram coming soon

Agras T25P Diagrams

Parts List

Nozzles & Sprinklers

Ref#PhotoPart NumberDescriptionPriceQtyAction

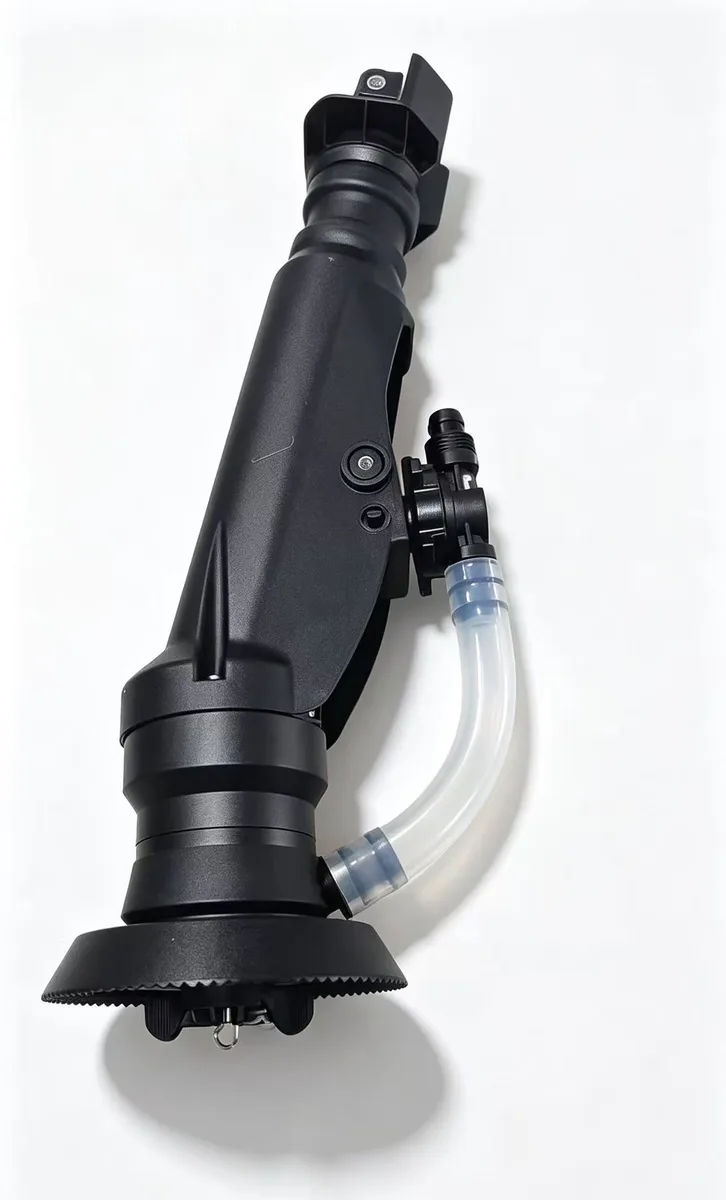

[1]TBD-T25P-SPRINKLER-001 Centrifugal Sprinkler Kit Assembly with Motor for DJI Agras T25P—Centrifugal Sprinkler Kit Assembly with Motor for DJI Agras T25P$179.00

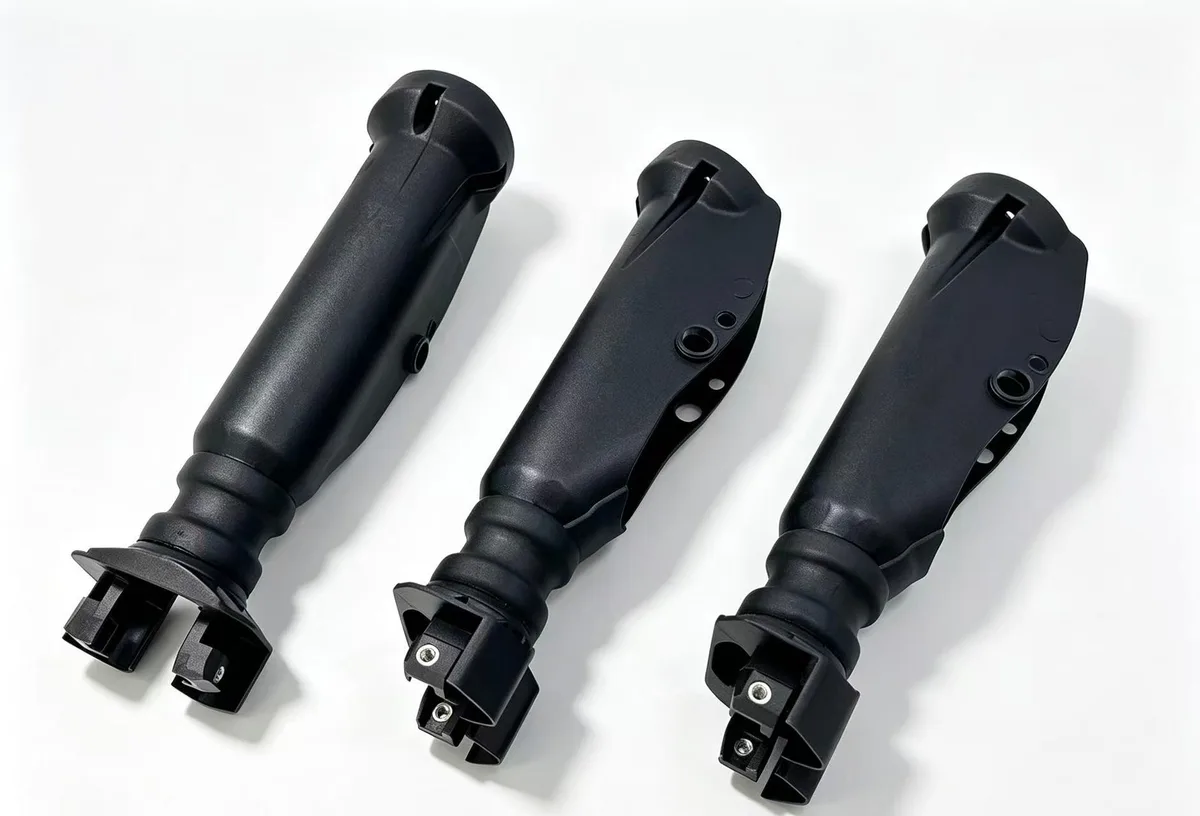

[2]TBD-T25P-BOOM-001 Centrifugal Sprinkler Shell for DJI Agras T25P—Centrifugal Sprinkler Shell for DJI Agras T25P$12.90

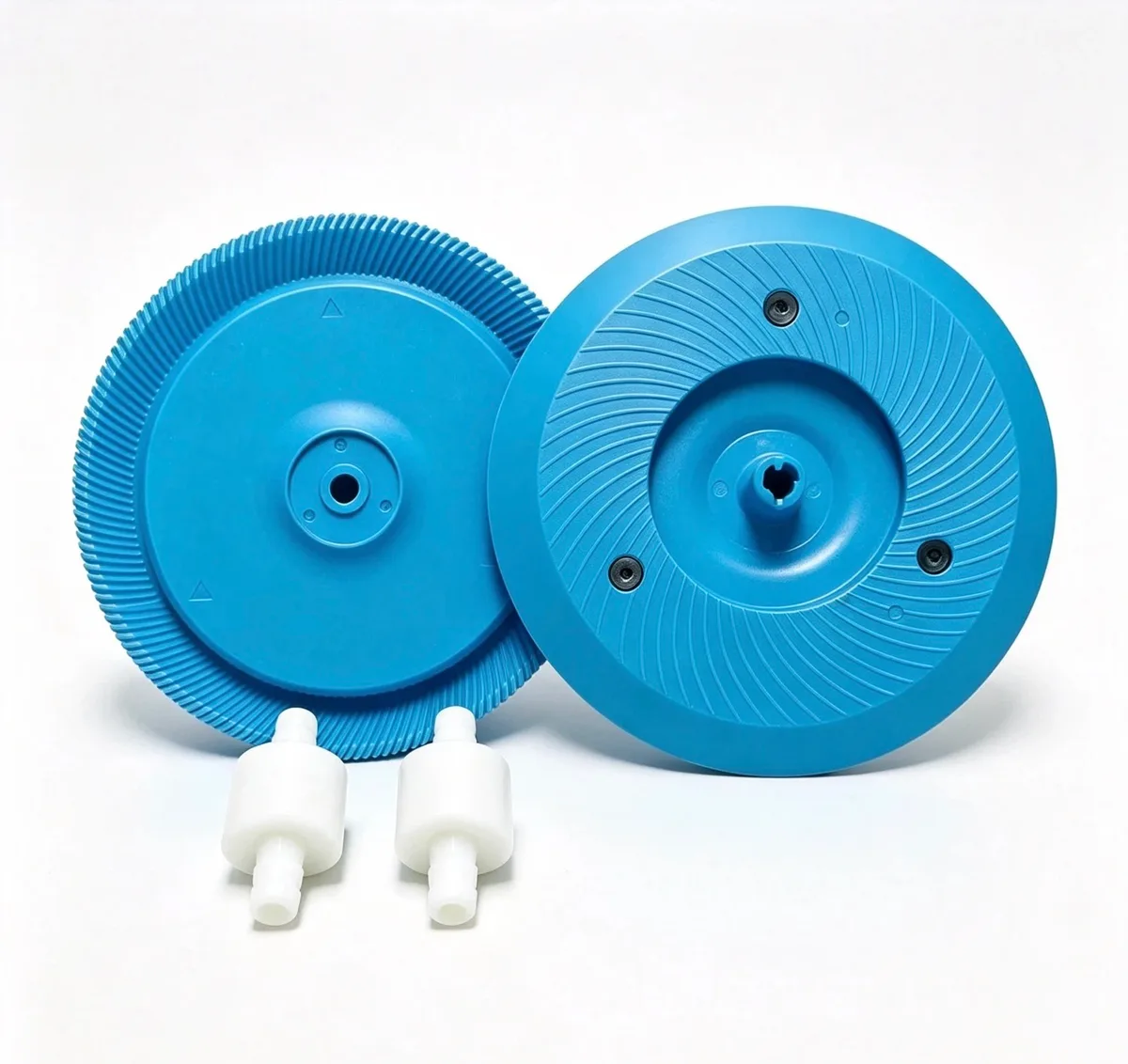

[3]TBD-T25P-DISC-001 Enlarged Tornado Centrifugal Spray Disc for DJI Agras T25P—Enlarged Tornado Centrifugal Spray Disc for DJI Agras T25PColor options available.$14.90

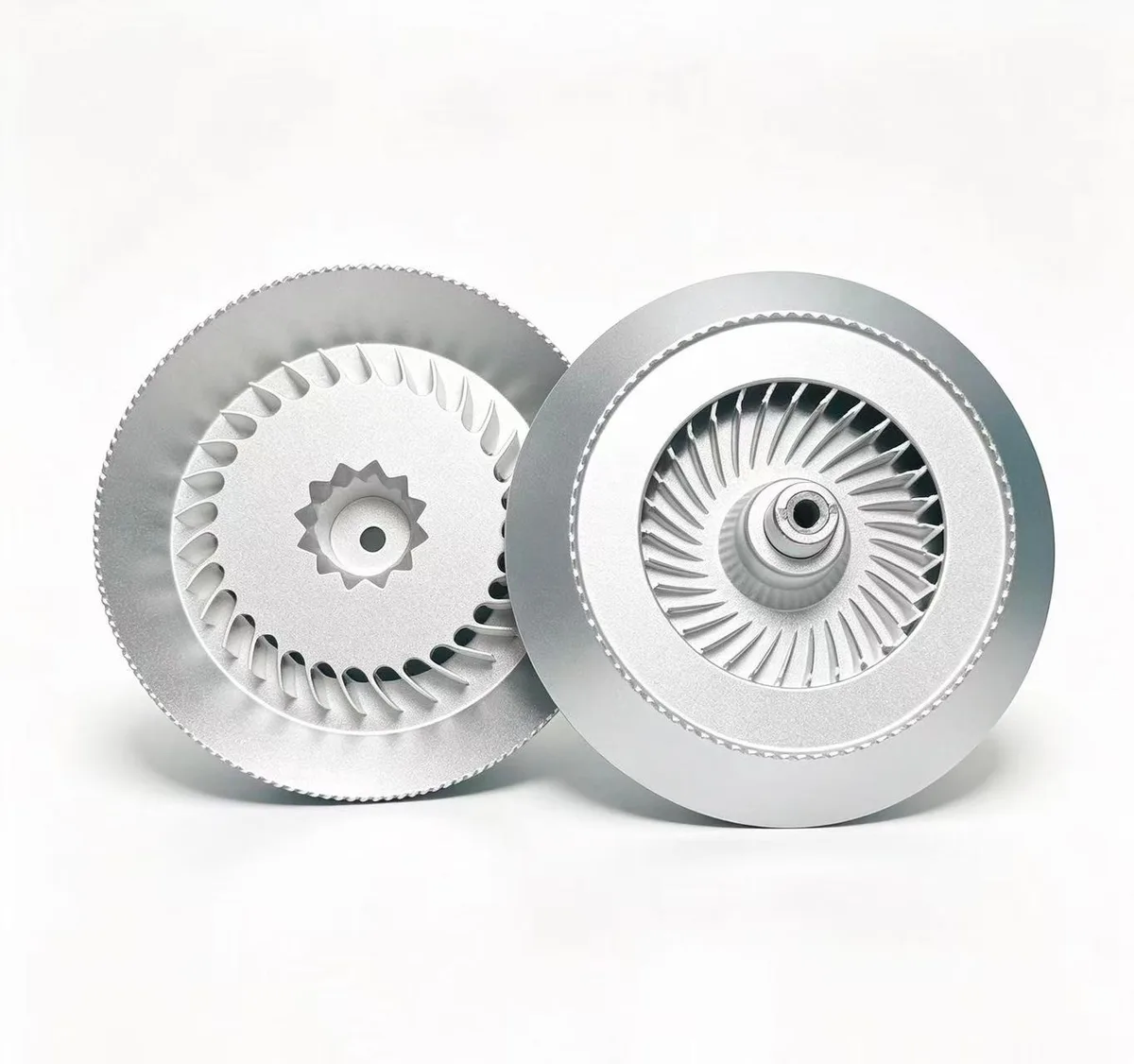

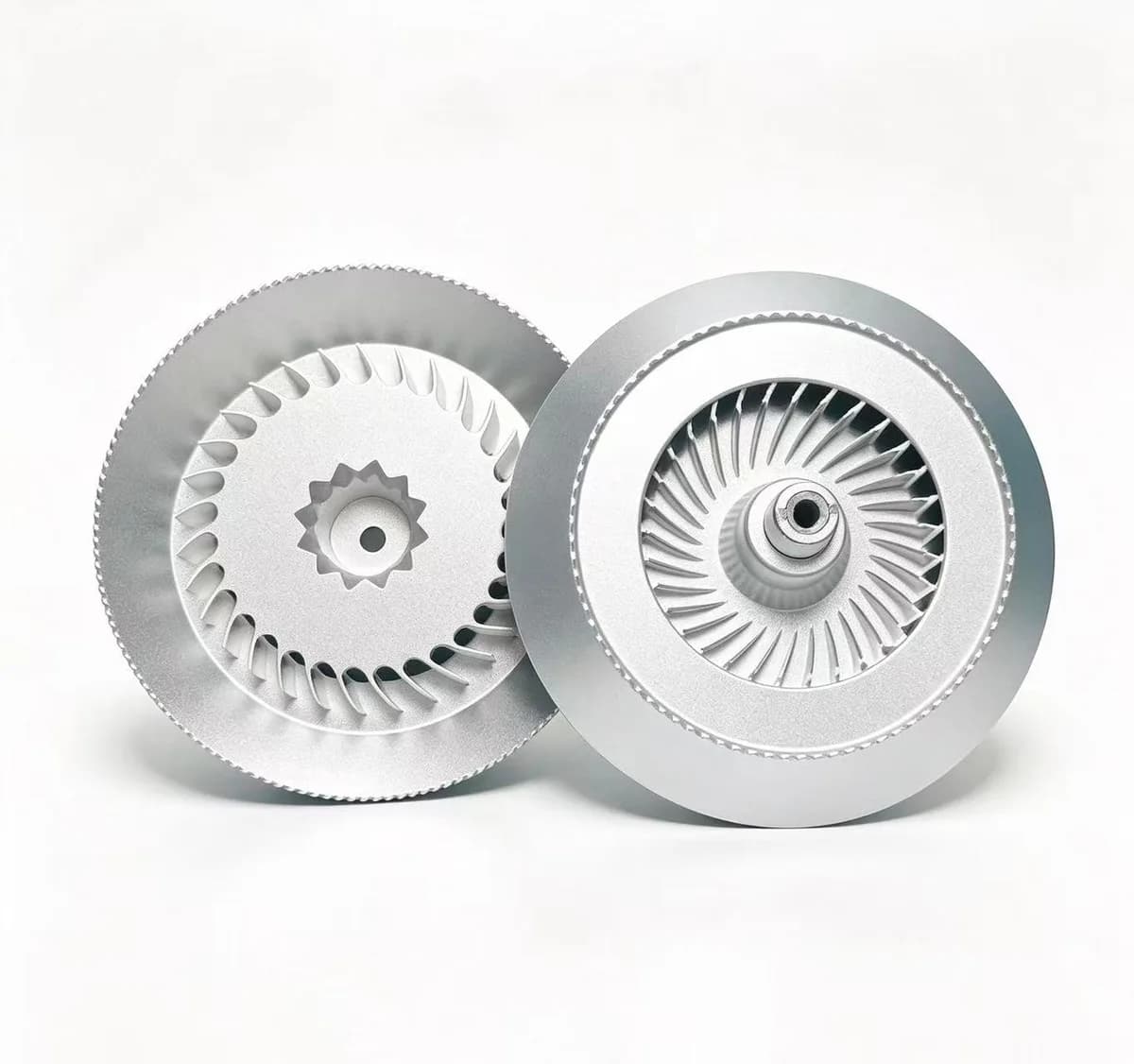

[8]TBD-T25P-DISC-002 Aluminum Alloy Centrifugal Spray Disc for DJI Agras T25P—Aluminum Alloy Centrifugal Spray Disc for DJI Agras T25PColor options available.$27.90

Centrifugal Motors

Ref#PhotoPart NumberDescriptionPriceQtyAction

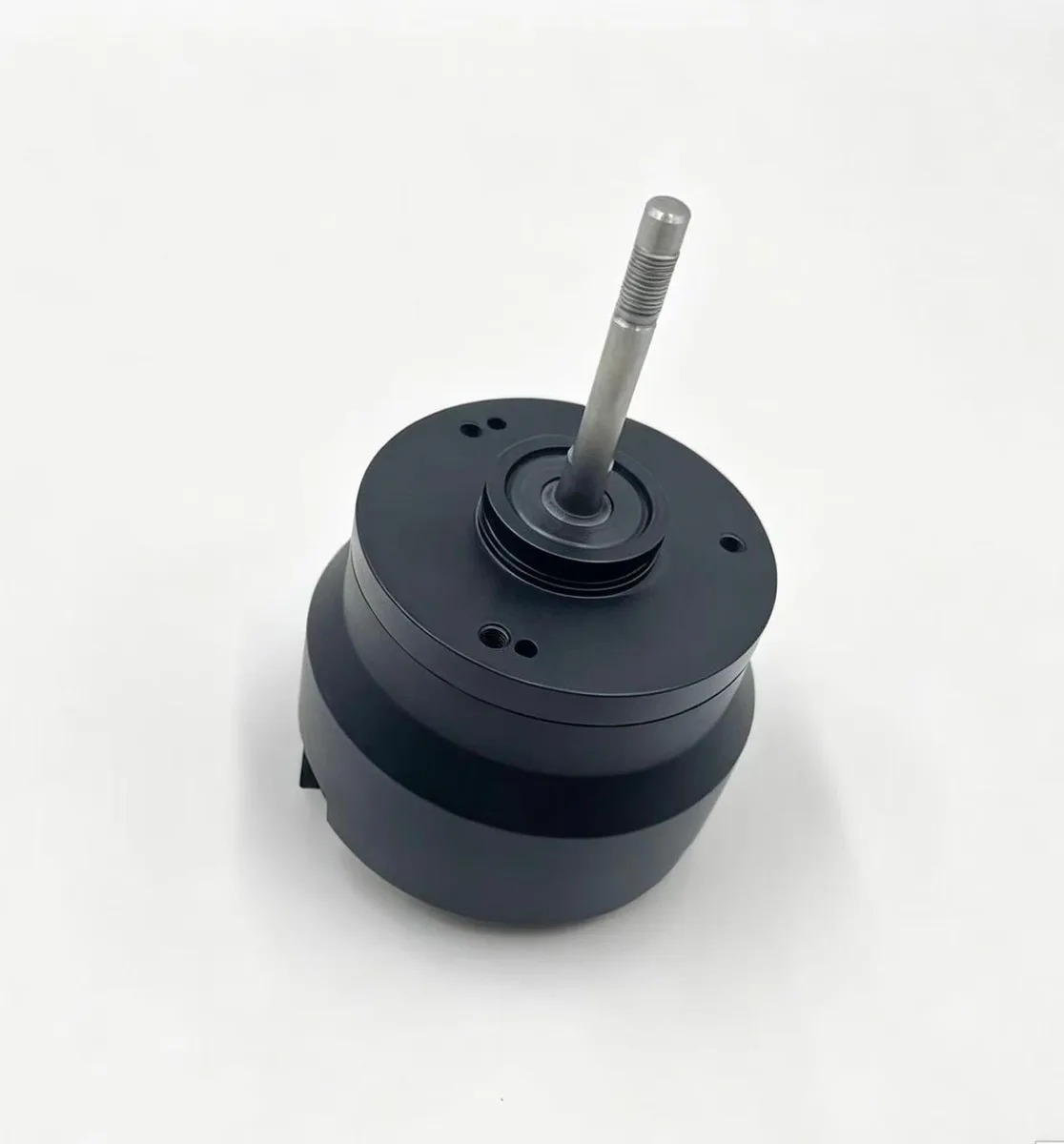

[4]TBD-T25P-CMOTOR-001 Centrifugal Motor for DJI Agras T25P—Centrifugal Motor for DJI Agras T25P$89.00

Filters

Ref#PhotoPart NumberDescriptionPriceQtyAction

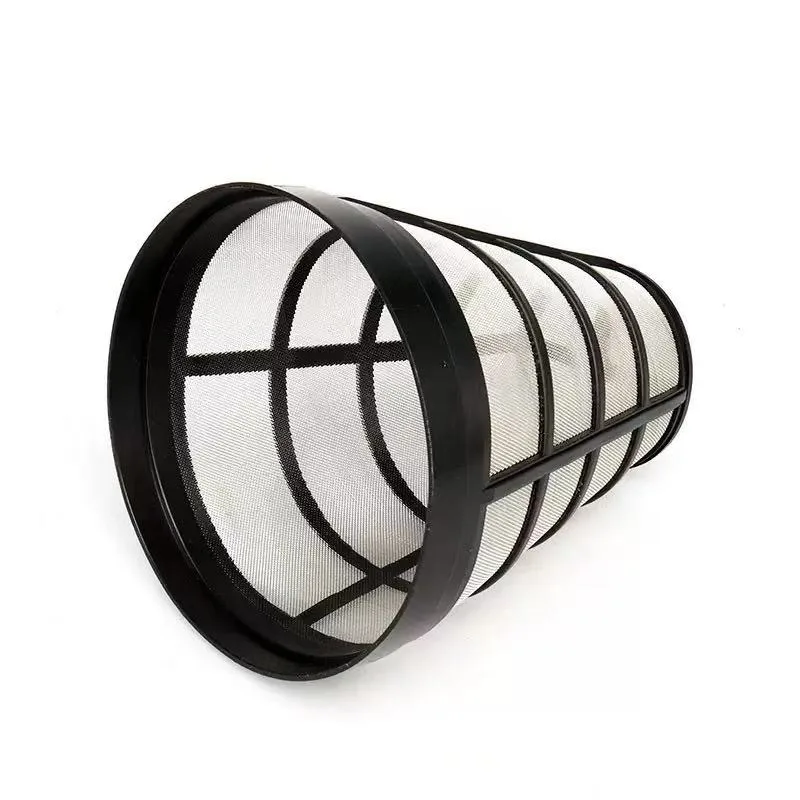

[5]TBD-T25P-INFILTER-001 Tank Inlet Filter for DJI Agras T25P—Tank Inlet Filter for DJI Agras T25P$9.90

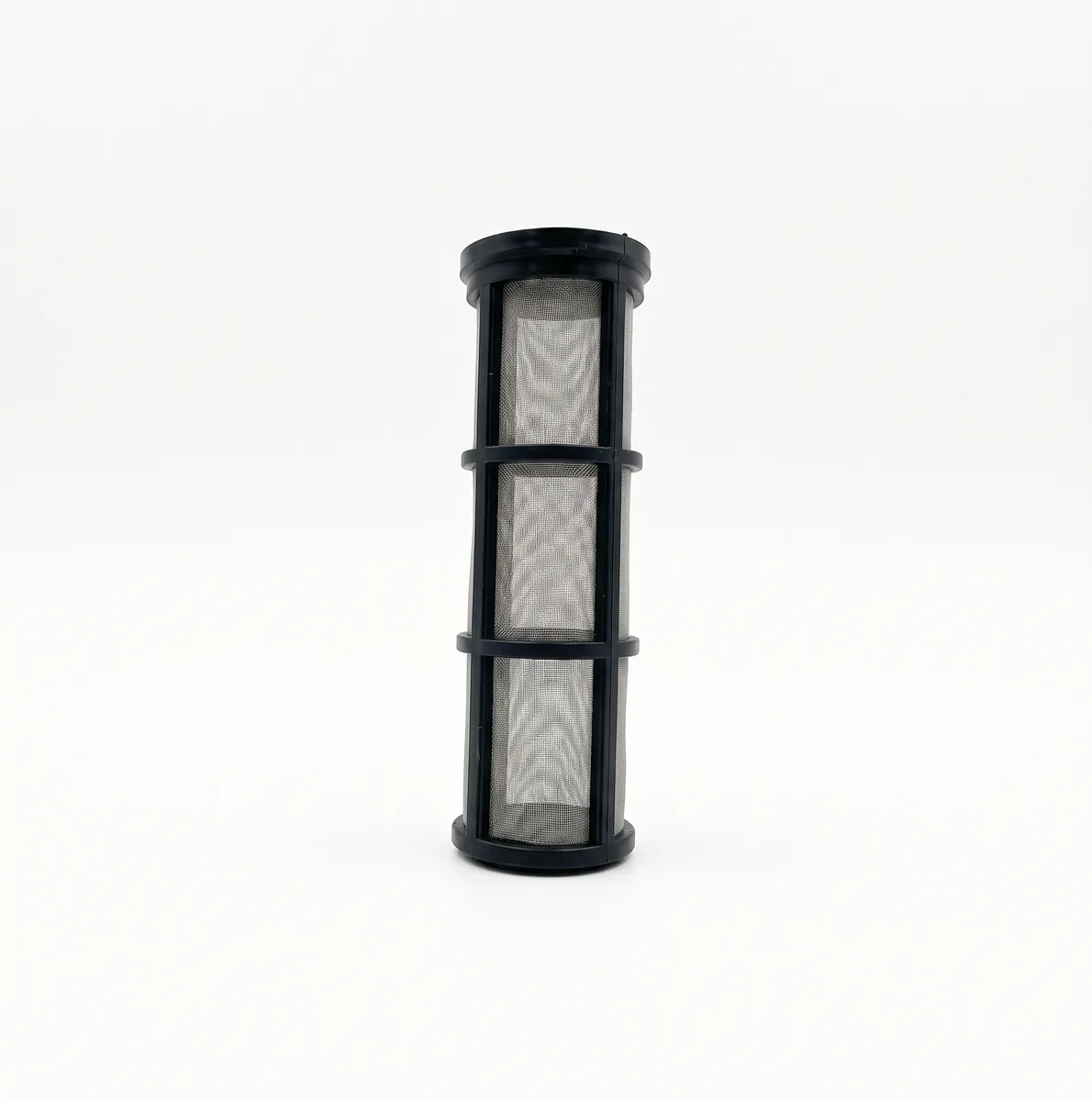

[6]TBD-T25P-OUTFILTER-001 Tank Outlet Filter for DJI Agras T25P—Tank Outlet Filter for DJI Agras T25P$11.90

Spreader Parts

Ref#PhotoPart NumberDescriptionPriceQtyAction

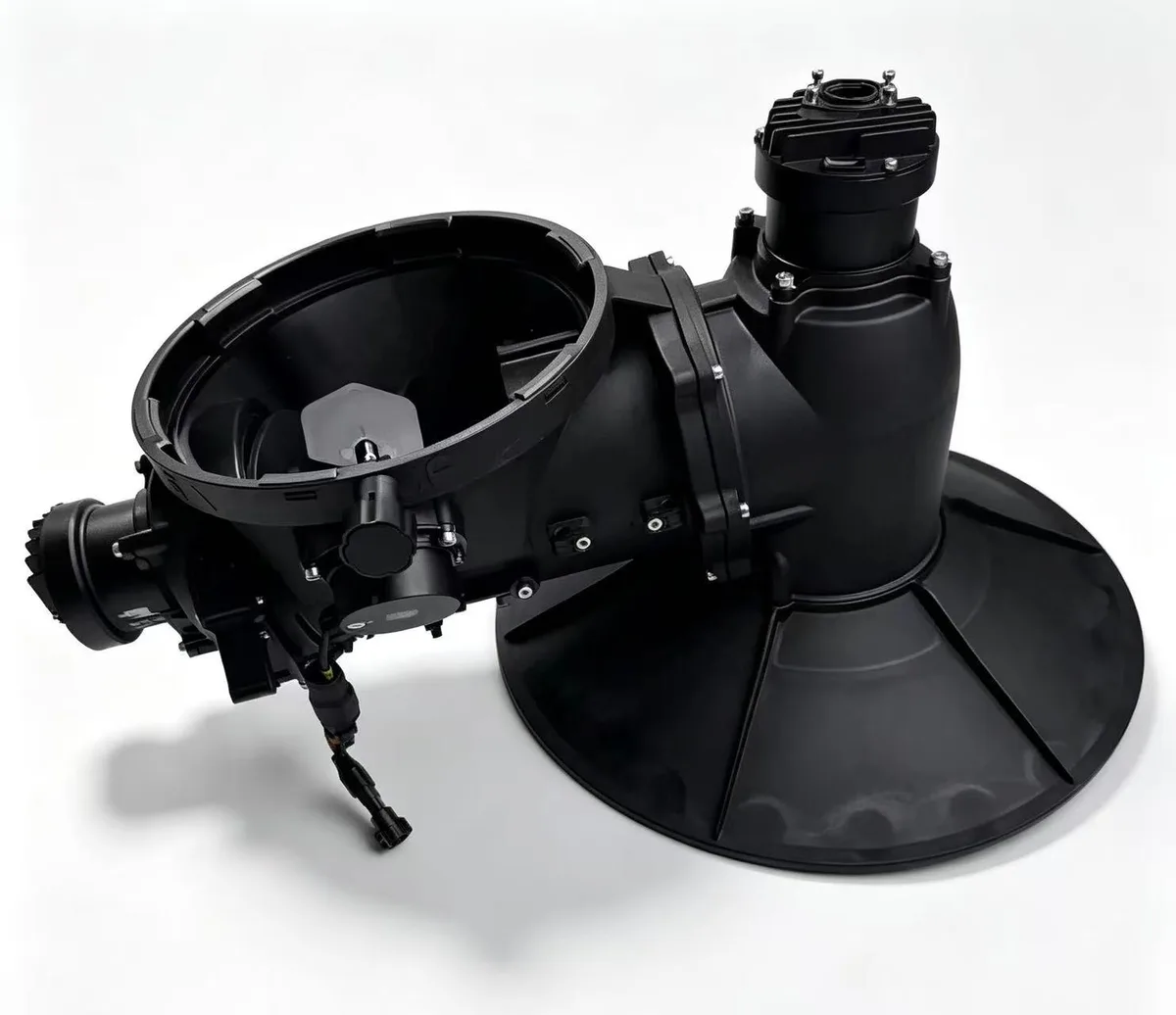

[7]TBD-T25P-SPREADER-001 Spreader for DJI Agras T25P—Spreader for DJI Agras T25P$569.00

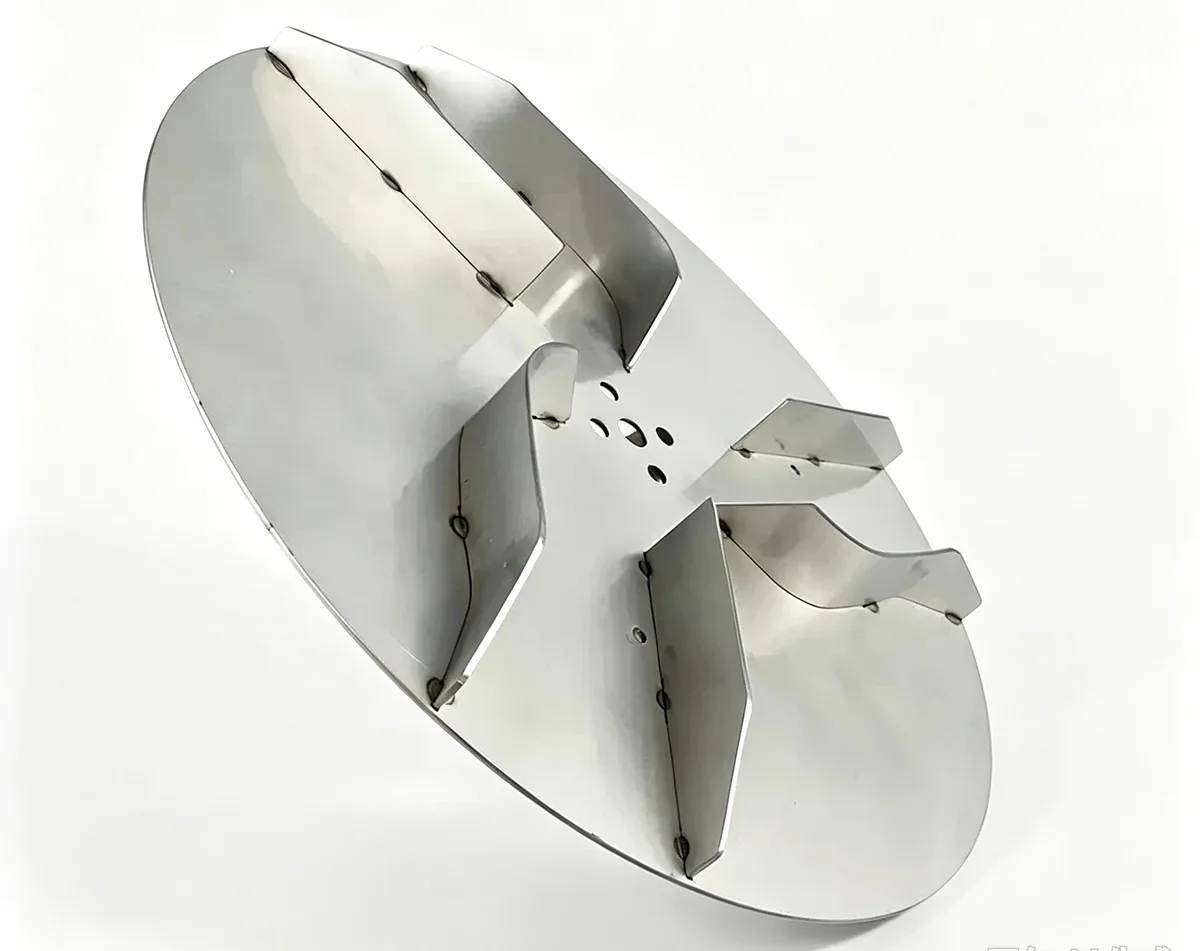

[9]TBD-T25P-SDISK-001 Stainless Steel Spinner Disc for DJI Agras T25P—Stainless Steel Spinner Disc for DJI Agras T25P$33.90
