DJI Agras T20P Spraying & Spreading System Parts

Exploded Diagram

Spraying & Spreading SystemDiagram coming soon

Agras T20P Diagrams

Parts List

Nozzles & Sprinklers

Ref#PhotoPart NumberDescriptionPriceQtyAction

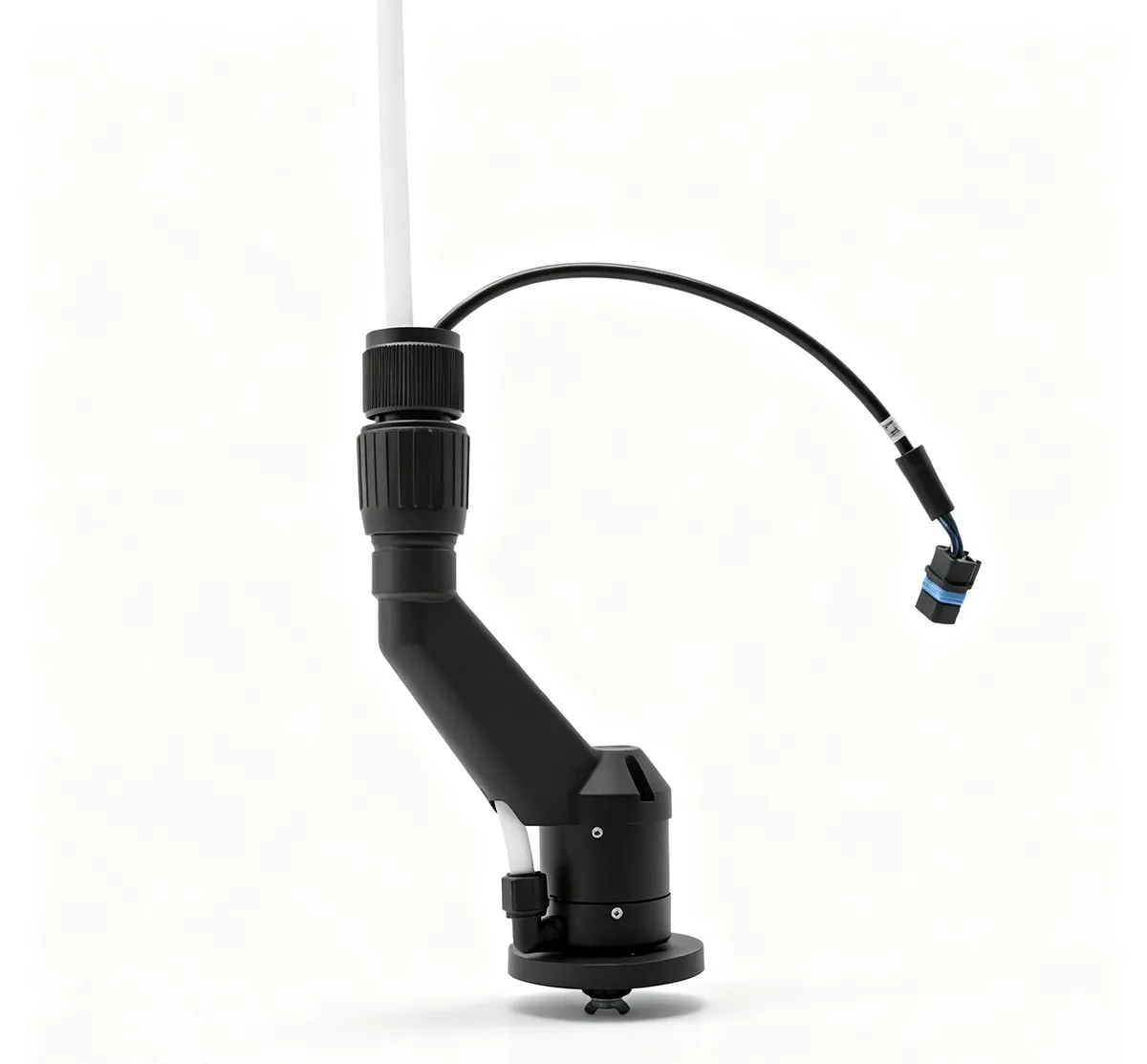

[2]TBD-T20P-SPRINKLER-001 Centrifugal Sprinkler Kit Assembly with Motor for DJI Agras T20P—Centrifugal Sprinkler Kit Assembly with Motor for DJI Agras T20P$169.00

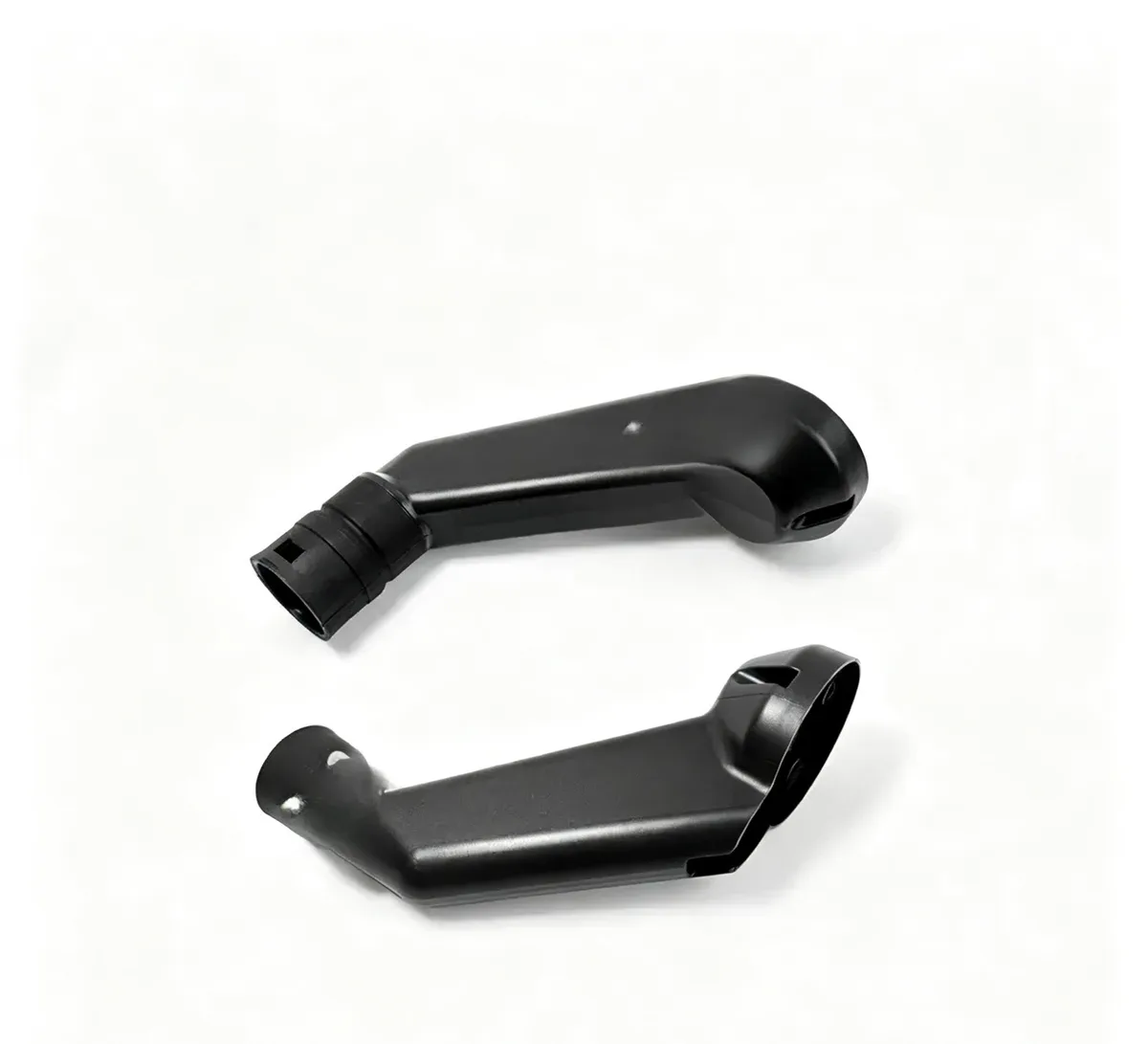

[3]TBD-T20P-BOOM-001 Centrifugal Sprinkler Shell for DJI Agras T20P—Centrifugal Sprinkler Shell for DJI Agras T20P$7.90

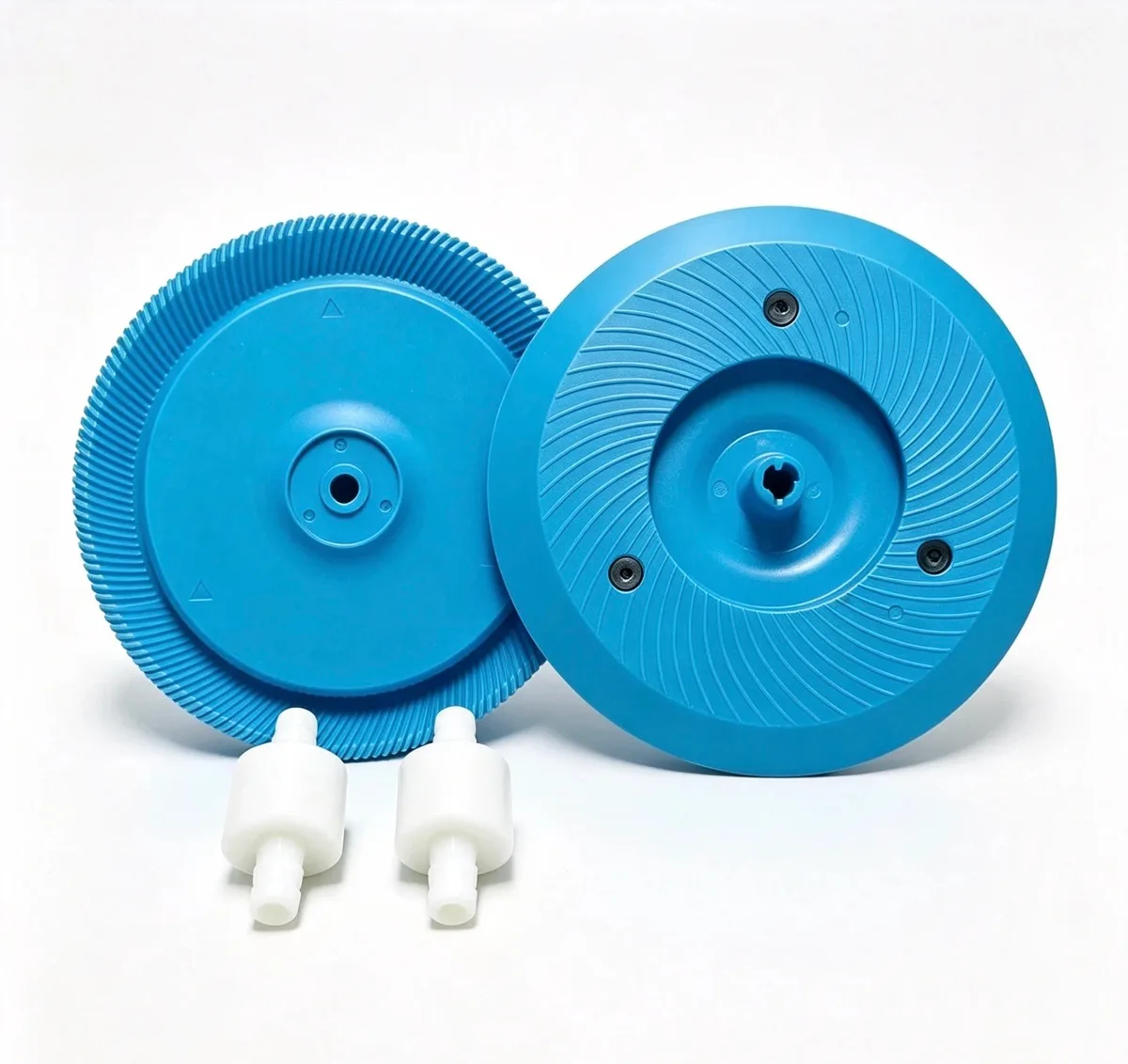

[4]TBD-T20P-DISC-001 Enlarged Tornado Centrifugal Spray Disc for DJI Agras T20P—Enlarged Tornado Centrifugal Spray Disc for DJI Agras T20PAvailable in blue or black.$12.90

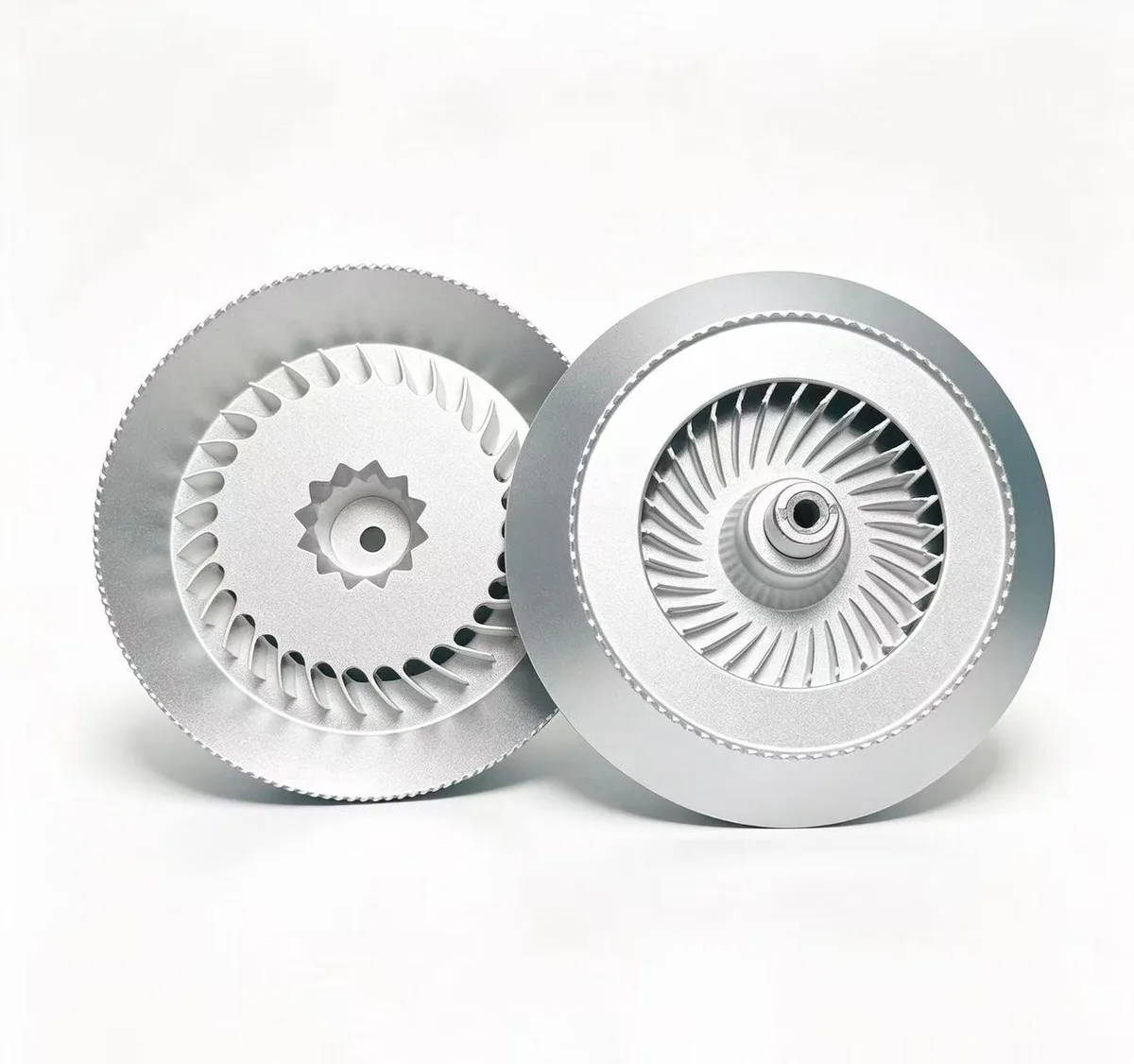

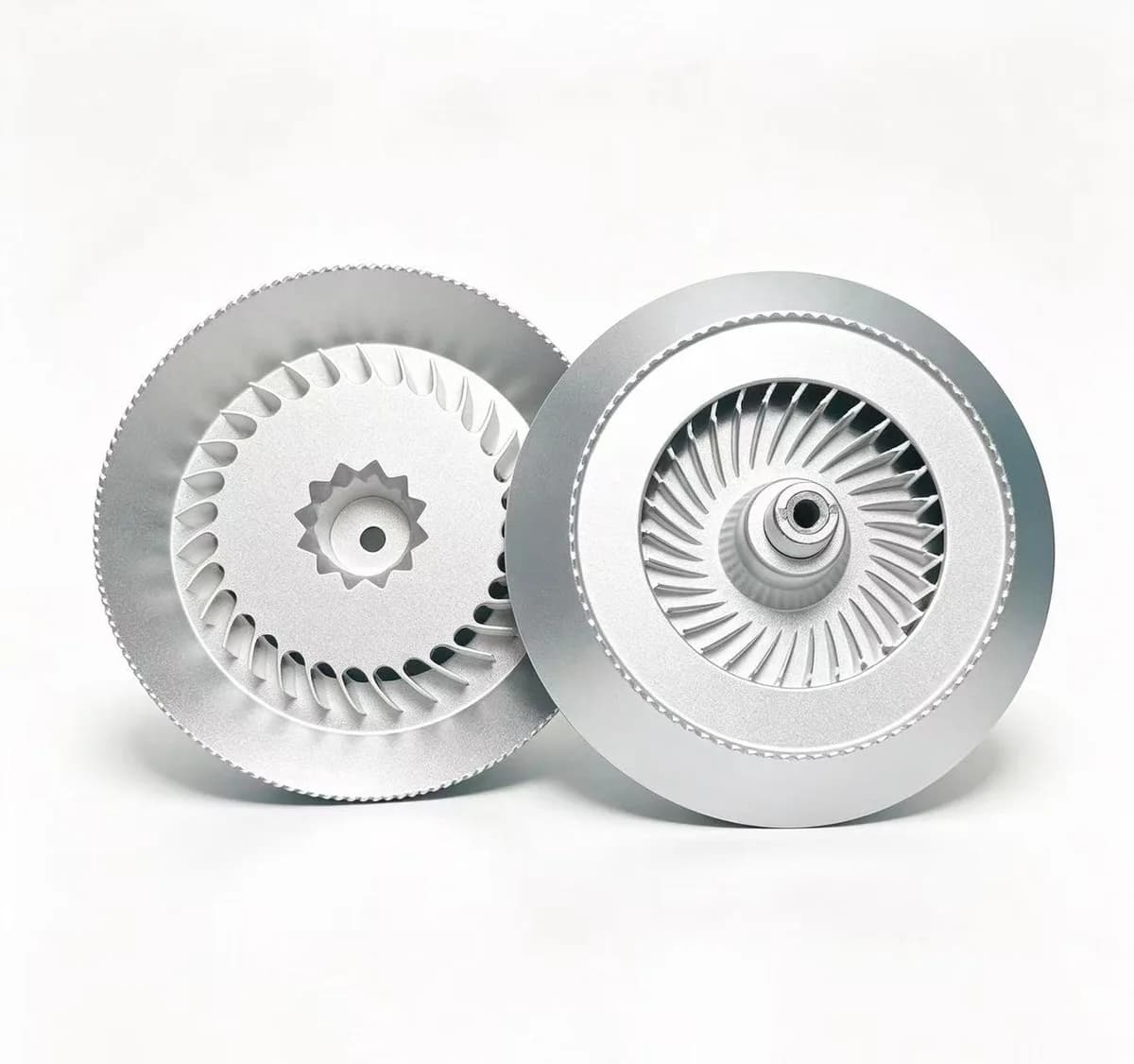

[9]TBD-T20P-DISC-002 Aluminum Alloy Centrifugal Spray Disc for DJI Agras T20P—Aluminum Alloy Centrifugal Spray Disc for DJI Agras T20PColor options available.$25.90

Centrifugal Motors

Ref#PhotoPart NumberDescriptionPriceQtyAction

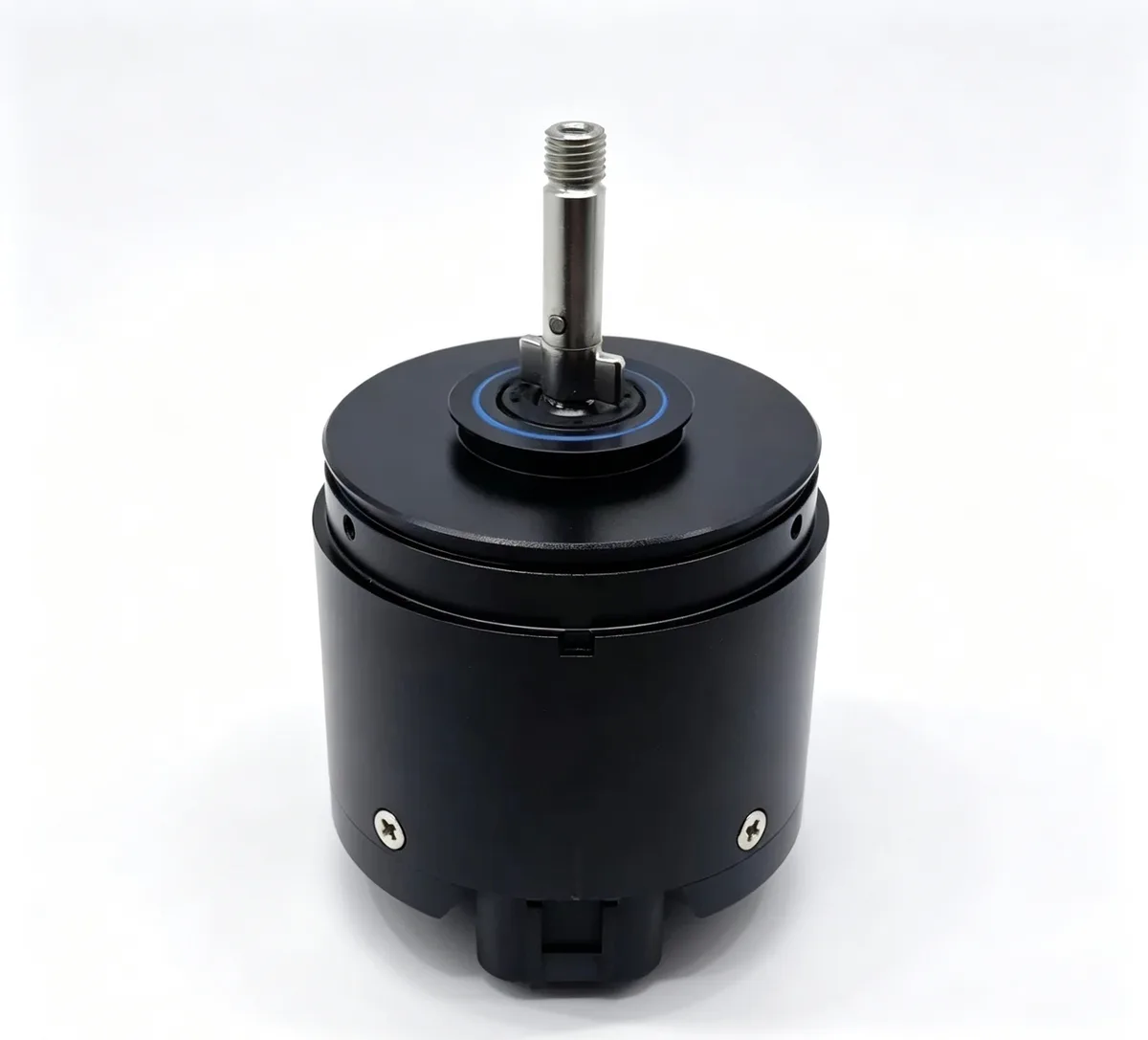

[5]TBD-T20P-CMOTOR-001 Centrifugal Motor for DJI Agras T20P—Centrifugal Motor for DJI Agras T20P$85.00

Filters

Ref#PhotoPart NumberDescriptionPriceQtyAction

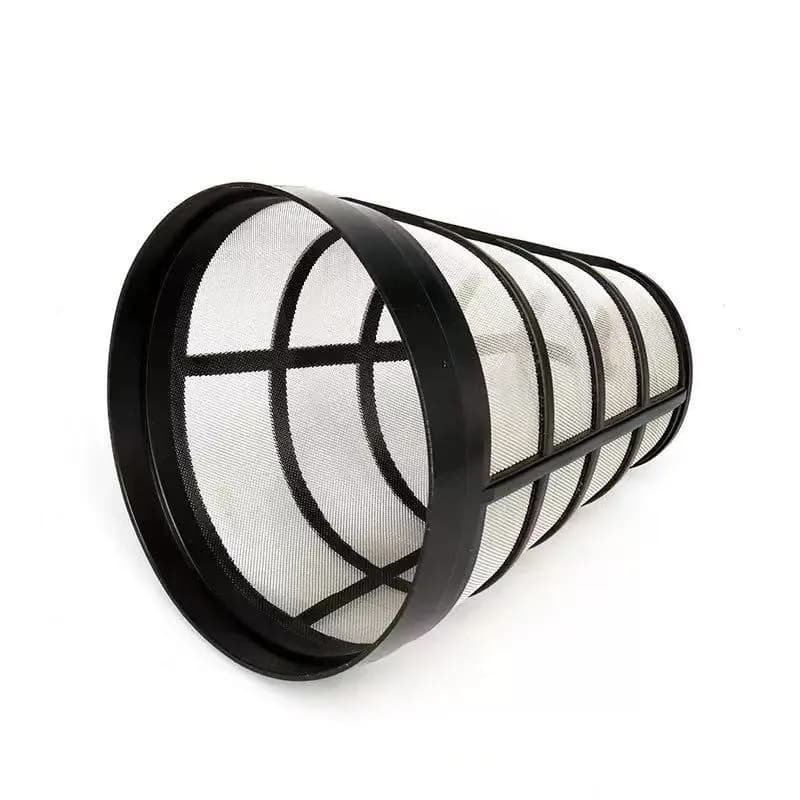

[6]TBD-T20P-INFILTER-001 Tank Inlet Filter for DJI Agras T20P—Tank Inlet Filter for DJI Agras T20P$7.90

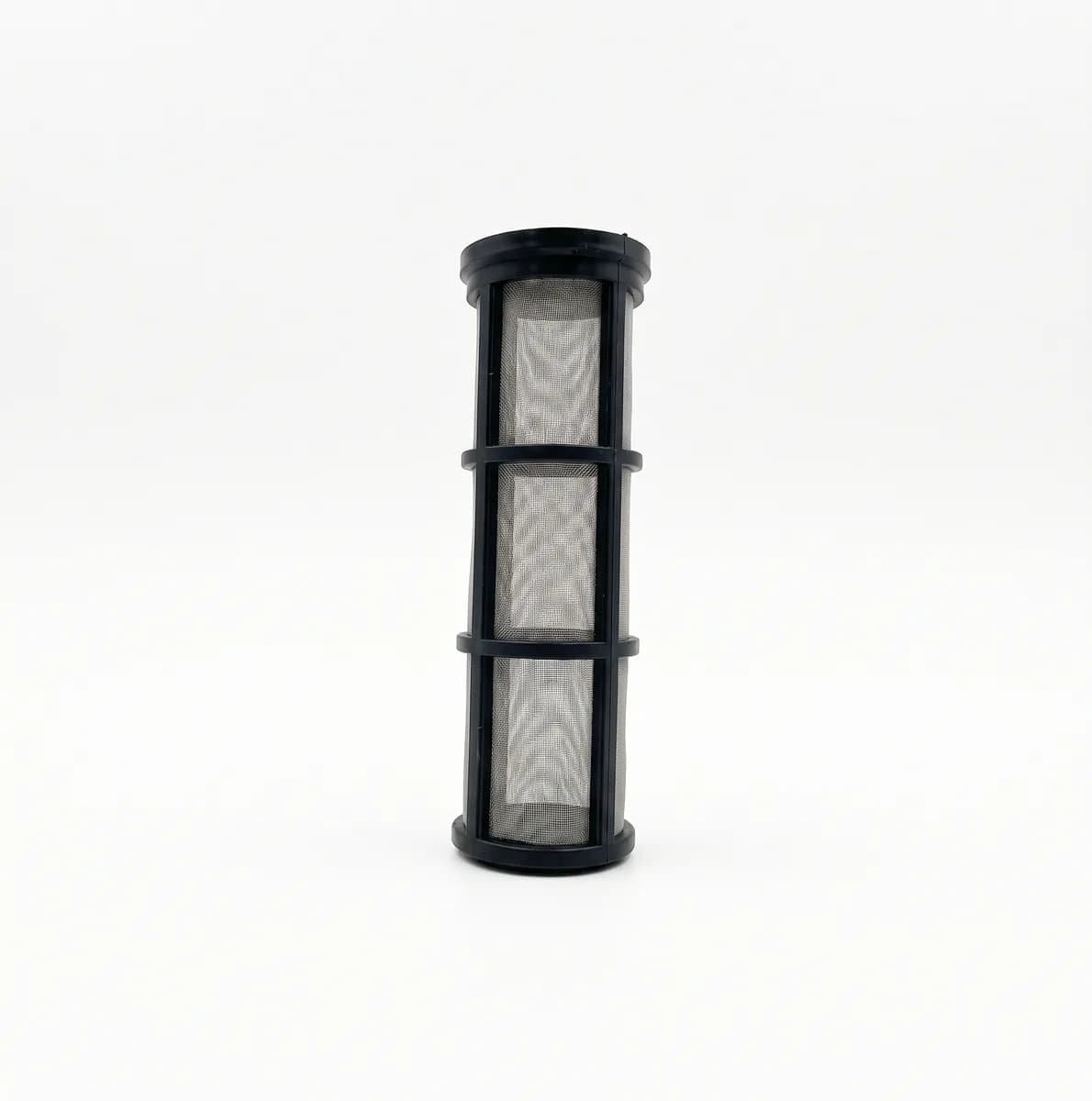

[7]TBD-T20P-OUTFILTER-001 Tank Outlet Filter for DJI Agras T20P—Tank Outlet Filter for DJI Agras T20P$10.90

Spreader Parts

Ref#PhotoPart NumberDescriptionPriceQtyAction
[8]TBD-T20P-SPREADER-001 Spreader for DJI Agras T20P—Spreader for DJI Agras T20P$769.00

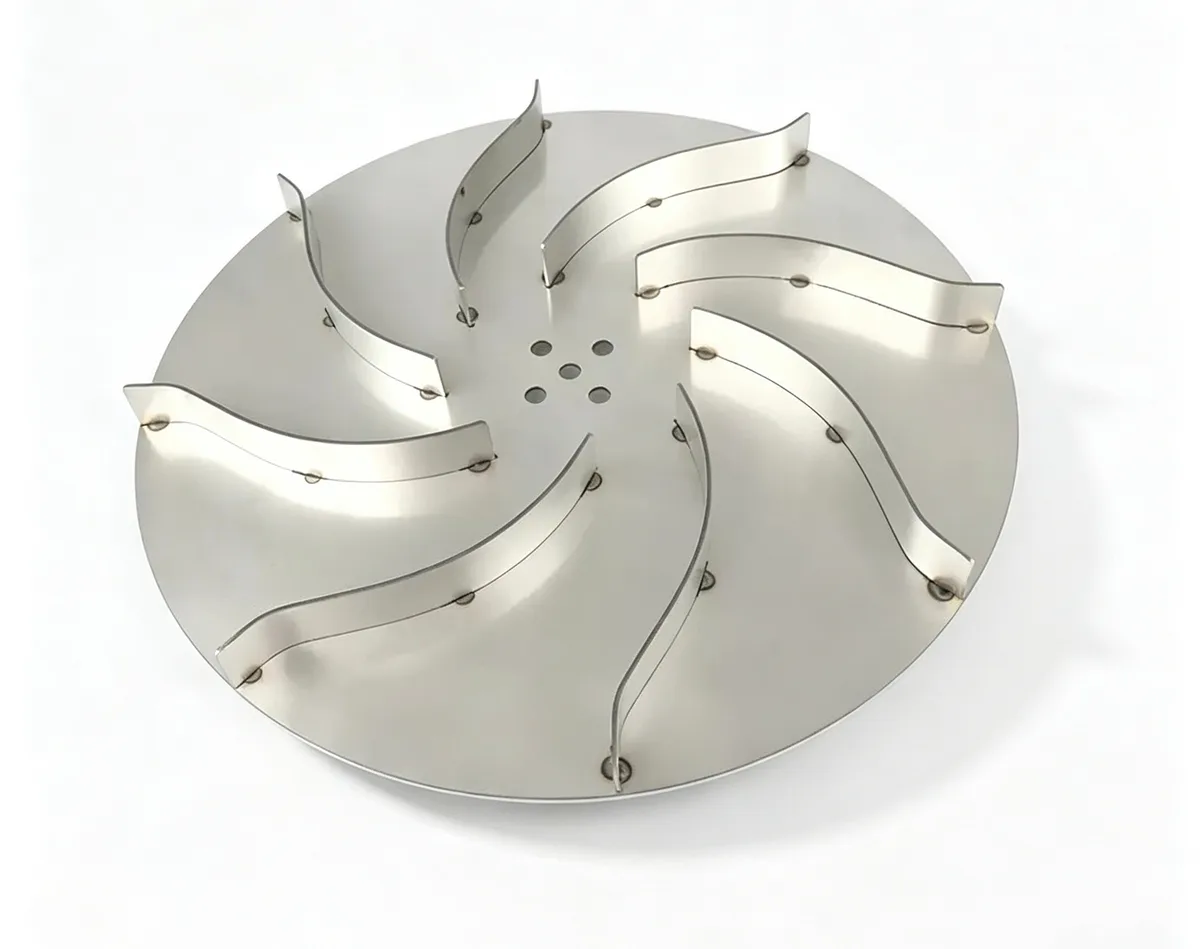

[10]TBD-T20P-SDISK-001 Stainless Steel Spinner Disc for DJI Agras T20P—Stainless Steel Spinner Disc for DJI Agras T20P$25.90
