DJI Agras T20P Propulsion System Parts

Exploded Diagram

Propulsion SystemDiagram coming soon

Agras T20P Diagrams

Parts List

Propellers

Ref#PhotoPart NumberDescriptionPriceQtyAction

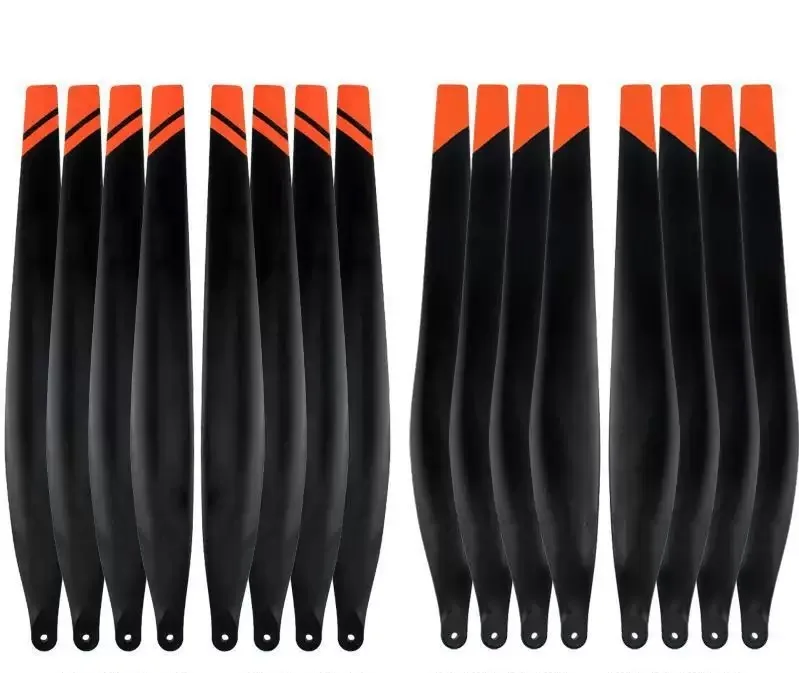

[1]DJI-T20P-PRP-01-CWU High Carbon Propeller 5413/5415 CW Upper Pair for DJI Agras T20PDJI-T20P-PRP-01-CWUOEM ref DJI-T20PT40T50-PRP-01High Carbon Propeller 5413/5415 CW Upper Pair for DJI Agras T20P2 blades.$29.90
[1]DJI-T20P-PRP-01-CWL High Carbon Propeller 5413/5415 CW Lower Pair for DJI Agras T20PDJI-T20P-PRP-01-CWLOEM ref DJI-T20PT40T50-PRP-01High Carbon Propeller 5413/5415 CW Lower Pair for DJI Agras T20P2 blades.$29.90
[1]DJI-T20P-PRP-01-CCWU High Carbon Propeller 5413/5415 CCW Upper Pair for DJI Agras T20PDJI-T20P-PRP-01-CCWUOEM ref DJI-T20PT40T50-PRP-01High Carbon Propeller 5413/5415 CCW Upper Pair for DJI Agras T20P2 blades.$29.90
[1]DJI-T20P-PRP-01-CCWL High Carbon Propeller 5413/5415 CCW Lower Pair for DJI Agras T20PDJI-T20P-PRP-01-CCWLOEM ref DJI-T20PT40T50-PRP-01High Carbon Propeller 5413/5415 CCW Lower Pair for DJI Agras T20P2 blades.$29.90

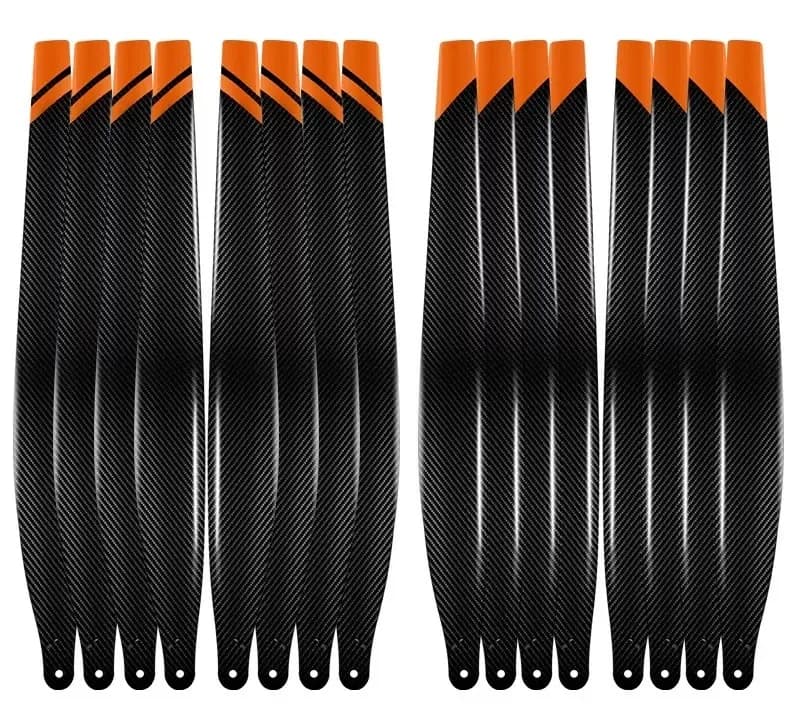

[4]TBD-T20P-PROPELLER-001-CWU Carbon Fiber Propeller 5413/5415 CW Upper Pair for DJI Agras T20P—Carbon Fiber Propeller 5413/5415 CW Upper Pair for DJI Agras T20P2 blades.$64.90
[4]TBD-T20P-PROPELLER-001-CWL Carbon Fiber Propeller 5413/5415 CW Lower Pair for DJI Agras T20P—Carbon Fiber Propeller 5413/5415 CW Lower Pair for DJI Agras T20P2 blades.$64.90
[4]TBD-T20P-PROPELLER-001-CCWU Carbon Fiber Propeller 5413/5415 CCW Upper Pair for DJI Agras T20P—Carbon Fiber Propeller 5413/5415 CCW Upper Pair for DJI Agras T20P2 blades.$64.90
[4]TBD-T20P-PROPELLER-001-CCWL Carbon Fiber Propeller 5413/5415 CCW Lower Pair for DJI Agras T20P—Carbon Fiber Propeller 5413/5415 CCW Lower Pair for DJI Agras T20P2 blades.$64.90
[5]TBD-T20P-PROPELLER-002-CWU White Heat-Resistant Reinforced Propeller 5413/5415 CW Upper Pair for DJI Agras T20P—White Heat-Resistant Reinforced Propeller 5413/5415 CW Upper Pair for DJI Agras T20P2 blades.$34.90
[5]TBD-T20P-PROPELLER-002-CWL White Heat-Resistant Reinforced Propeller 5413/5415 CW Lower Pair for DJI Agras T20P—White Heat-Resistant Reinforced Propeller 5413/5415 CW Lower Pair for DJI Agras T20P2 blades.$34.90
[5]TBD-T20P-PROPELLER-002-CCWU White Heat-Resistant Reinforced Propeller 5413/5415 CCW Upper Pair for DJI Agras T20P—White Heat-Resistant Reinforced Propeller 5413/5415 CCW Upper Pair for DJI Agras T20P2 blades.$34.90

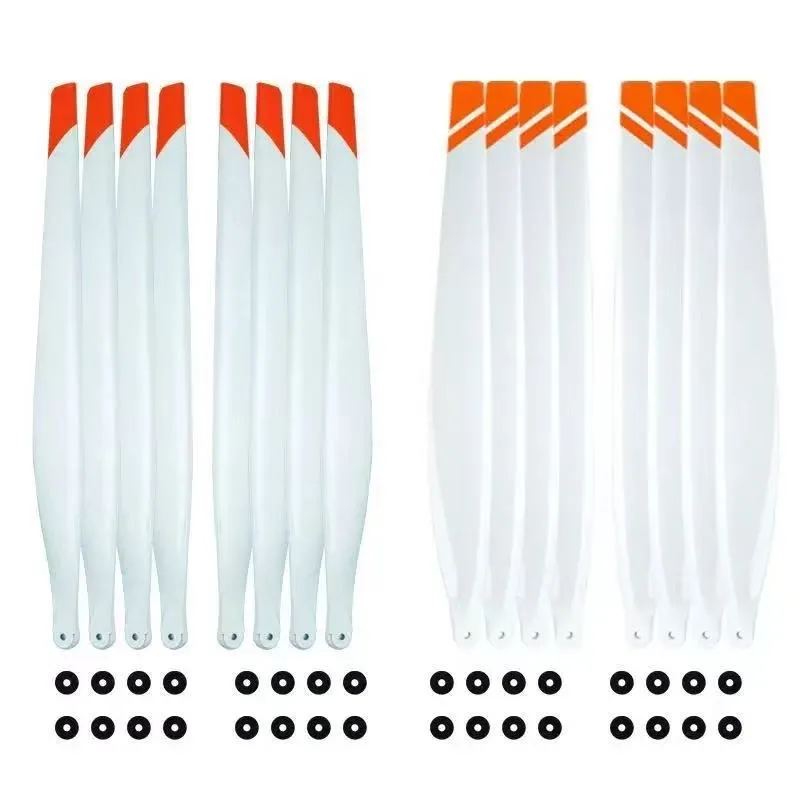

[5]TBD-T20P-PROPELLER-002-CCWL White Heat-Resistant Reinforced Propeller 5413/5415 CCW Lower Pair for DJI Agras T20P—White Heat-Resistant Reinforced Propeller 5413/5415 CCW Lower Pair for DJI Agras T20P2 blades.$34.90

Propulsion Motors

Ref#PhotoPart NumberDescriptionPriceQtyAction

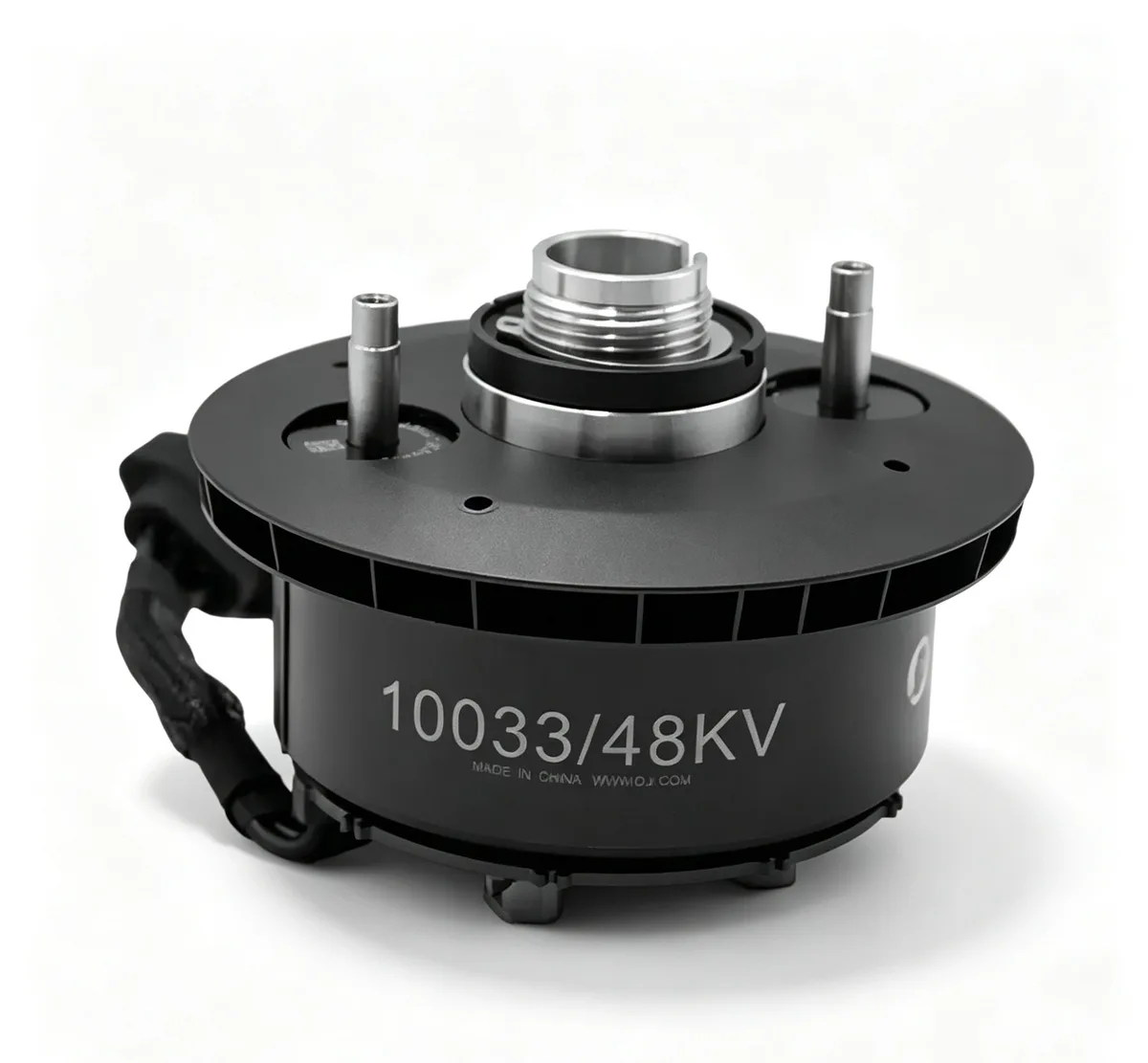

[6]TBD-T20P-MOTOR-001 Brushless Propulsion Motor 10033 48KV for DJI Agras T20P—Brushless Propulsion Motor 10033 48KV for DJI Agras T20P$179.00

ESCs

Ref#PhotoPart NumberDescriptionPriceQtyAction
[3]TBD-T20P-ESC-001 Propulsion ESC for DJI Agras T20P—Propulsion ESC for DJI Agras T20P$145.00

Propeller Adapters & Spacers

Ref#PhotoPart NumberDescriptionPriceQtyAction

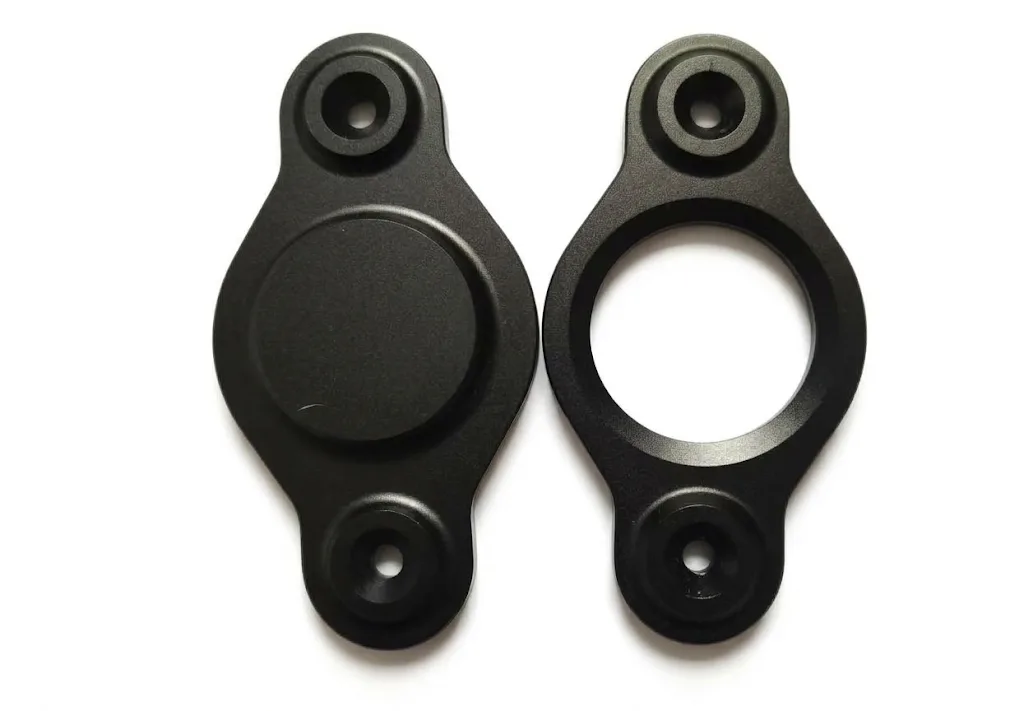

[7]TBD-T20P-CLAMP-001 Lower Anti-Loosening Propeller Clamp for DJI Agras T20P—Lower Anti-Loosening Propeller Clamp for DJI Agras T20P$13.90

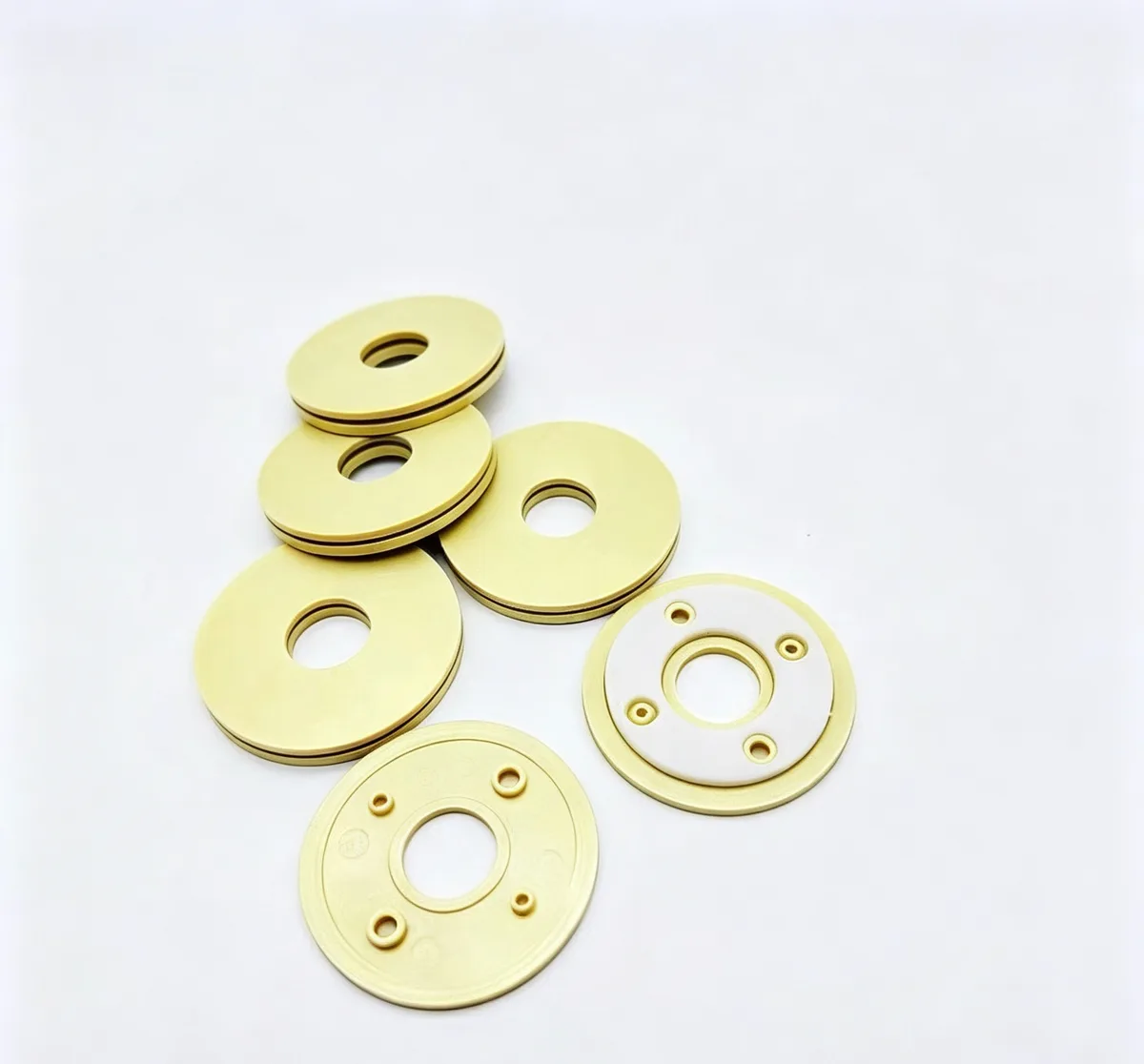

[8]TBD-T20P-WASHER-001 Propeller Clamp Sandwich Washer for DJI Agras T20P—Propeller Clamp Sandwich Washer for DJI Agras T20P16 pieces per pack.$8.90
[9]TBD-T20P-CLAMP-002 Upper Anti-Loosening Propeller Clamp for DJI Agras T20P—Upper Anti-Loosening Propeller Clamp for DJI Agras T20P$13.90
