DJI Agras T60X Propulsion System Parts

Exploded Diagram

Propulsion SystemDiagram coming soon

Agras T60X Diagrams

Parts List

Propellers

Ref#PhotoPart NumberDescriptionPriceQtyAction
[1]TBD-T60X-PROPELLER-001-CWU High Carbon Propeller 5627 CW Upper Pair for DJI Agras T60X—High Carbon Propeller 5627 CW Upper Pair for DJI Agras T60X2 blades.$36.90
[1]TBD-T60X-PROPELLER-001-CWL High Carbon Propeller 5627 CW Lower Pair for DJI Agras T60X—High Carbon Propeller 5627 CW Lower Pair for DJI Agras T60X2 blades.$36.90
[1]TBD-T60X-PROPELLER-001-CCWU High Carbon Propeller 5627 CCW Upper Pair for DJI Agras T60X—High Carbon Propeller 5627 CCW Upper Pair for DJI Agras T60X2 blades.$36.90

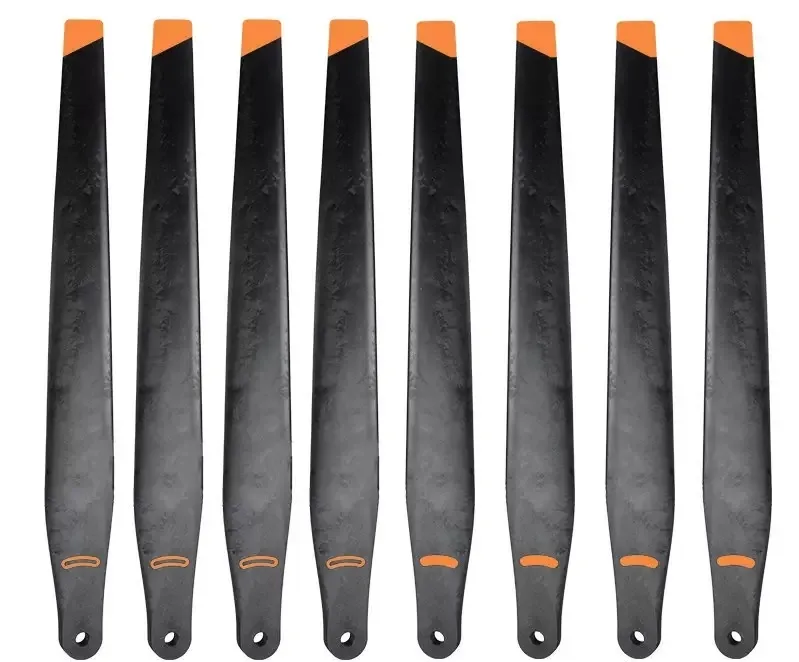

[1]TBD-T60X-PROPELLER-001-CCWL High Carbon Propeller 5627 CCW Lower Pair for DJI Agras T60X—High Carbon Propeller 5627 CCW Lower Pair for DJI Agras T60X2 blades.$36.90
[2]TBD-T60X-PROPELLER-002-CWU Carbon Fiber Propeller 5627 CW Upper Pair for DJI Agras T60X—Carbon Fiber Propeller 5627 CW Upper Pair for DJI Agras T60X2 blades.$72.90

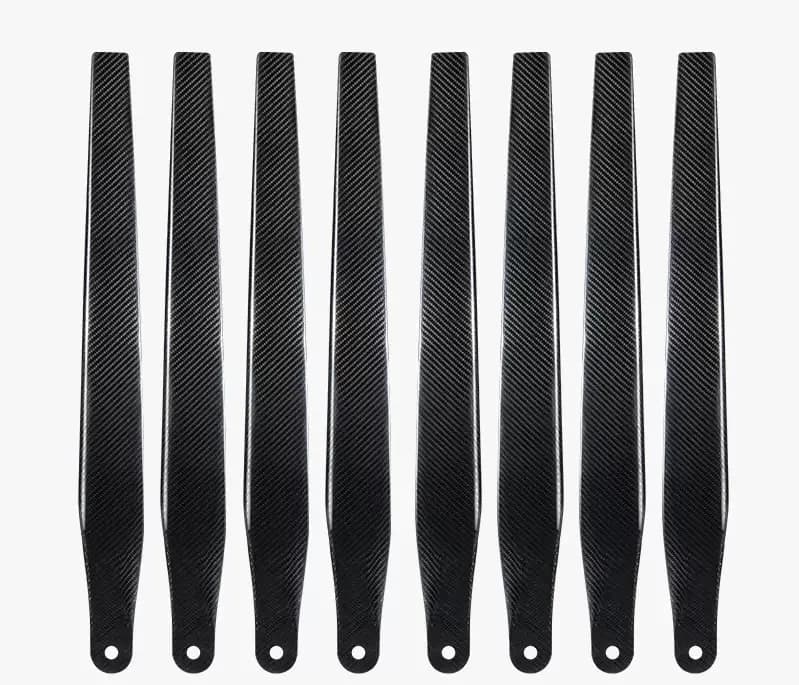

[2]TBD-T60X-PROPELLER-002-CWL Carbon Fiber Propeller 5627 CW Lower Pair for DJI Agras T60X—Carbon Fiber Propeller 5627 CW Lower Pair for DJI Agras T60X2 blades.$72.90
[2]TBD-T60X-PROPELLER-002-CCWU Carbon Fiber Propeller 5627 CCW Upper Pair for DJI Agras T60X—Carbon Fiber Propeller 5627 CCW Upper Pair for DJI Agras T60X2 blades.$72.90
[2]TBD-T60X-PROPELLER-002-CCWL Carbon Fiber Propeller 5627 CCW Lower Pair for DJI Agras T60X—Carbon Fiber Propeller 5627 CCW Lower Pair for DJI Agras T60X2 blades.$72.90

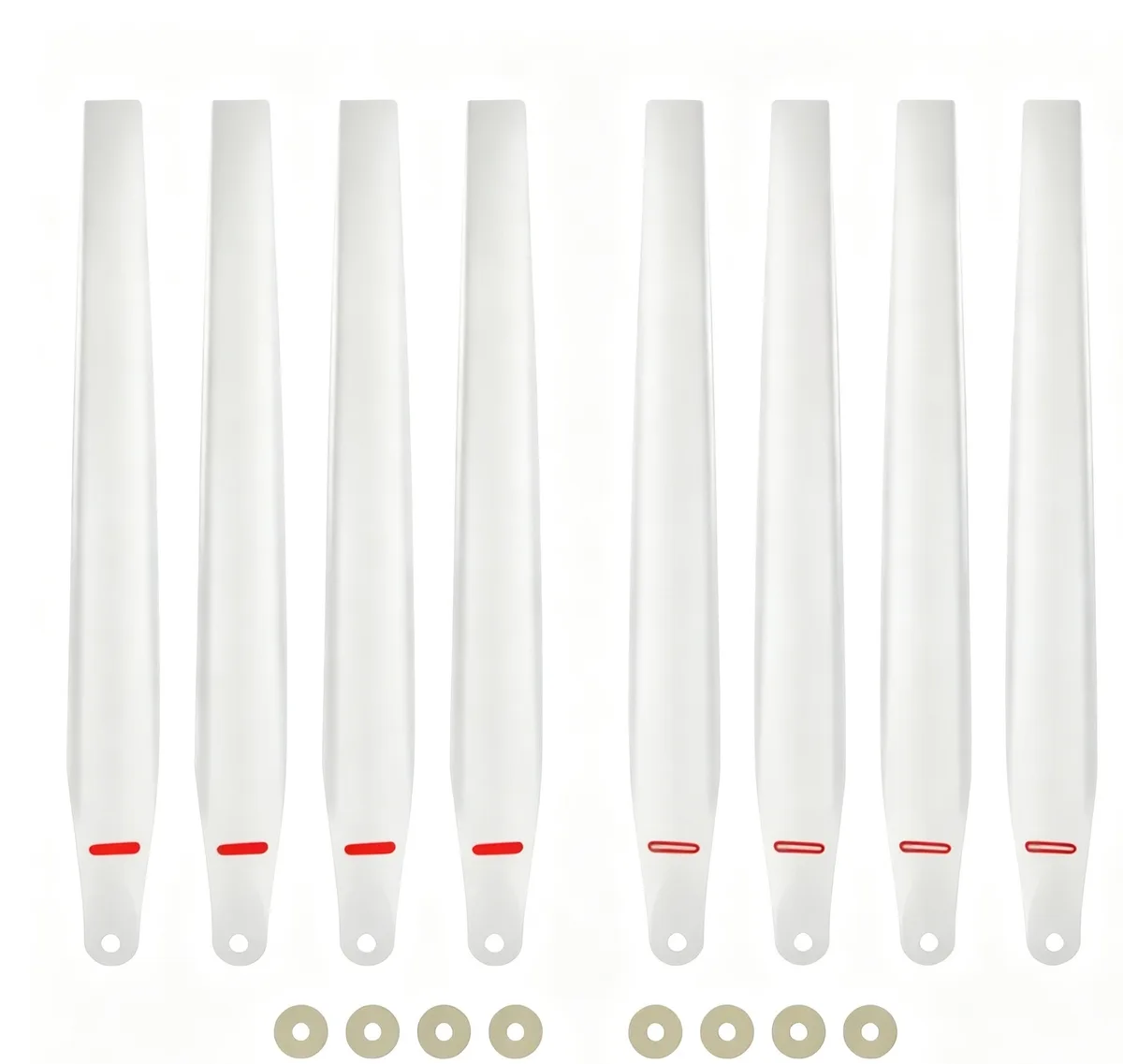

[3]TBD-T60X-PROPELLER-003-CWU White High Carbon Propeller 5627 CW Upper Pair for DJI Agras T60X—White High Carbon Propeller 5627 CW Upper Pair for DJI Agras T60X2 blades.$39.90
[3]TBD-T60X-PROPELLER-003-CWL White High Carbon Propeller 5627 CW Lower Pair for DJI Agras T60X—White High Carbon Propeller 5627 CW Lower Pair for DJI Agras T60X2 blades.$39.90
[3]TBD-T60X-PROPELLER-003-CCWU White High Carbon Propeller 5627 CCW Upper Pair for DJI Agras T60X—White High Carbon Propeller 5627 CCW Upper Pair for DJI Agras T60X2 blades.$39.90
[3]TBD-T60X-PROPELLER-003-CCWL White High Carbon Propeller 5627 CCW Lower Pair for DJI Agras T60X—White High Carbon Propeller 5627 CCW Lower Pair for DJI Agras T60X2 blades.$39.90

Propulsion Motors

Ref#PhotoPart NumberDescriptionPriceQtyAction

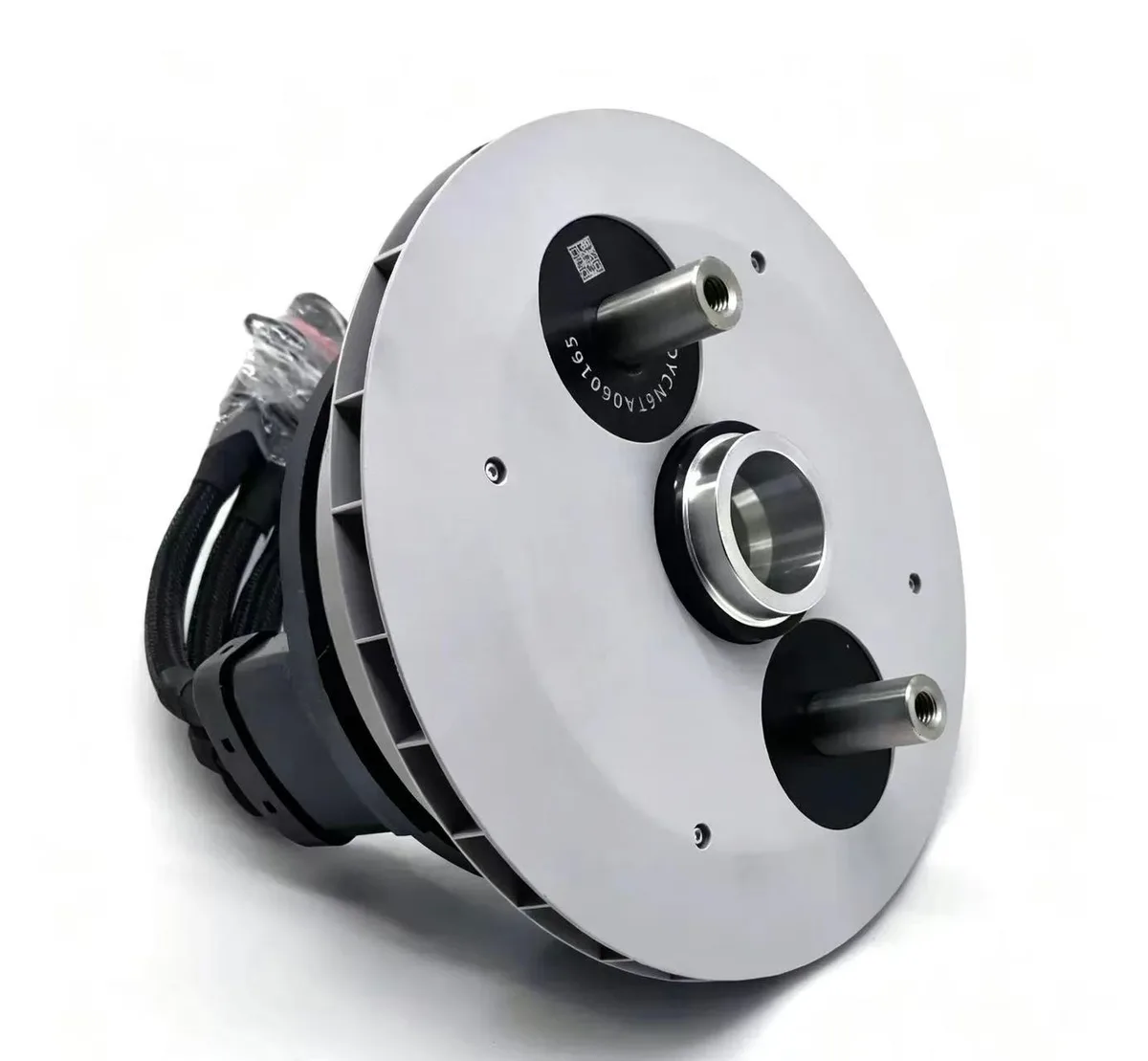

[4]TBD-T60X-MOTOR-001 Brushless Propulsion Motor 14028 83KV for DJI Agras T60X—Brushless Propulsion Motor 14028 83KV for DJI Agras T60X$149.00

ESCs

Ref#PhotoPart NumberDescriptionPriceQtyAction

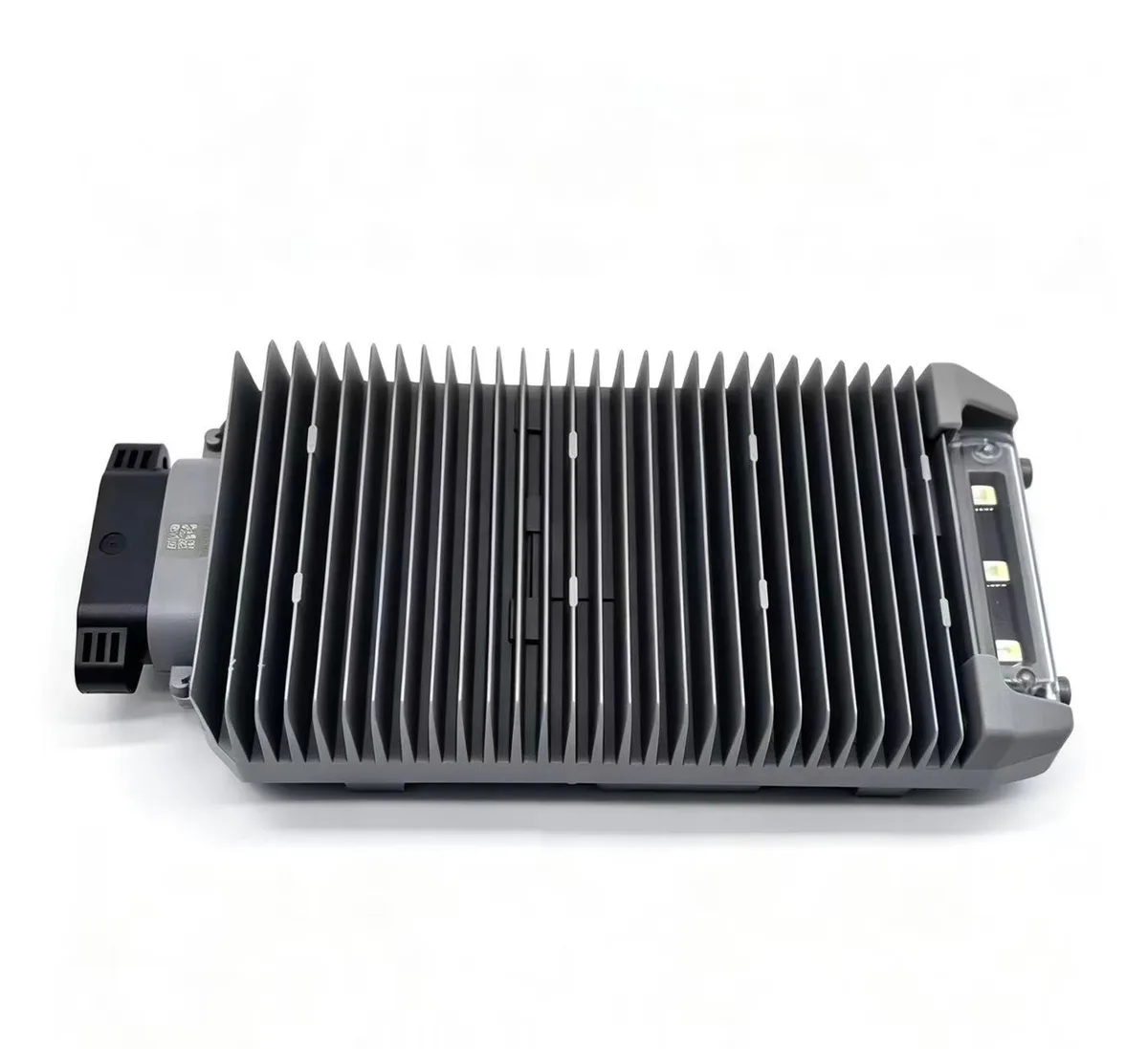

[5]TBD-T60X-ESC-001 Propulsion ESC for DJI Agras T60X—Propulsion ESC for DJI Agras T60X$85.00

Propeller Adapters & Spacers

Ref#PhotoPart NumberDescriptionPriceQtyAction

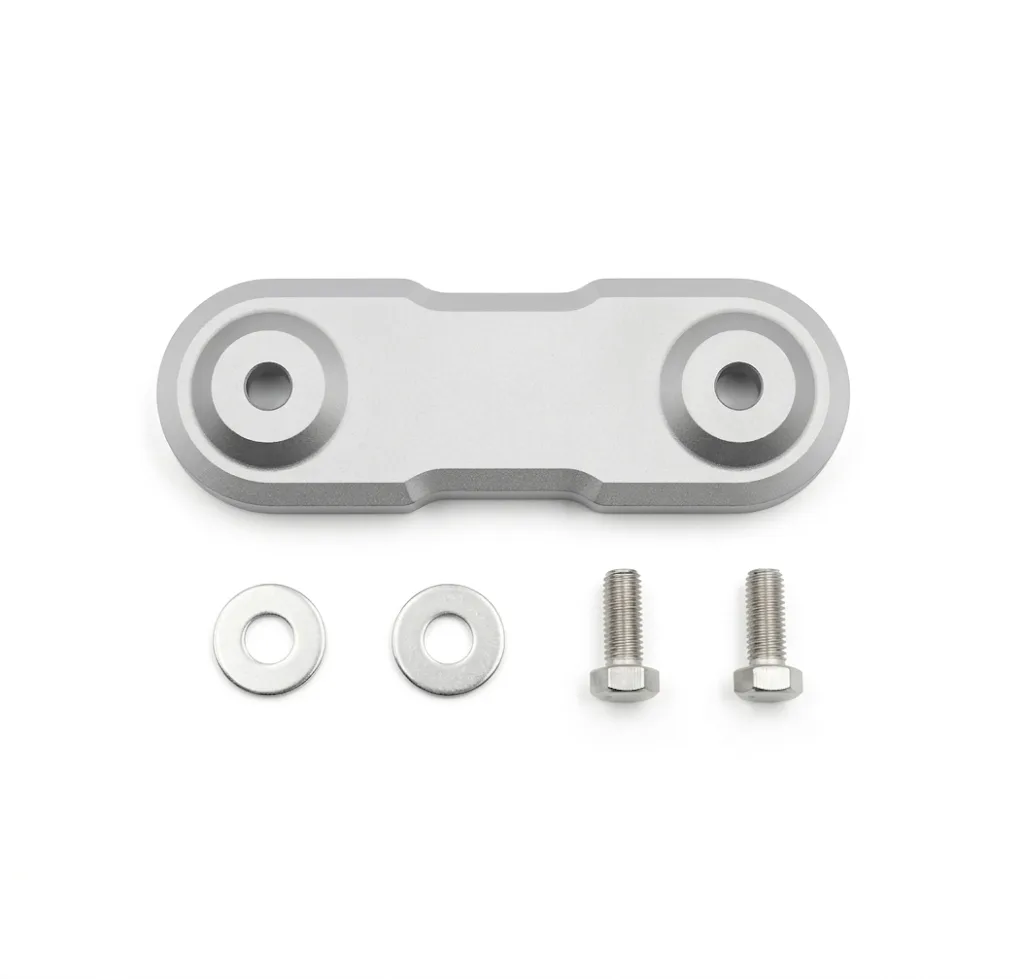

[6]TBD-T60X-CLAMP-001 Propeller Clamp for DJI Agras T60X—Propeller Clamp for DJI Agras T60X$16.90

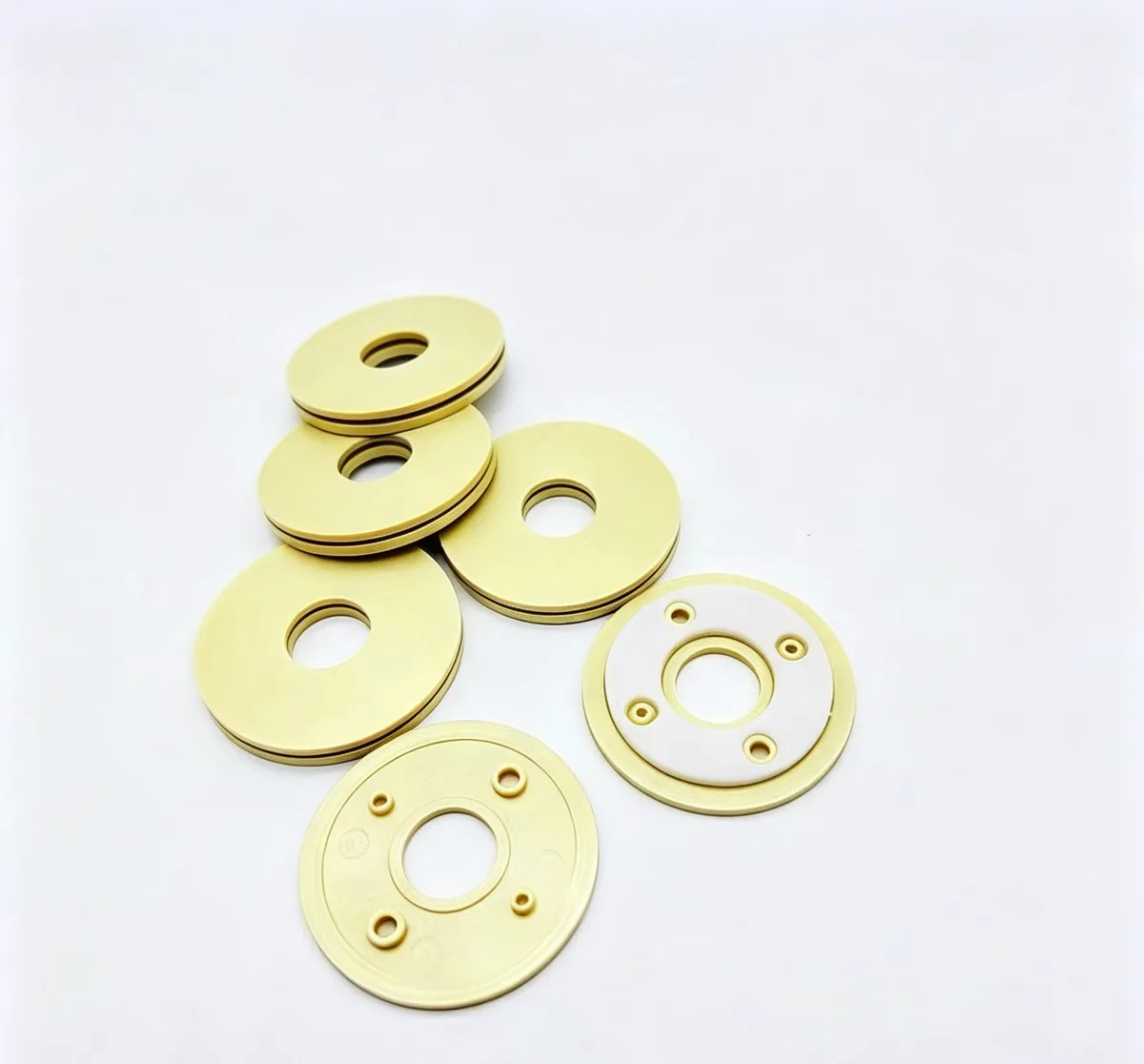

[7]TBD-T60X-WASHER-001 Propeller Clamp Sandwich Washer for DJI Agras T60X—Propeller Clamp Sandwich Washer for DJI Agras T60X16 pieces per pack.$11.50
