DJI Agras T25 Propulsion System Parts

Exploded Diagram

Propulsion SystemDiagram coming soon

Agras T25 Diagrams

Parts List

Propellers

Ref#PhotoPart NumberDescriptionPriceQtyAction
[1]—High Carbon Propeller 5018 CW Upper Pair for DJI Agras T252 blades.$28.90
[1]—High Carbon Propeller 5018 CW Lower Pair for DJI Agras T252 blades.$28.90
[1]—High Carbon Propeller 5018 CCW Upper Pair for DJI Agras T252 blades.$28.90
[1]—High Carbon Propeller 5018 CCW Lower Pair for DJI Agras T252 blades.$28.90
[6]TBD-T25-PROPELLER-002-CWU Carbon Fiber Propeller 5018 CW Upper Pair for DJI Agras T25—Carbon Fiber Propeller 5018 CW Upper Pair for DJI Agras T252 blades.$59.90

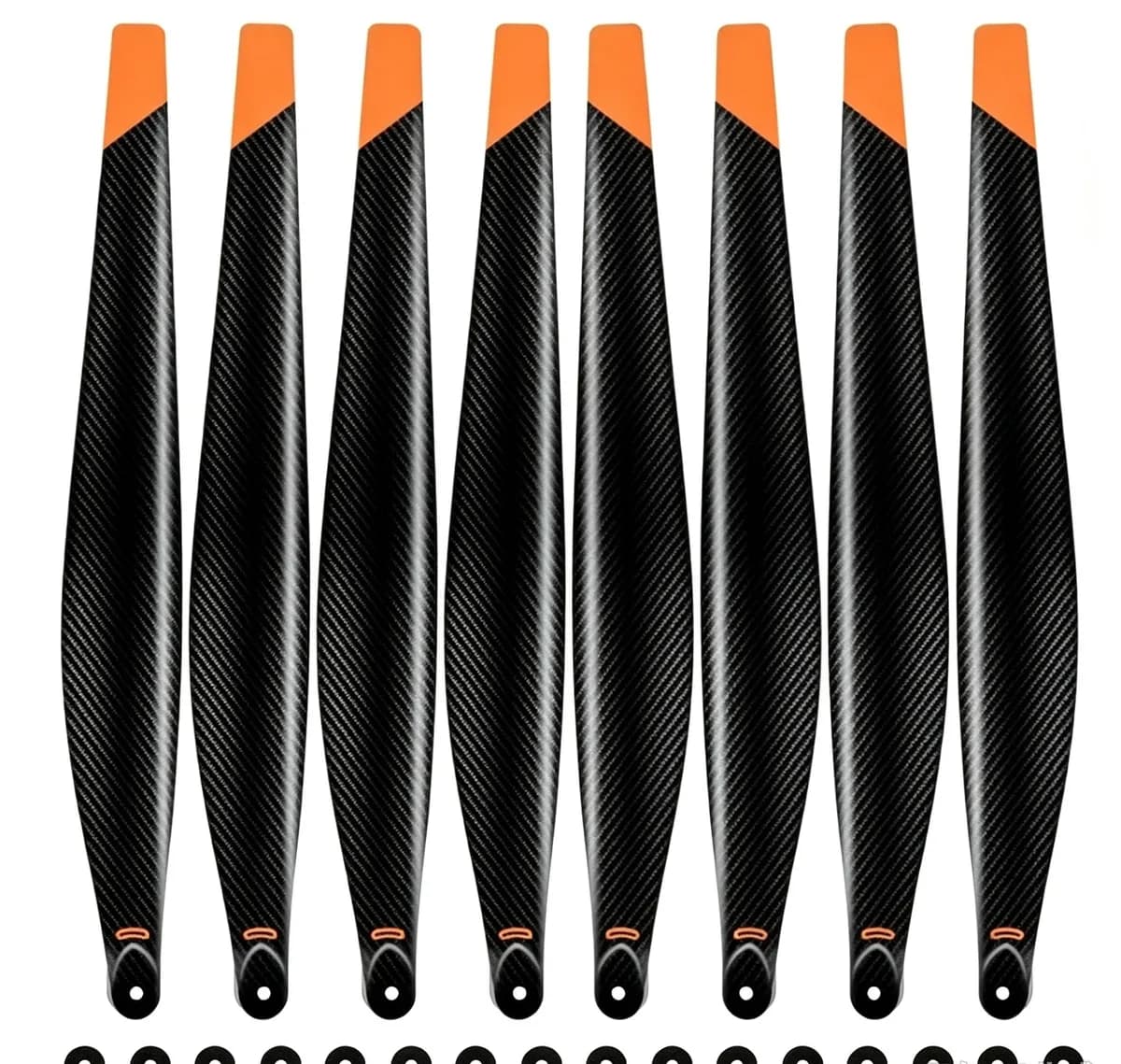

[6]TBD-T25-PROPELLER-002-CWL Carbon Fiber Propeller 5018 CW Lower Pair for DJI Agras T25—Carbon Fiber Propeller 5018 CW Lower Pair for DJI Agras T252 blades.$59.90

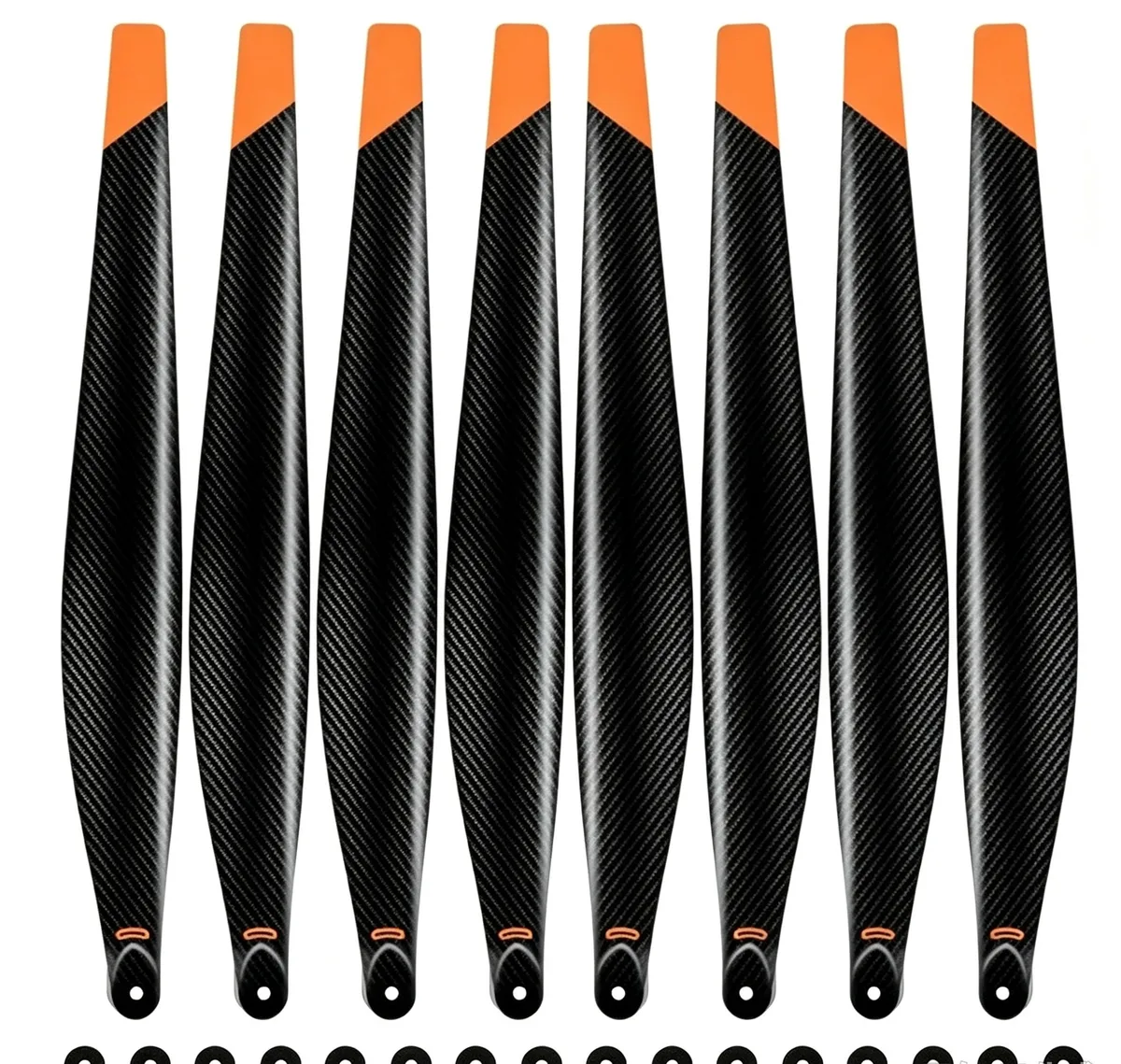

[6]TBD-T25-PROPELLER-002-CCWU Carbon Fiber Propeller 5018 CCW Upper Pair for DJI Agras T25—Carbon Fiber Propeller 5018 CCW Upper Pair for DJI Agras T252 blades.$59.90
[6]TBD-T25-PROPELLER-002-CCWL Carbon Fiber Propeller 5018 CCW Lower Pair for DJI Agras T25—Carbon Fiber Propeller 5018 CCW Lower Pair for DJI Agras T252 blades.$59.90
[7]TBD-T25-PROPELLER-003-CWU White High Carbon Propeller 5018 CW Upper Pair for DJI Agras T25—White High Carbon Propeller 5018 CW Upper Pair for DJI Agras T252 blades.$31.90
[7]TBD-T25-PROPELLER-003-CWL White High Carbon Propeller 5018 CW Lower Pair for DJI Agras T25—White High Carbon Propeller 5018 CW Lower Pair for DJI Agras T252 blades.$31.90
[7]TBD-T25-PROPELLER-003-CCWU White High Carbon Propeller 5018 CCW Upper Pair for DJI Agras T25—White High Carbon Propeller 5018 CCW Upper Pair for DJI Agras T252 blades.$31.90

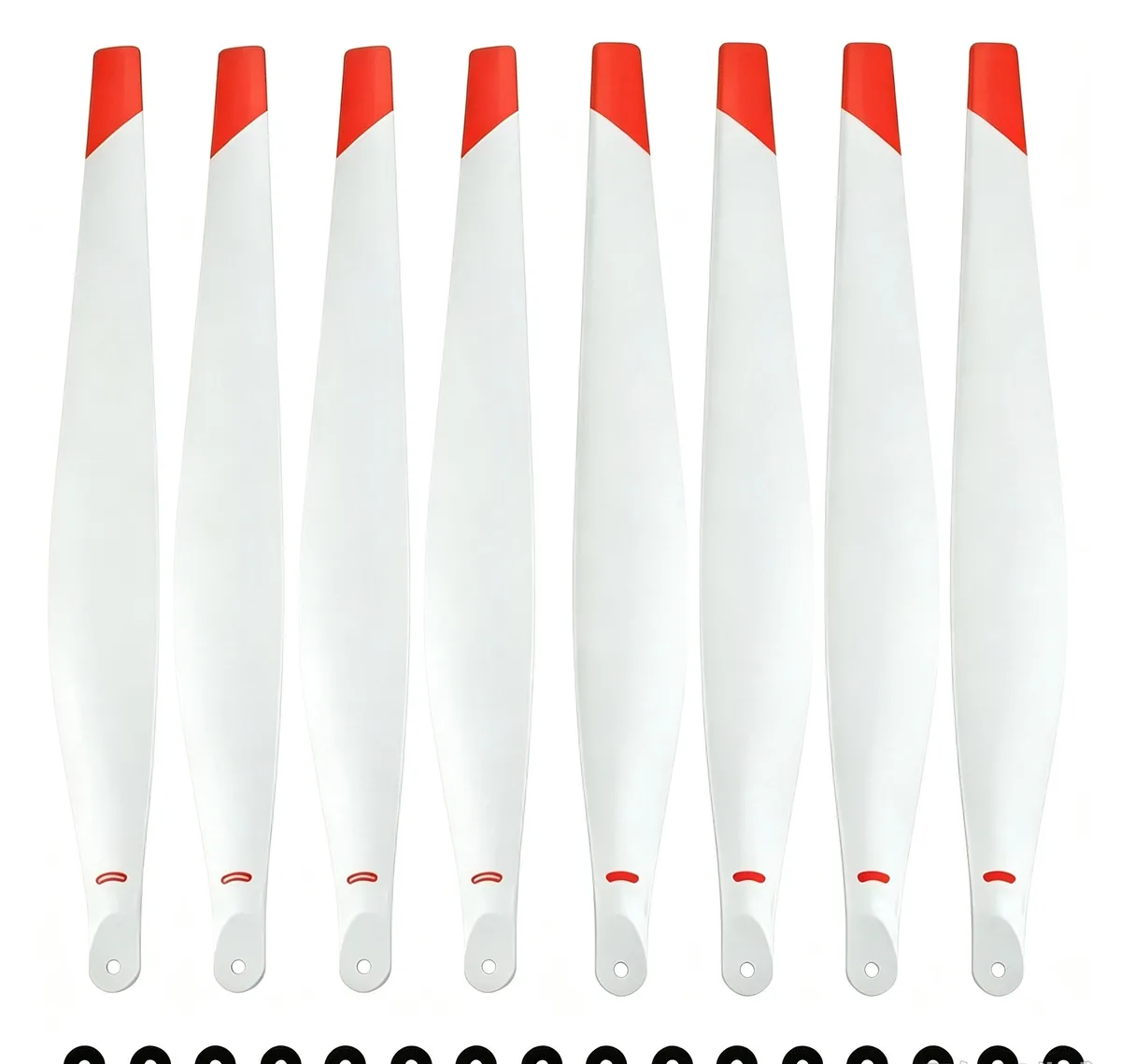

[7]TBD-T25-PROPELLER-003-CCWL White High Carbon Propeller 5018 CCW Lower Pair for DJI Agras T25—White High Carbon Propeller 5018 CCW Lower Pair for DJI Agras T252 blades.$31.90

Propulsion Motors

Ref#PhotoPart NumberDescriptionPriceQtyAction

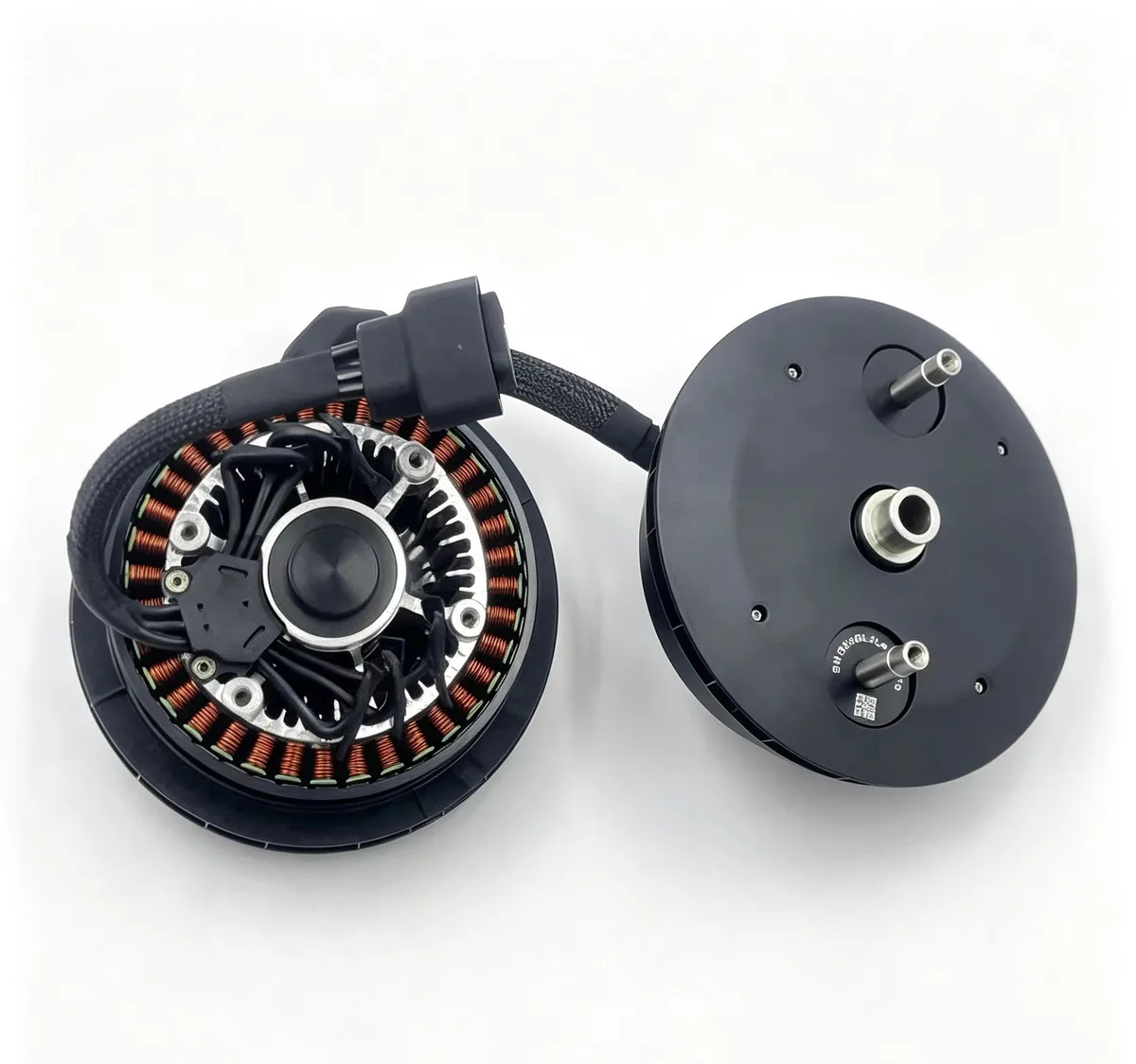

[2]TBD-T25-MOTOR-001 Brushless Propulsion Motor 10028 59KV for DJI Agras T25—Brushless Propulsion Motor 10028 59KV for DJI Agras T25$179.00

ESCs

Ref#PhotoPart NumberDescriptionPriceQtyAction

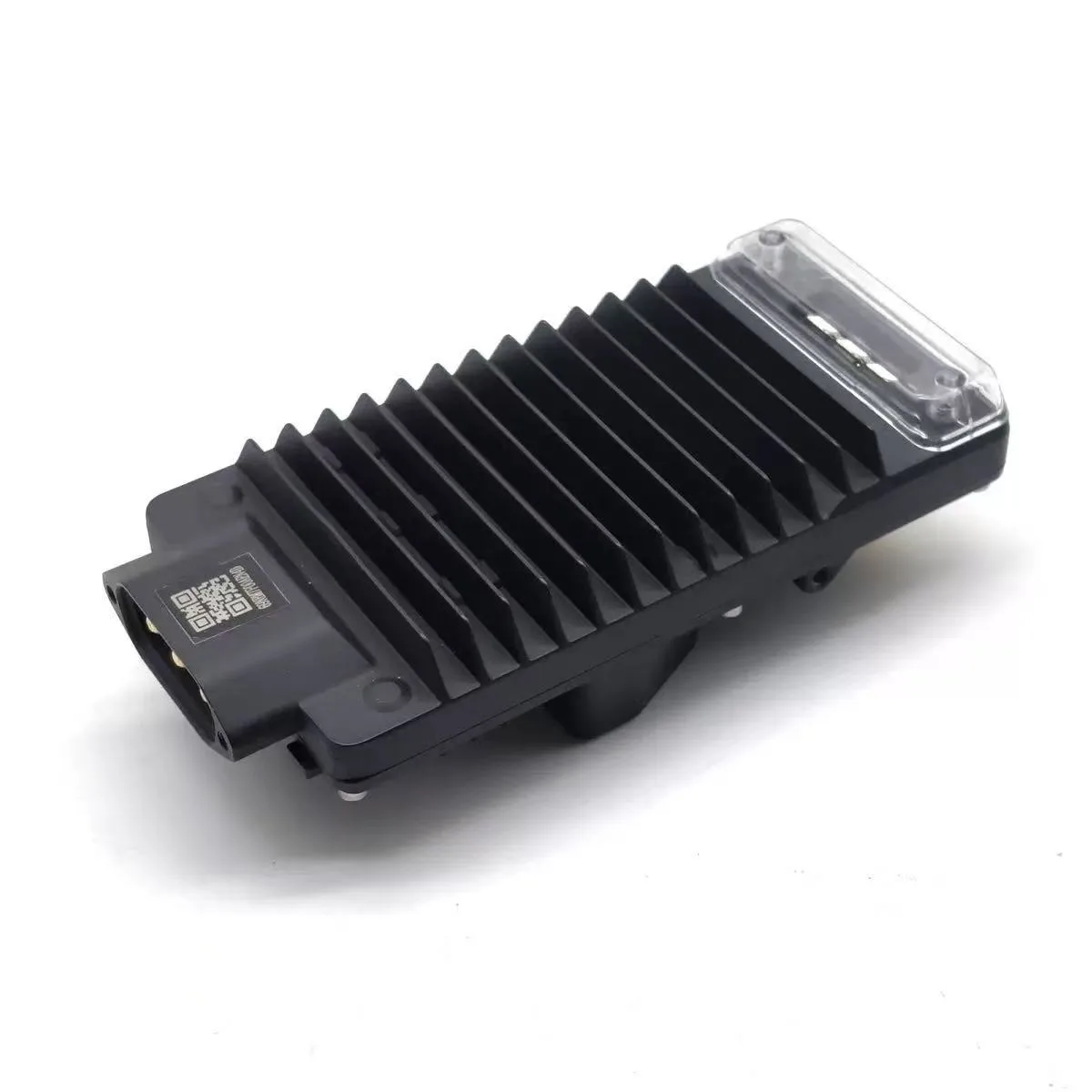

[3]TBD-T25-ESC-001 Propulsion ESC for DJI Agras T25—Propulsion ESC for DJI Agras T25$129.00

Propeller Adapters & Spacers

Ref#PhotoPart NumberDescriptionPriceQtyAction
[4]TBD-T25-CLAMP-001 Lower Anti-Loosening Propeller Clamp for DJI Agras T25—Lower Anti-Loosening Propeller Clamp for DJI Agras T25$13.90

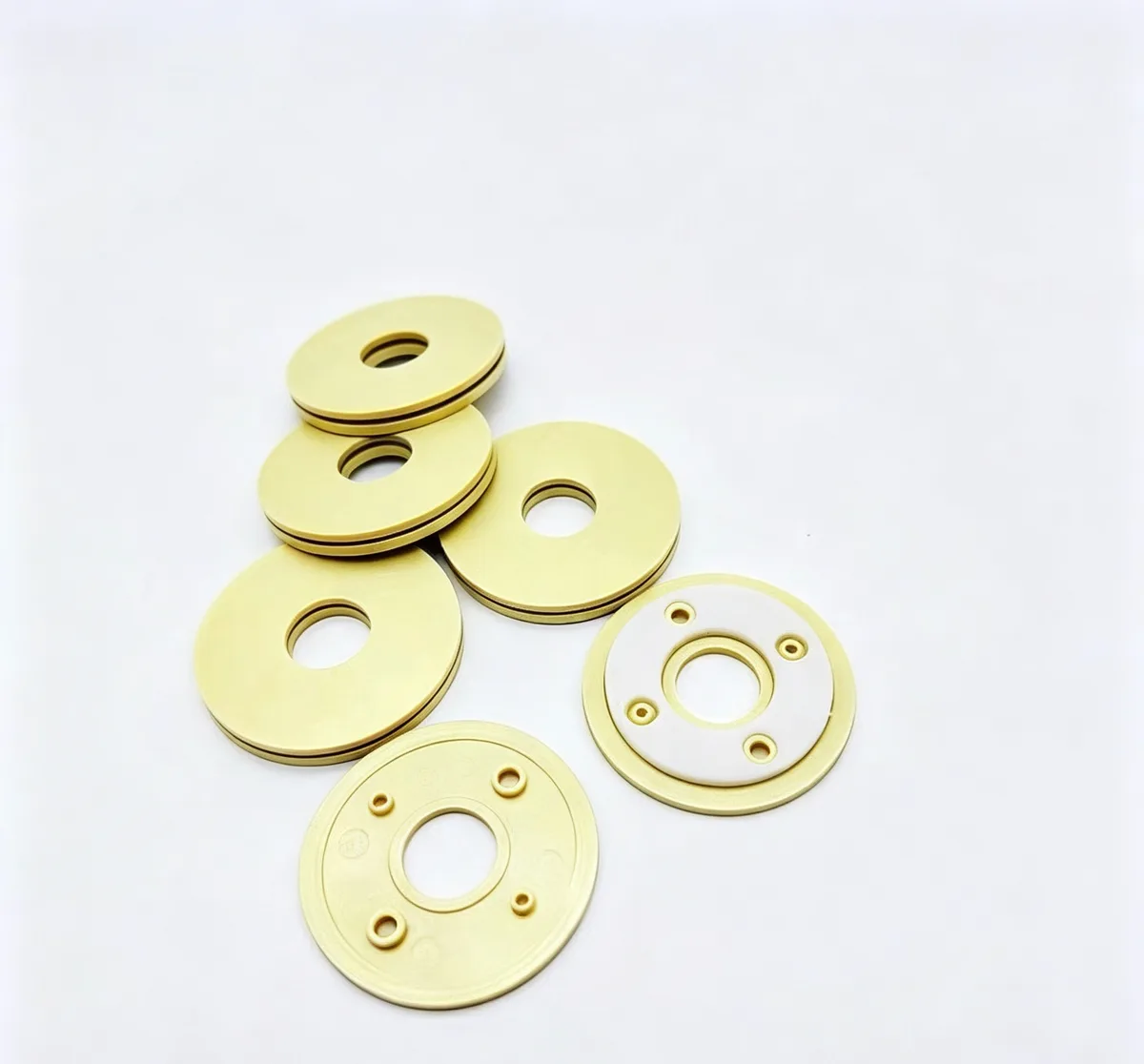

[5]TBD-T25-WASHER-001 Propeller Clamp Sandwich Washer for DJI Agras T25—Propeller Clamp Sandwich Washer for DJI Agras T2516 pieces per pack.$8.90

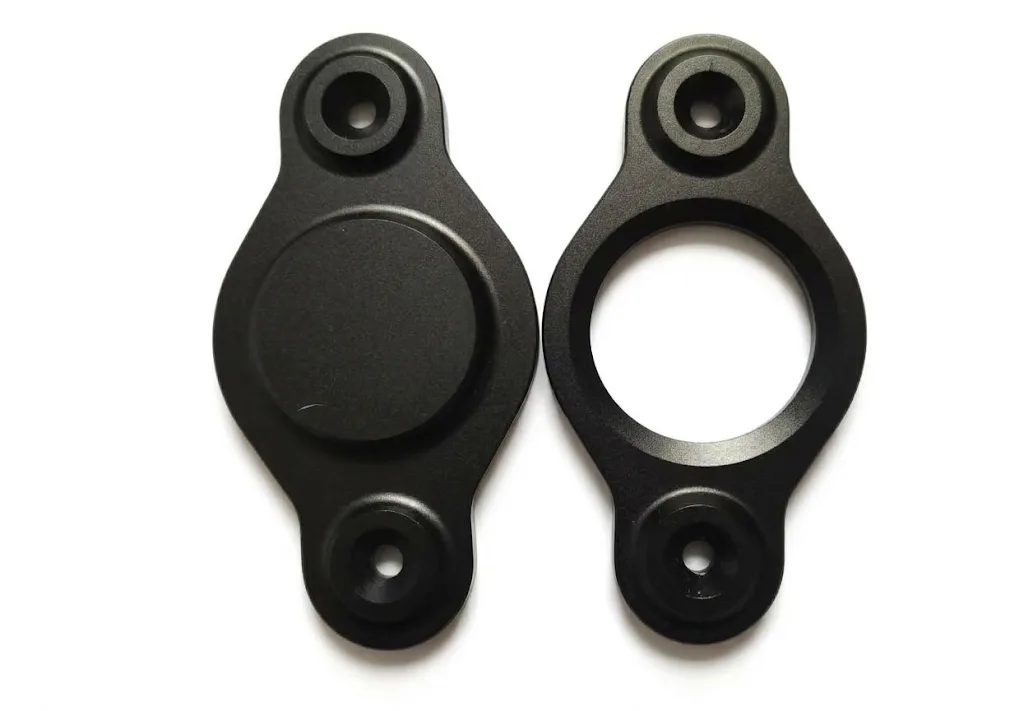

[8]TBD-T25-CLAMP-002 Upper Anti-Loosening Propeller Clamp for DJI Agras T25—Upper Anti-Loosening Propeller Clamp for DJI Agras T25$13.90
