DJI Agras T100 Propulsion System Parts

Exploded Diagram

Propulsion SystemDiagram coming soon

Agras T100 Diagrams

Parts List

Propellers

Ref#PhotoPart NumberDescriptionPriceQtyAction
[6]TBD-T100-PROPELLER-002-CWU Carbon Fiber Propeller 6223 CW Upper Pair for DJI Agras T100—Carbon Fiber Propeller 6223 CW Upper Pair for DJI Agras T1002 blades.$88.90

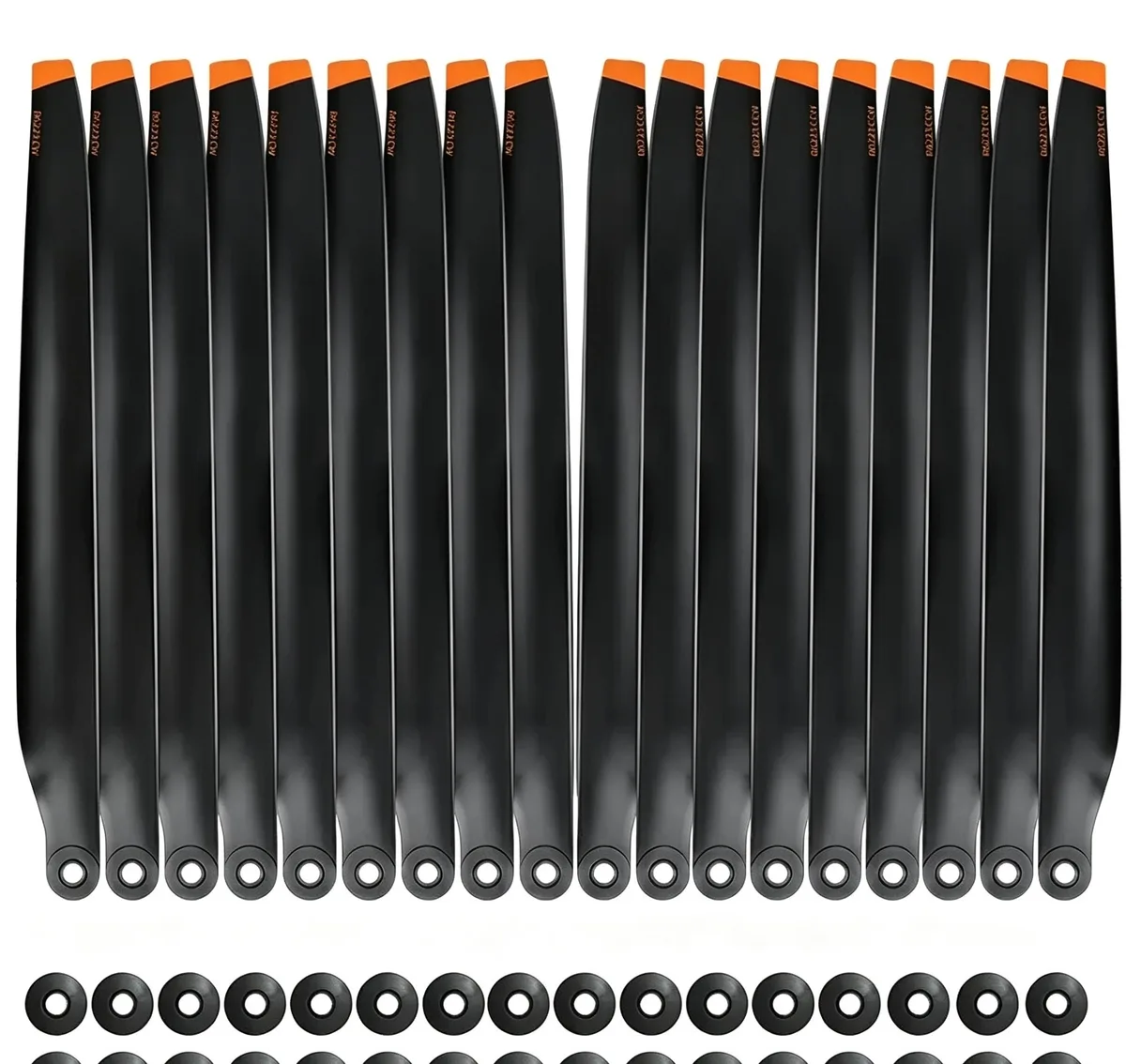

[6]TBD-T100-PROPELLER-002-CWL Carbon Fiber Propeller 6223 CW Lower Pair for DJI Agras T100—Carbon Fiber Propeller 6223 CW Lower Pair for DJI Agras T1002 blades.$88.90
[6]TBD-T100-PROPELLER-002-CCWU Carbon Fiber Propeller 6223 CCW Upper Pair for DJI Agras T100—Carbon Fiber Propeller 6223 CCW Upper Pair for DJI Agras T1002 blades.$88.90
[6]TBD-T100-PROPELLER-002-CCWL Carbon Fiber Propeller 6223 CCW Lower Pair for DJI Agras T100—Carbon Fiber Propeller 6223 CCW Lower Pair for DJI Agras T1002 blades.$88.90

Propulsion Motors

Ref#PhotoPart NumberDescriptionPriceQtyAction

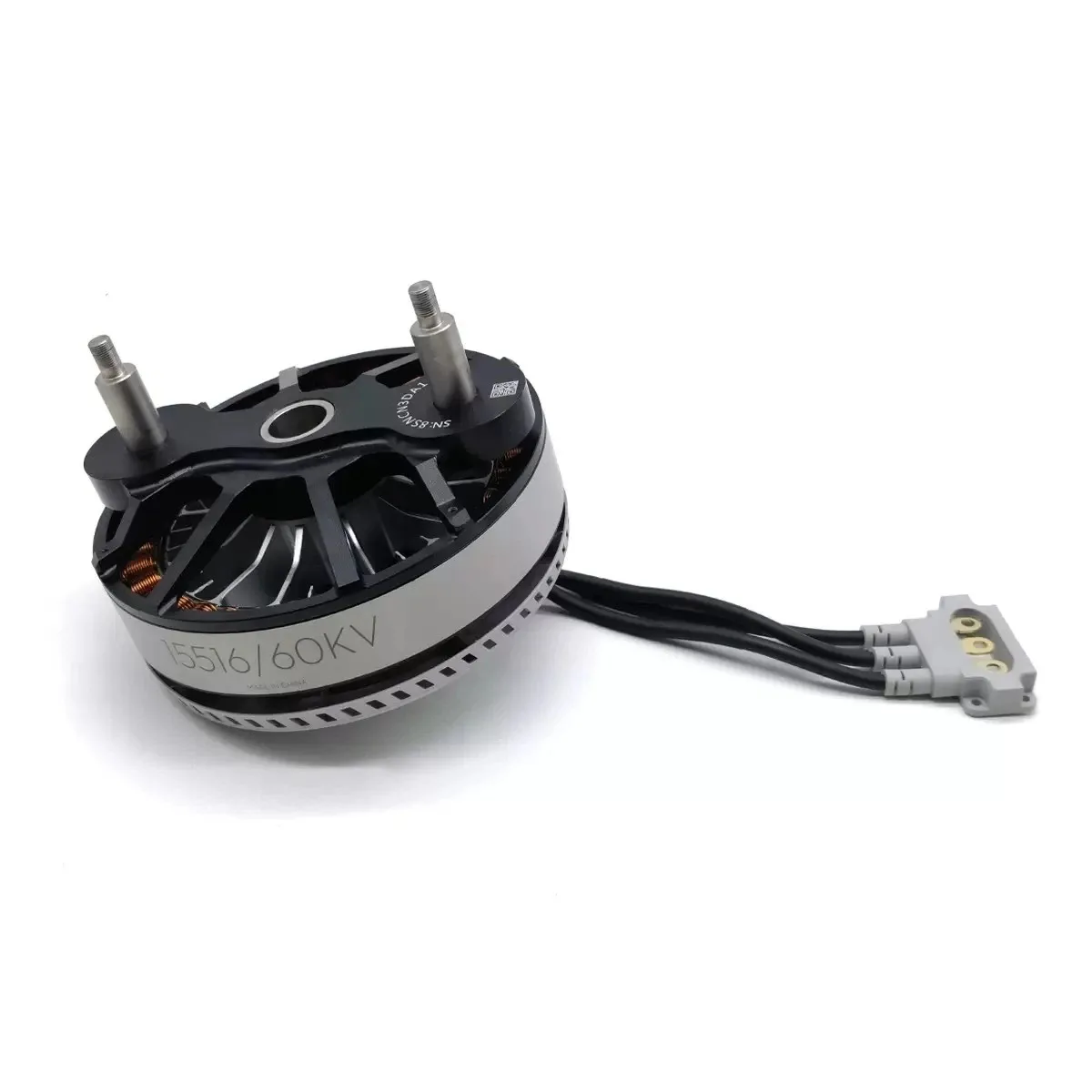

[2]TBD-T100-MOTOR-001 Brushless Propulsion Motor 15516 60KV for DJI Agras T100—Brushless Propulsion Motor 15516 60KV for DJI Agras T100$219.00

ESCs

Ref#PhotoPart NumberDescriptionPriceQtyAction

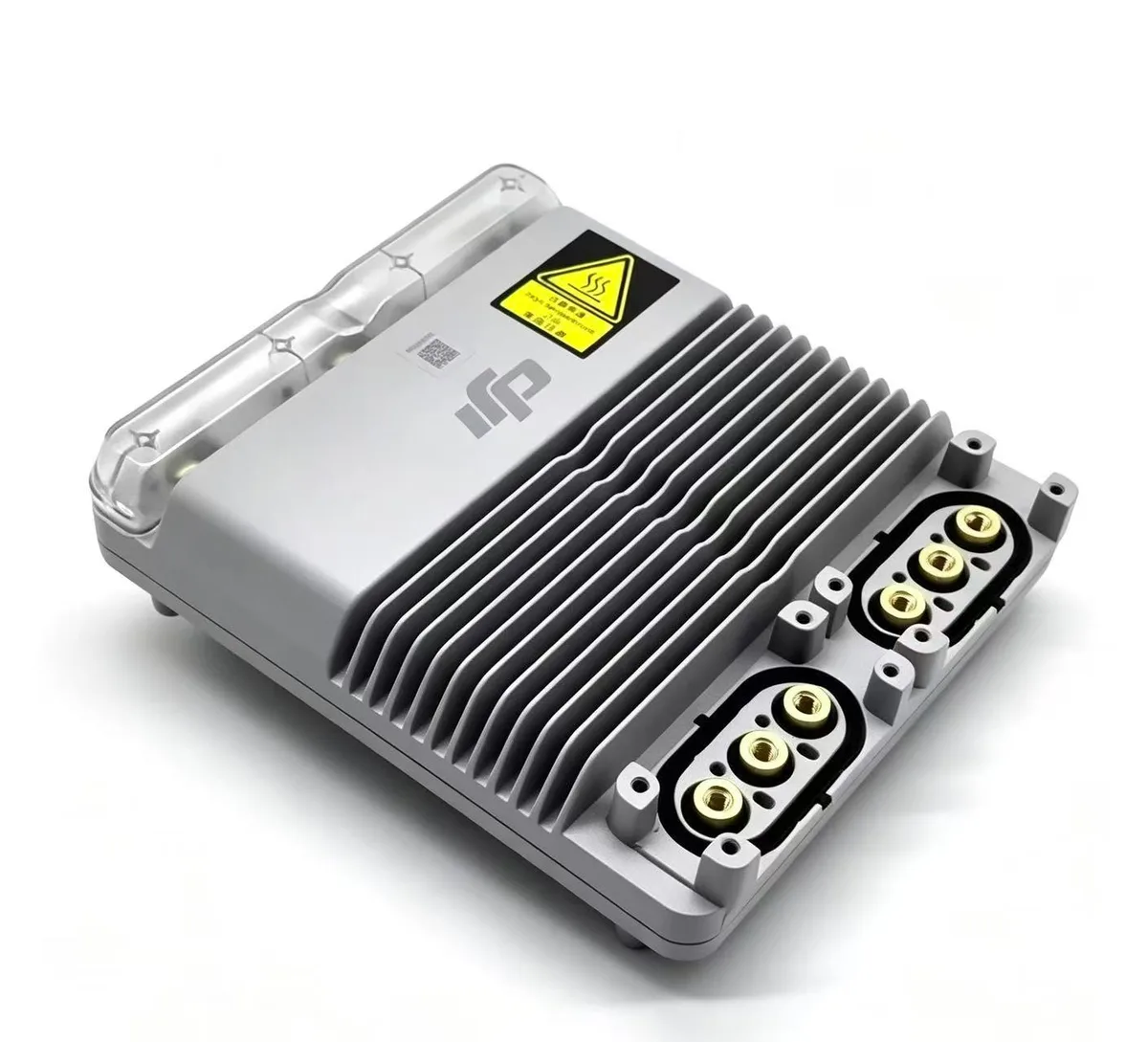

[3]TBD-T100-ESC-001 Propulsion ESC for DJI Agras T100—Propulsion ESC for DJI Agras T100$115.00

Propeller Adapters & Spacers

Ref#PhotoPart NumberDescriptionPriceQtyAction

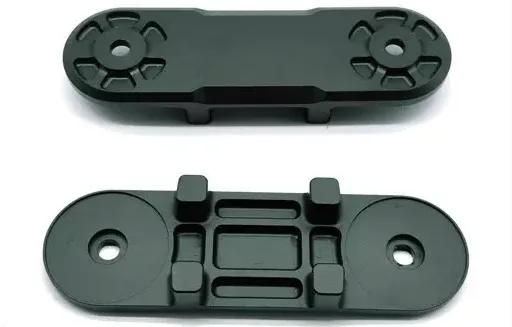

[4]TBD-T100-CLAMP-001 Propeller Clamp for DJI Agras T100—Propeller Clamp for DJI Agras T100$31.90

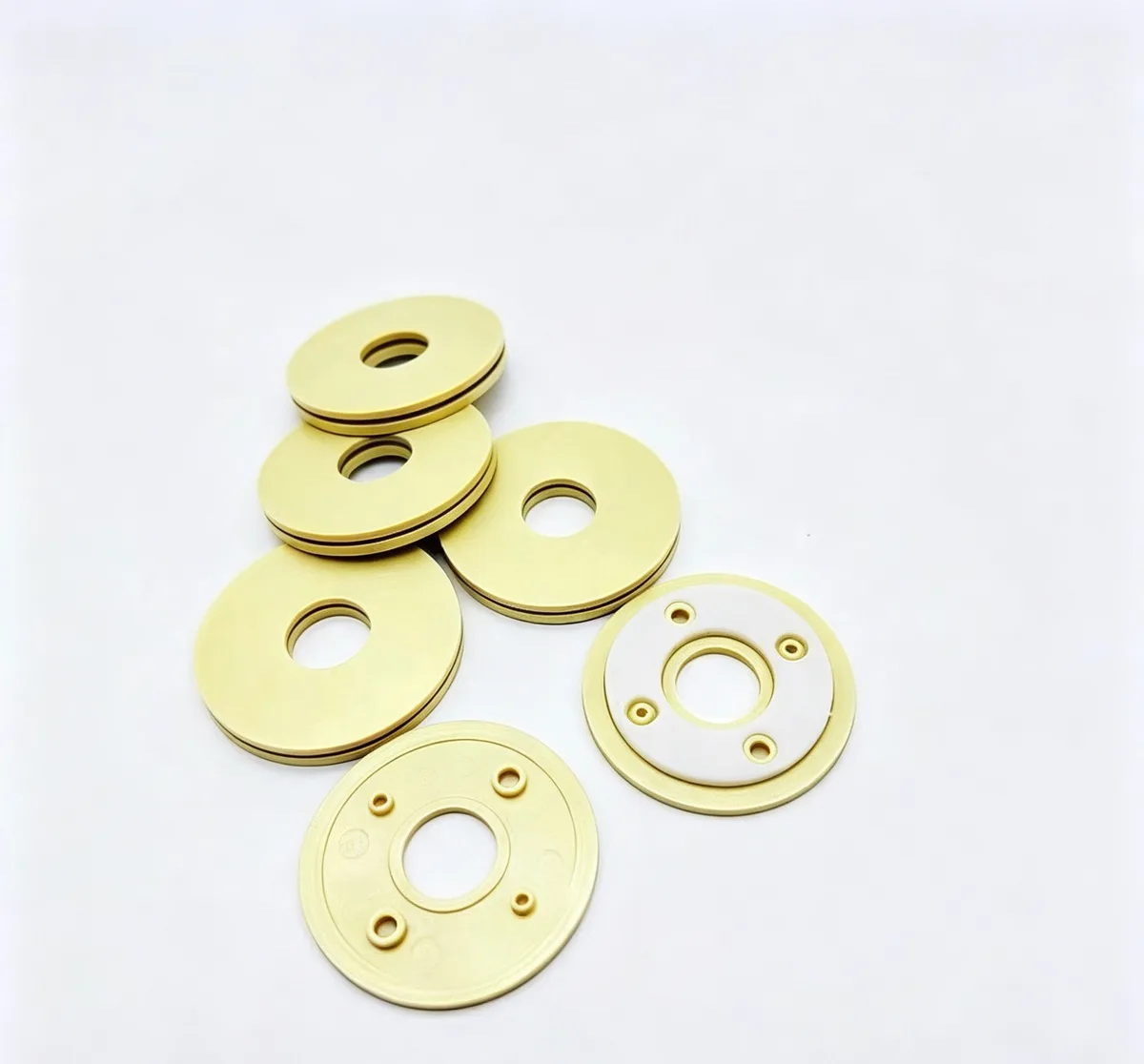

[5]TBD-T100-WASHER-001 Propeller Clamp Sandwich Washer for DJI Agras T100—Propeller Clamp Sandwich Washer for DJI Agras T10016 pieces per pack.$11.50
